- Type:Super Flux LED
- Place of Origin:CN;GUA
- Color Temperature:2000k-25000k
- Color Rendering Index(Ra):80
- Brand Name:YLL
- Model Number:5 mm pirnaha super flux
- Power Dissipation:0
- Luminous Flux(lm):10000-15000mcd
- Luminous Intensity:10000-15000mcd
- Storage Temperature(℃):-30 - 80
- Optical Attenuation(%):2
- Viewing Angle(°):90
- Chip Material:InGaN
- Certification:CE
- Certification:RoHS
- Emitting Color:Warm White
- Operating Temperature(℃):-40 - 100
- Power:0.5W

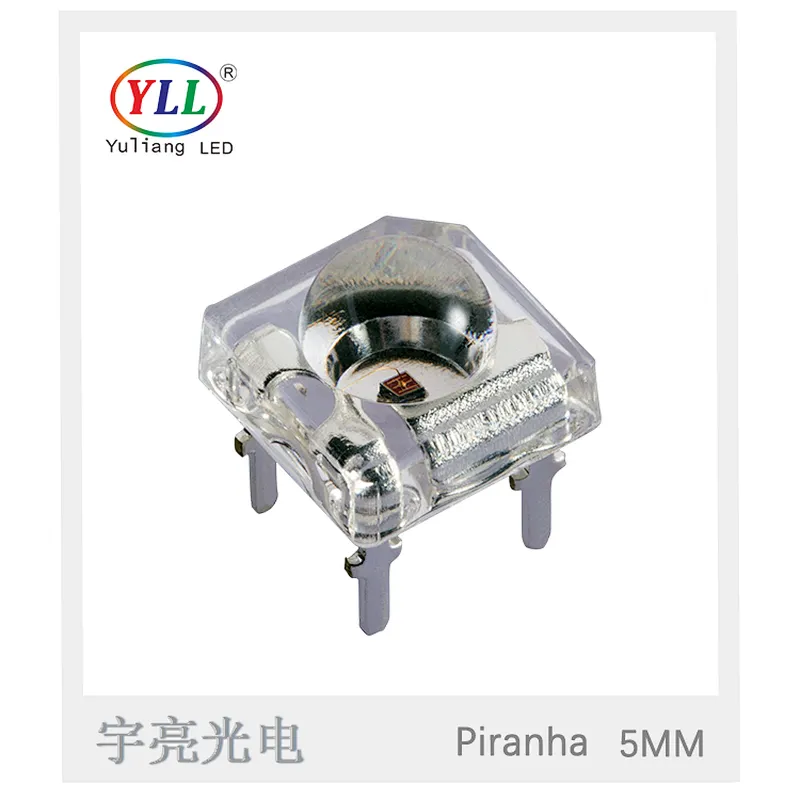

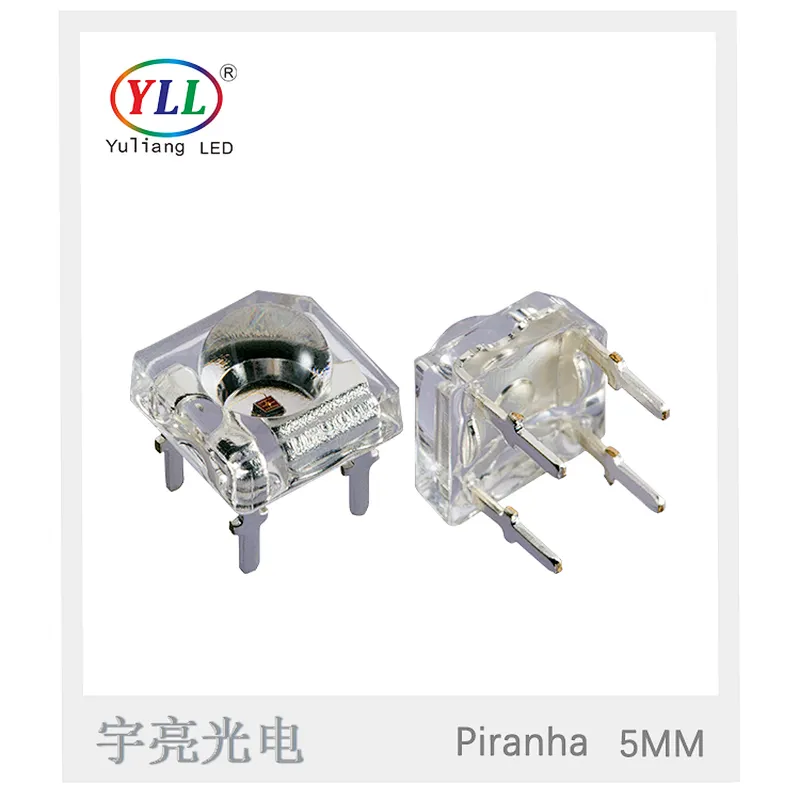

yuliang led epistar chip superflux led 5mm/3mm piranha led red/yellow/blue/green/white
Product Introduction
Quanlity and high brightness Piranha led 5mm Super flux led | |
Product data | |
item | Quanlity and high brightness Piranha led 5mm Super flux led |
Emitting Color | warm white |
Wavelength | 2000-25000k |
Luminous flux | 30-45lm |
CRI | 80Ra |
View Angle | 90degree |
Voltage | 3.0-3.4V |
Reverse Voltage | 5V |
Current | 150mA |
Lifespan | 50000 hours |
Warranty | 2 Years |
diameter | 5mm |
Feature | |
High intensity Polygonal LED lamp F5 MM round shape UV resistant epoxy
| |
Application | |
LED lighting Automotive Lighting application Advertising industry Car light | |
Notes

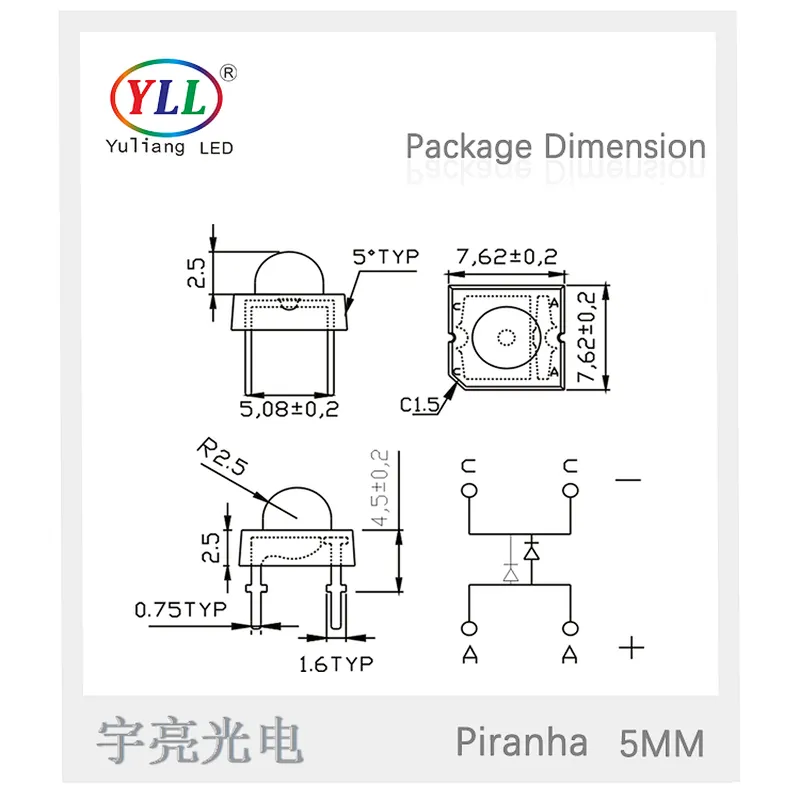

All dimensions are in millimeters (inches).
Tolerance is ± 0.25mm (.010”) unless otherwise noted.
Protruded resin under flange is 1.0mm(.04”) max.
Lead spacing is measured where the leads emerge from the package.
Specifications are subject to change without notice.
Absolute Maximum Ratings at TA=25℃
Optical Characteristics
Product application:
1,According to the US Energy Star standard IES LM-80
chip production is mainly from international companies (EPISTAR, CREE, OSROM), we have strengthened the integration of supply chain resources to do incoming inspection, process specifications, complete shipment inspection processes, and strive to assure product customers.
2,Outdoor lighting source research and development
continue to provide innovative LED lamp for outdoor LED light industry, 5050 has been a successful mass protruding headlights beads, 5050RGBW lamp beads, 5050RGB lamp beads, lamp beads high was 5054,"three defenses"series 5050 lamp beads.
3,we serve industry more than 10 years of car lights
car tail lights, brake lights, turn signals and so many well-known international brands, successfully developed the"Little Red Riding Hood"series 3528 projection headlights beads, bullet piranha light beads, big feet piranhas lamp beads, full-color RGB piranha lamp beads.
Our Partner
Shenzhen Yu Liang Optoelectronic Technology Co., Ltd. was established in 2001, is a national high-tech enterprises. Factory is mainly engaged in research and development, production and sales of ultra high brightness red, yellow, orange, blue, green, purple, pink, light, white light, warm white, golden yellow light RGB to RGBW such as a full range of single core piranha led, multi core piranha led, power 0.5W led piranha, and SMD series 3014 side luminous, 3014,3528, 2735,5730,5050 SMD LED lamp beads, widely used in LED lamp, LED outdoor lamps, indoor lighting, commercial lighting, LED light source field advertising logo.Factory has the world's leading automatic LED packaging production line, more than 10 LED industry over ten years of experience in engineering and technical personnel and senior management, modern LED packaging workshop area of more than 6000 square meters, with scientific management, excellence, customer trust for the company's quality policy, and continuously meet customer demand LED series of products.
1.R & D strength:
We have more than 20 professional lamp R & D engineers, independent of the LED packaging laboratory, can achieve high and low temperature thermal shock test, anti sulfuration, moisture test, constant temperature and humidity, lm-80 standards 6000H continuous decay test etc., the products have been patent number 30.
2.Production strength
3.Technical strength:
Pioneered the use of SMD beads secondary packaging technology realize 3528 convex head series (50-60 degrees) and 5050 convex head series (160-180 degrees) into mass production.
4.Quality Assurance:
Company in strict accordance with the ISO9001:2008 quality management system operation, the white light district in strict accordance with the U.S. Energy Star LM-80 IES standard production, a variety of products have passed the US. Energy Star LM-80 IES test, SGS, ROHS, EN62471 and other certification.
5.Yu Liang commitment:
We promise customers purchasing conventional color temperature products long-term stable supply of a bin, sampling in accordance with customer delivery is completed within 3 days, 5-7 days of completing the small batch orders, conventional products are completed within 1-2 days, response within 24 hours of customer complaint, timely, efficient handling of a series of problems faced by customers.
