- Type:Super Flux LED
- Place of Origin:CN;GUA
- Color Temperature:620-630nm
- Color Rendering Index(Ra):80
- Brand Name:YLL
- Model Number:5mm Piranha Led Super Flux
- Power Dissipation:0.06
- Luminous Flux(lm):2000-3000mcd
- Luminous Intensity:2000-3000mcd
- Storage Temperature(℃):-40 - 100
- Optical Attenuation(%):3
- Viewing Angle(°):90
- Chip Material:InGaN
- Certification:CE
- Certification:RoHS
- Emitting Color:Red
- Operating Temperature(℃):-30 - 80
- Power:0.06w

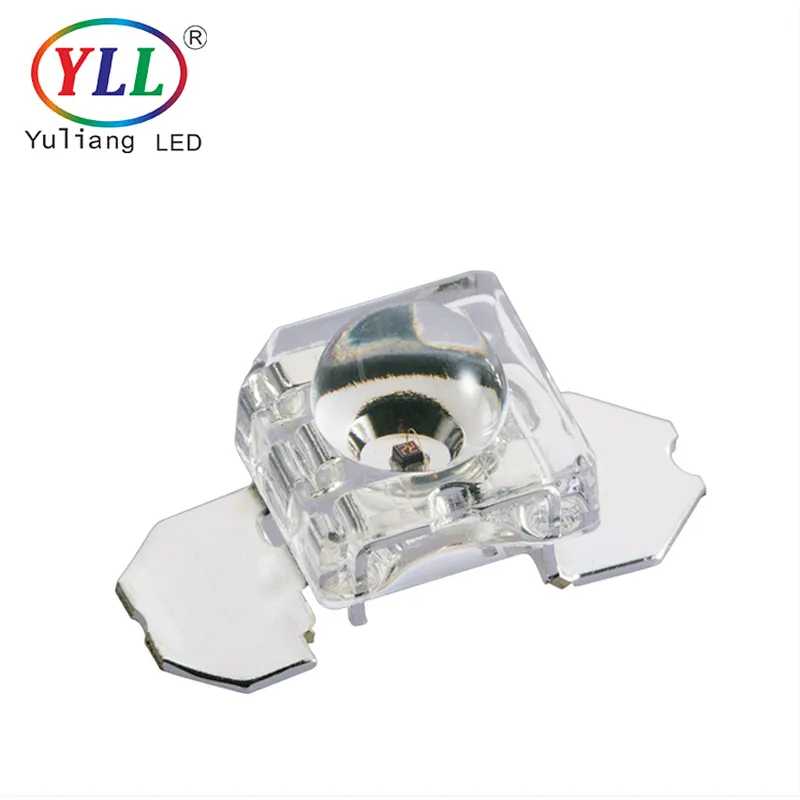

Taiwan Epistar chip 5mm Super Flux Piranha LED
| Product Type | 5MM Piranha LED |
| Emitting Color | Red |
| Voltage | 1.8-2.2v |
| Wavelength | 620-630nm |
| Brightness | 2000-3000mcd |
| Current | 20mA |
| Beam Angle | 90° |
| Life Span | 50000hours |
| Warranty | 2 years |
Features:
* High intensity Polygonal LED lamp
* 5MM round shape
* UV resistant epoxy
Applications:
* LED Lighting
* Automotive Lighting application
Package Dimensions:
Absolute Maximum Ratings at TA=25°C
Electrical/Optical Characteristics at TA=25°C
BIN Table(Test at 20mA)
Caution in ESD:
1.Static electricity and surge damages the LEDs. It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs. All devices,equipment and machinery must be properly grounded.
2.When inspecting own final products on which LEDs were mounted. It is easy to find static damaged LEDs by light emission test at lower current (below 1mA is recommended).
3.Damaged LEDs will show some unusual characteristics such as leak current remarkably increases, starting forward voltage becomes lower, or the LEDs get unlighted at the low current.
Reliability Test
Shipment:
Shipment by Express: DHL,UPS,FEDEX,we working wth their for more than 5 years,so we can get the best price with best service.
Shipment by Air: considering the expensive international freight,shipment by air is a good choice if the goods more than 100KG,note:it is door to airport,you need pick up the goods at airport.
Shipment by Sea: It is cheapest shipment way,people always choose it when the goods weight more than 1-2CBM at least,it is door to port,you have to pick up the goods at port.
Shenzhen YuLiang Optoelectronic Technology Co., Ltd was established in 2001, is a national high-tech enterprise. Factory is mainly engaged in R&D, production and sales of ultra high brightness red, green, blue, yellow, orange, purple, pink, white, warm white, golden yellow, RGB, RGBW etc, a full range of single core piranha led, multi core piranha led, 0.5W piranha led, and SMD series 3535,3014 side view, 3014,3528, 2835,5730,5050,5060 SMD LED lamp beads, widely used in LED auto lamp, LED outdoor lamps, indoor lighting, commercial lighting and LED advertising logo light source field.
Q1. Can I have a sample order for Super Flux LED?
A:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Samples need 3-5 days, mass production time needs 1-2 weeks.The actual time is determined by your quantity.
Q3. Do you have any MOQ limit for Super Flux LED order?
A: Low MOQ, 1 piece for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL,FedEx,UPS or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Super Flux LED?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Super Flux LED product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
