- Type:SMD LED
- Place of Origin:CN;GUA
- Color Temperature:Y:588-592nm R:620-630NM
- Color Rendering Index(Ra):0
- Brand Name:Yuliang
- Model Number:YLL-T35Y-DJ-01(14mil)lens
- Power Dissipation:0.1
- Luminous Flux(lm):2000-3000mcd
- Luminous Intensity:2000-3000mcd
- Storage Temperature(℃):0 - 40
- Optical Attenuation(%):0.5
- Viewing Angle(°):60
- Chip Material:AlGaInP
- Certification:CE
- Certification:RoHS
- Emitting Color:Yellow
- Operating Temperature(℃):-20 - 40
- Power:0.1w

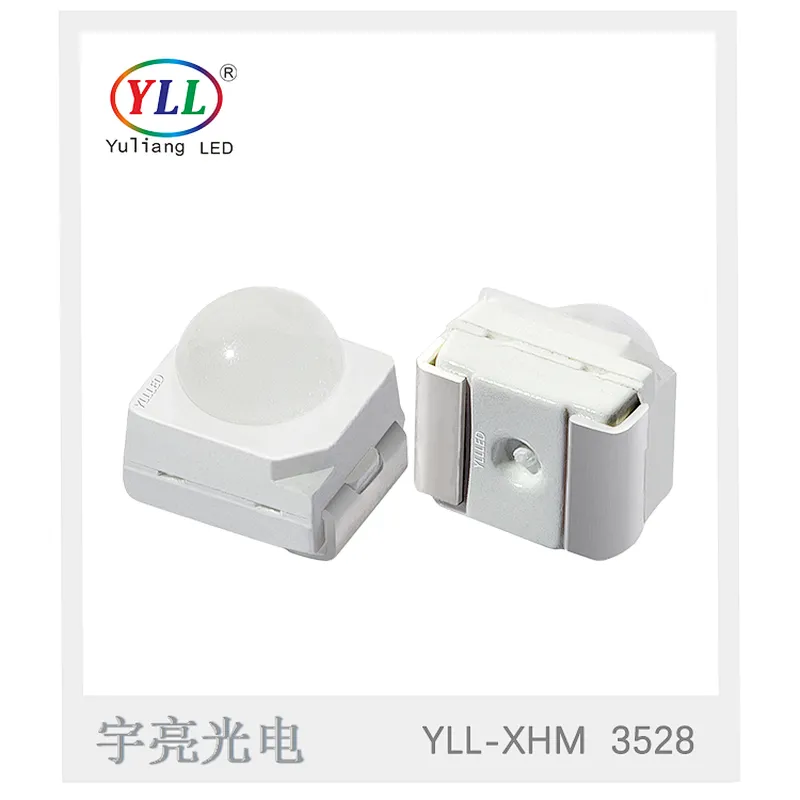

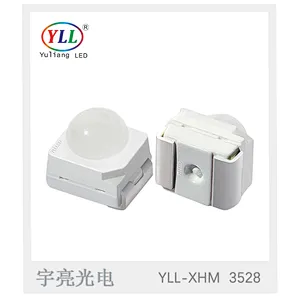

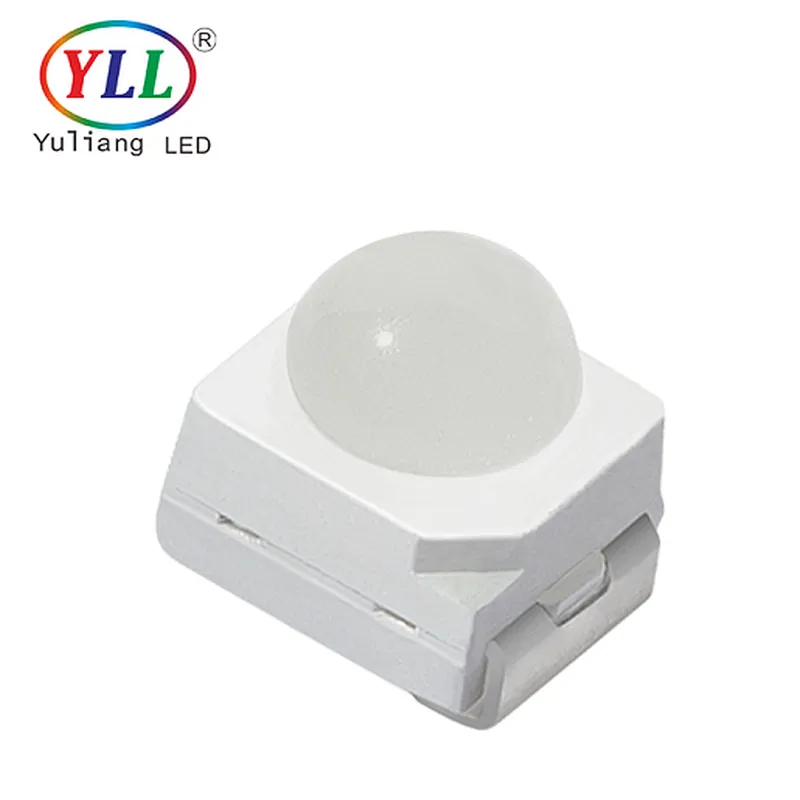

PLCC 3528 red yellow double color smd led chip with lens for car light

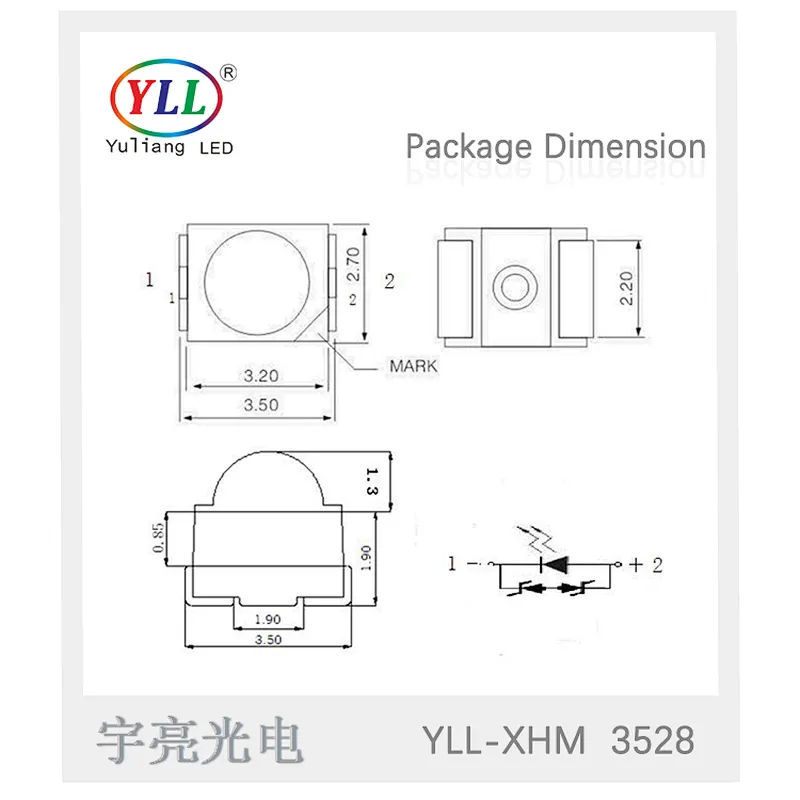

Notes
All dimensions are in millimeters (inches).
Tolerance is ± 0.25mm (.010”) unless otherwise noted.
Protruded resin under flange is 1.0mm(.04”) max.
Lead spacing is measured where the leads emerge from the package.
Specifications are subject to change without notice.
Absolute Maximum Ratings at TA=25℃
Electrical / Optical Characteristics at TA=25℃
Optical Characteristics
Product application:
Yuliang LED 3014 Side Light Emitting SMD IS WIDELY APPLYING FOR FLEXIBLE STRIP LIGHT,HARD STRIP LIGHT,LED GUARDIANCE TUBE, POINT LIGHT SOURCE,LED MODULE,OUTDOOR LIGHTING,CAR LIGHTS ETC
pictures | Features & Application | Datasheet | |
3014 LAMP BEADS SERIES | |||
| Feature: Thermo electric Separation Dead lamp-Proofing Sulfide-proofing Low impendence Application: LED Flexible strip Light LED Hard Strip Light LED Guardrail Tube LED Module LED Point Light Source LED outdoor lamps | Type: SMD LED Model Number: YLL3014 Emitting Color: 2800-3200K/4000-4500K/6000-500K/ RED/GREEN/BLUE/YELLOW Luminous Flux(mcd/LM): 400-1200mcd,8-12LM Power Dissipation: 0 Viewing Angle(°): 120 Color Rendering Index(Ra): 80 Operating Temperature(℃): 40 - 60 Storage Temperature(℃): 20 - 80 Voltage: 2.0-2.2 3.0-3.4 Place of Origin: Guangdong, China (Mainland) Brand Name: YLL LED chip: Epistar warranty: 2years service: OEM ODM are welcomed LED type: SMD3014 Package: Anti-static bag | |
