- Type:SMD LED
- Chip Material:AlGaInP
- Emitting Color:Blue
- Power:0.06W
- Place of Origin:CN;GUA
- Certification:CE
- Certification:RoHS
- Luminous Intensity:600-800mcd
- Luminous Flux(lm):600-800mcd
- Optical Attenuation(%):0.5
- Power Dissipation:0
- Viewing Angle(°):50-60
- Color Temperature:B:460-470nm
- Operating Temperature(℃):-20 - 40
- Storage Temperature(℃):0 - 40
- Brand Name:YLL

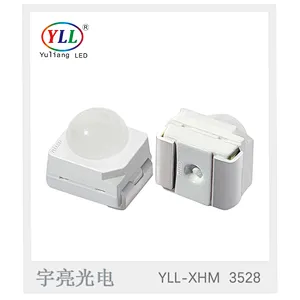

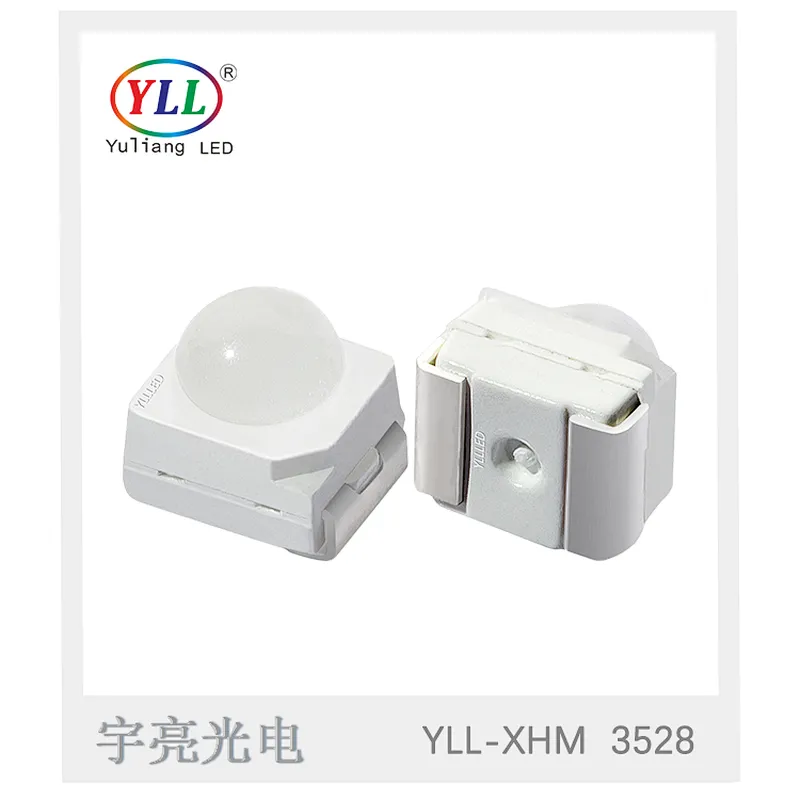

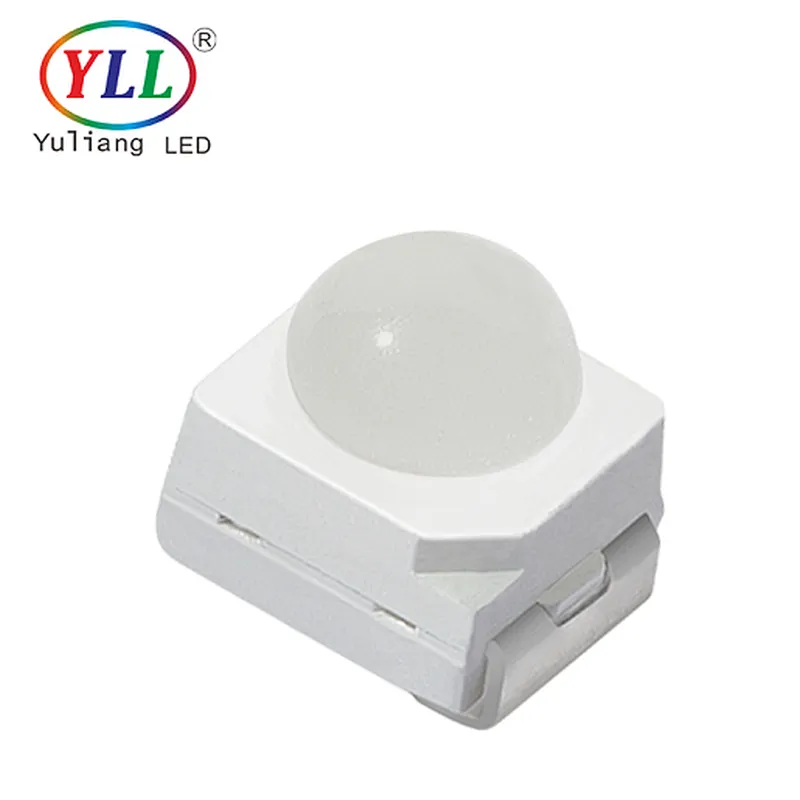

light emitting diode smd led 3528 led chip with lens
Product data | |
Emitting Color | Blue |
Wavelength | 460-470nm |
Luminous flux | 600-800mcd |
View Angle | 50-60degree |
Voltage | 3.0-3.4V |
Current | 20mA |
Lifespan | 50000 hours |
Warranty | 2 Years |

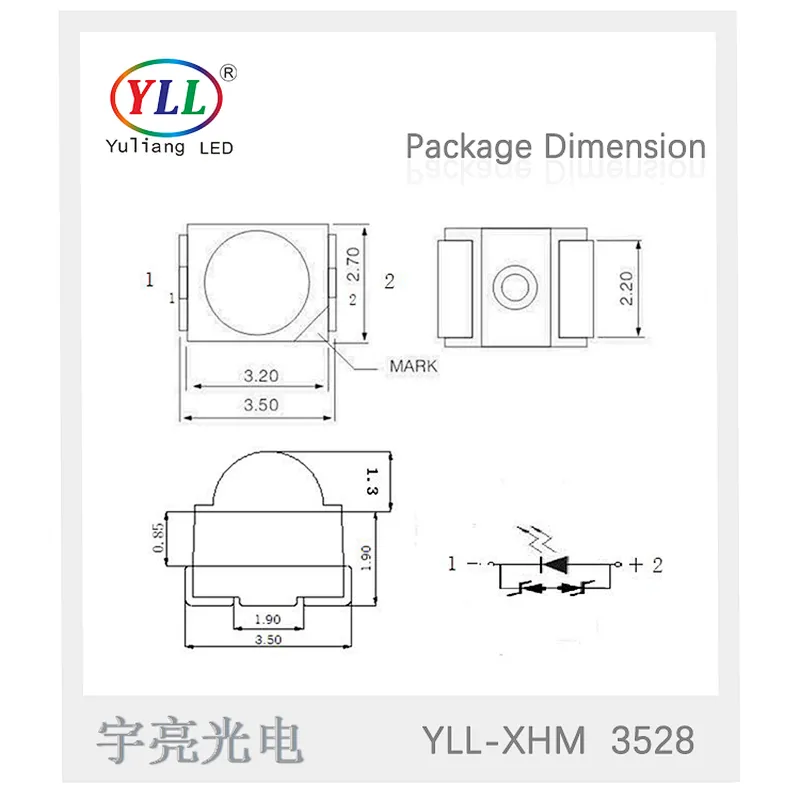

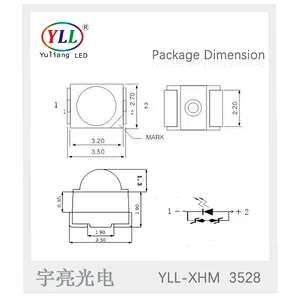

Size | 3.5*2.8*2mm |
Feature |
|
-Moisture-Proofing -Dead Lamp-Proofing -Sulfide-Proofing -Good Heat Dissipation -Low Light Decay | |
Application | |
-Flexible and Hard Strip Light -Guardrail Tube -Point Light Source -Module -LED Display | |
Absolute Maximum Ratings at TA=25℃
Electrical / Optical Characteristics at TA=25℃
Optical Characteristics
Product application
Yuliang LED 3528 Convex Head SMD is widely applying for
Outdoor Point Light Source, Fence Tube,Wall Washer Light,Line Lamp,Intelligence home lighting etc
Two-year Warranty
Return or replacement within two years if there have any defected product or malfunctioning product or broken product.
Exchange & Return Policy
1)The shipment cost should be taken by supplier if there have defected product or malfunctioning product or broken product within two years.Replacement will be sent to you in your next order if you don’t want to return.
2)0.3% free spare part for volume order,in the same time,we will give you replacement as compensation with next order if faulty product rate reach to 0.3%.
Honesty is the best policy for long time business.Quality is the bridge between YLL and you.
