- Type:Super Flux LED
- Chip Material:InGaN
- Emitting Color:Green
- Place of Origin:CN;GUA
- Certification:CE
- Certification:RoHS
- Power:0.2W
- Luminous Intensity:2000-4000mcd
- Luminous Flux(lm):7-13mcd
- Optical Attenuation(%):2
- Viewing Angle(°):120
- Color Rendering Index(Ra):80
- Color Temperature:515-525nm
- Brand Name:YLL

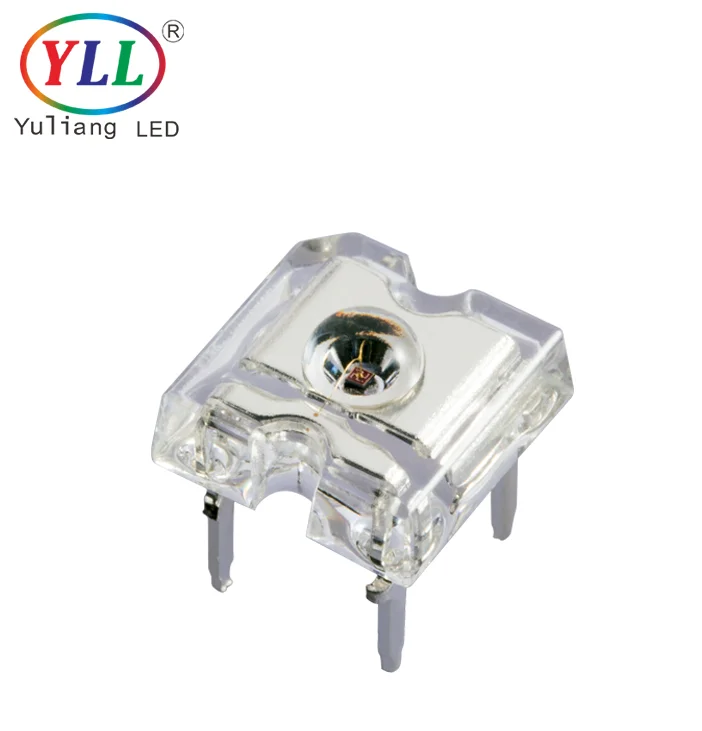

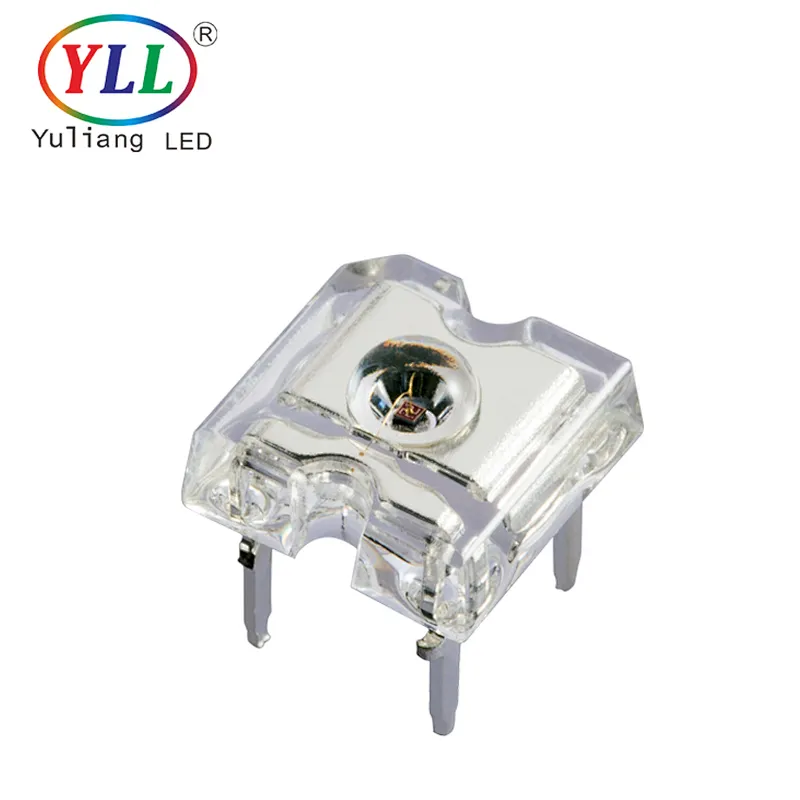

piranha led 3 mm CE ,RoHS 2 years warranty 5mm 7mm piranha super flux
Product Introduction
piranha led 3 mm CE ,RoHS 2 years warranty 5mm 7mm piranha super flux | |
Product data | |
item | piranha led 3 mm CE ,RoHS 2 years warranty 5mm 7mm piranha super flux |
Emitting Color | green |
Wavelength | 515-525nm |
Luminous flux | 2000-4000mcd |
CRI | 70Ra |
View Angle | 120degree |
Voltage | 3.0-3.4V |
Reverse Voltage | 5V |
Current | 20mA |
Lifespan | 50000 hours |
Warranty | 2 Years |
diameter | 3mm |
Feature | |
High intensity Polygonal LED lamp F5 MM round shape UV resistant epoxy
| |
Application | |
LED lighting Automotive Lighting application Advertising industry Car light | |
Notes
All dimensions are in millimeters (inches).
Tolerance is ± 0.25mm (.010”) unless otherwise noted.
Protruded resin under flange is 1.0mm(.04”) max.
Lead spacing is measured where the leads emerge from the package.
Specifications are subject to change without notice.
Absolute Maximum Ratings at TA=25℃
Optical Characteristics
Product application:
