- Type:Super Flux LED
- Place of Origin:CN;GUA
- Color Temperature:red 620-630nm yellow:588-592nm Blue: 460-470nm
- Color Rendering Index(Ra):80
- Brand Name:YLL
- Model Number:3 mm pirnaha super flux
- Power Dissipation:0
- Power:0.06W
- Luminous Flux(lm):3-15lm
- Luminous Intensity:200-30000mcd
- Storage Temperature(℃):-30 - 80
- Optical Attenuation(%):2
- Viewing Angle(°):120
- Chip Material:InGaN
- Certification:CE
- Certification:RoHS
- Emitting Color:Blue
- Operating Temperature(℃):-40 - 100

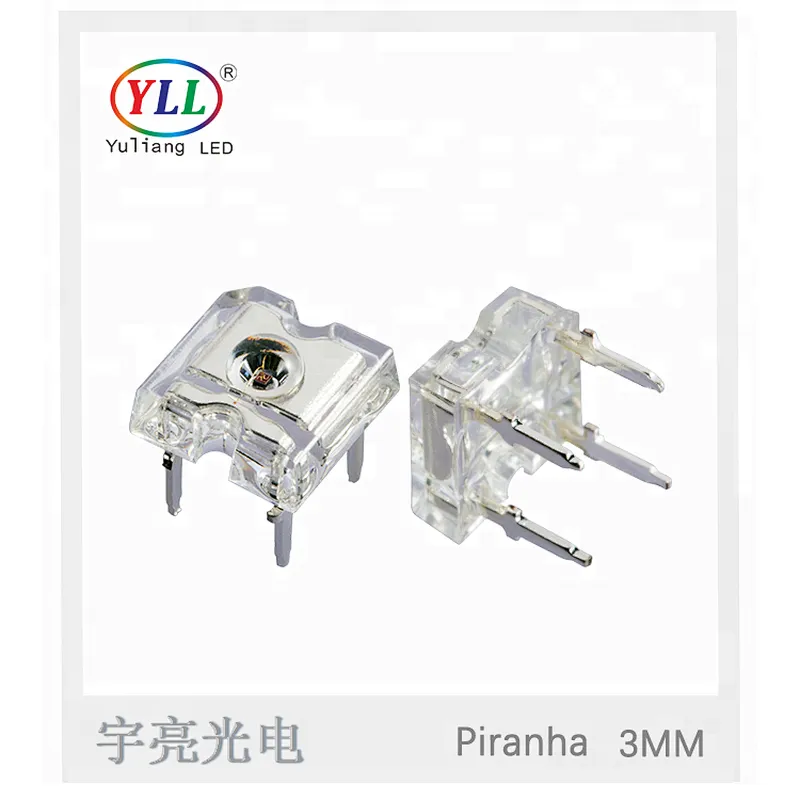

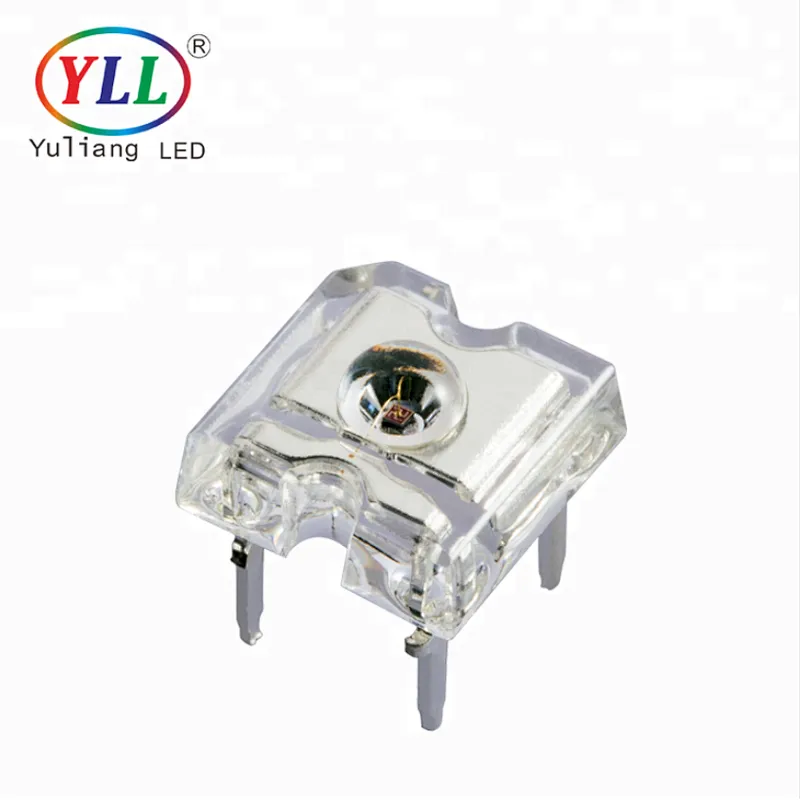

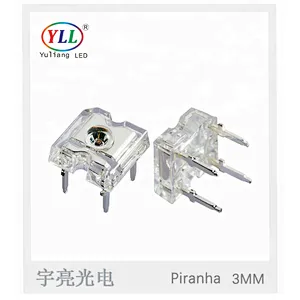

5mm 7mm 3mm red yellow blue color super flux led piranha led
Product Introduction
3mm super flux led piranha led blue color specializing for car light 5mm 7mm and flat are also available | |
Product data | |
item | 3mm super flux led piranha led blue color specializing for car light 5mm 7mm and flat are also available |
Emitting Color | green |
Wavelength | 465-475nm |
Luminous flux | 1000-1500mcd |
CRI | 70Ra |
View Angle | 120degree |
Voltage | 3.0-3.4V |
Reverse Voltage | 5V |
Current | 20mA |
Lifespan | 50000 hours |
Warranty | 2 Years |
diameter | 3mm |
Feature | |
High intensity Polygonal LED lamp F5 MM round shape UV resistant epoxy
| |
Application | |
LED lighting Automotive Lighting application Advertising industry Car light | |
Notes

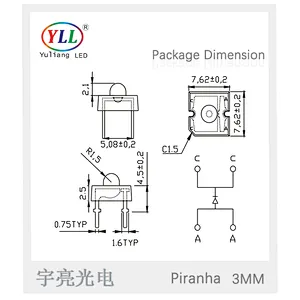

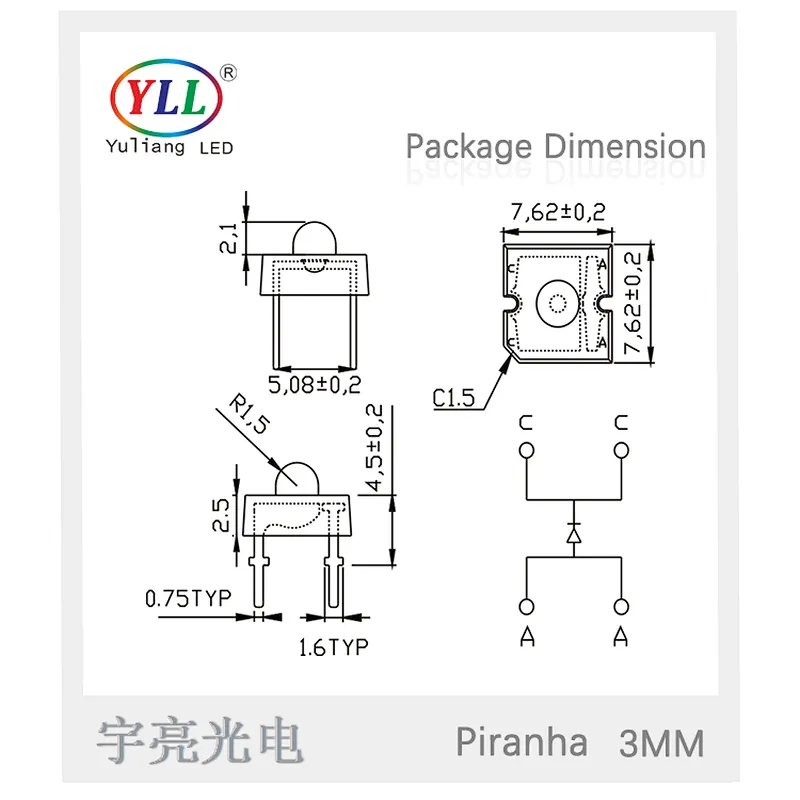

All dimensions are in millimeters (inches).
Tolerance is ± 0.25mm (.010”) unless otherwise noted.
Protruded resin under flange is 1.0mm(.04”) max.
Lead spacing is measured where the leads emerge from the package.
Specifications are subject to change without notice.
Absolute Maximum Ratings at TA=25℃
Optical Characteristics
Product application:
