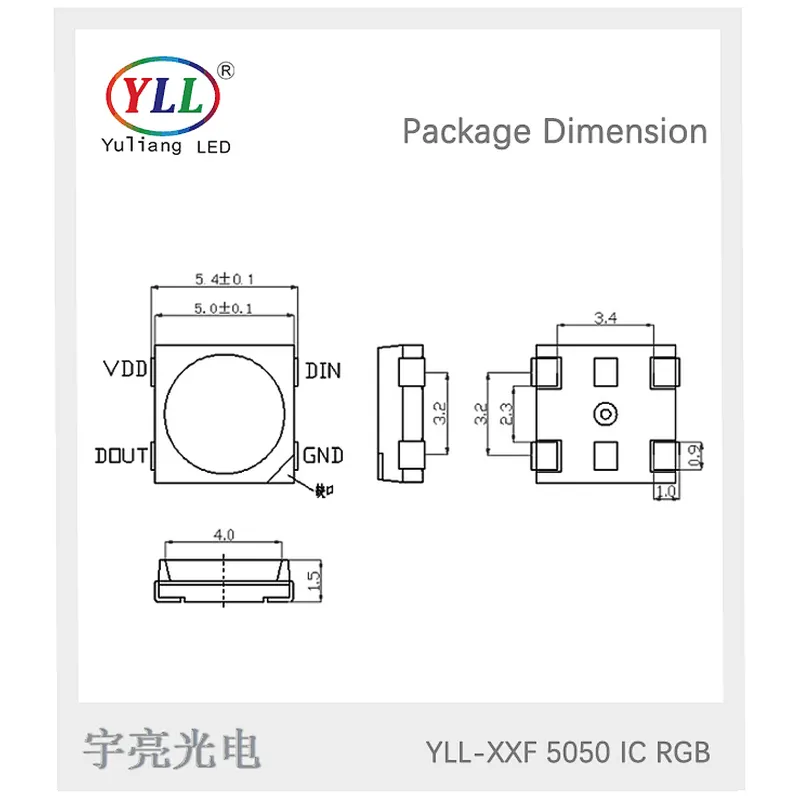

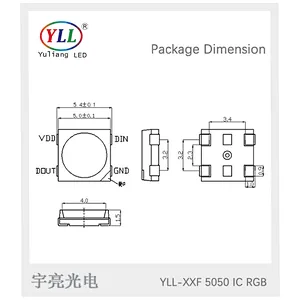

size:5.0*5.0*1.5mm
1.High Lumens Output & Low Brightness Decay
2.Stable Performance & Great CCT Inity.
3.Taiwan Epistar, CREE chips
- Type:SMD LED
- Place of Origin:CN;GUA
- Certification:CE
- Certification:RoHS
- Chip Material:Epistar
- Emitting Color:red grren blue
- Power:0.2w
- Luminous Intensity:r:600-800mcd g:1400-1600mcd b:300-500mcd
- Luminous Flux(lm):r:2-3lm g:5-6lm b:1-3lm
- Optical Attenuation(%):0.3
- Power Dissipation:0.2
- Viewing Angle(°):120
- Color Rendering Index(Ra):0
- Operating Temperature(℃):-40 - 85
- Storage Temperature(℃):0 - 30
- Brand Name:YLL
Basic information
Hot sale!, ws2811 ws2812 sk6812 ws2812b IC 5050 smd rgb LED chip.
Product Description

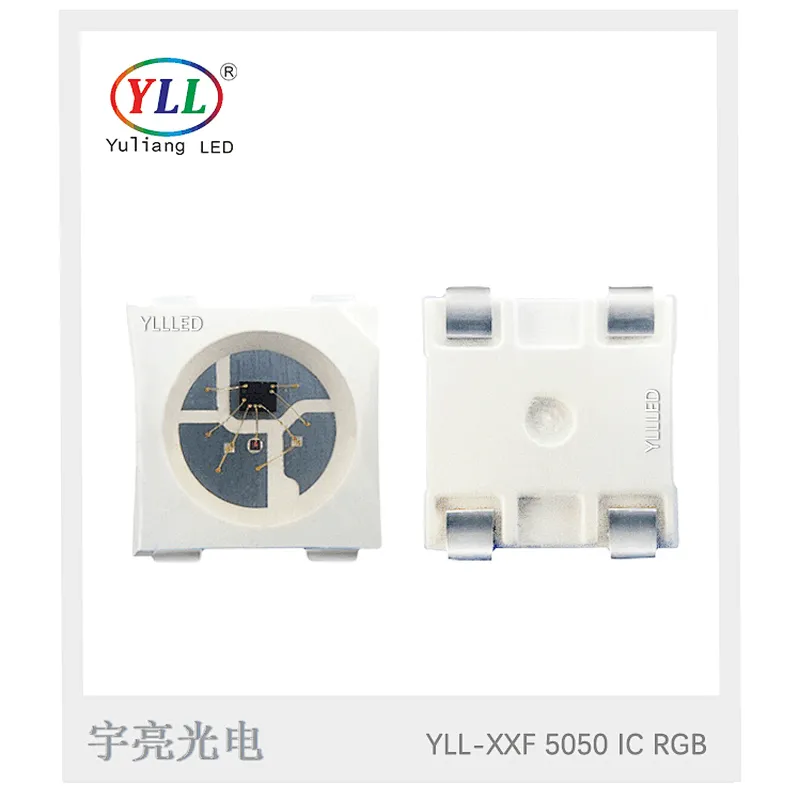

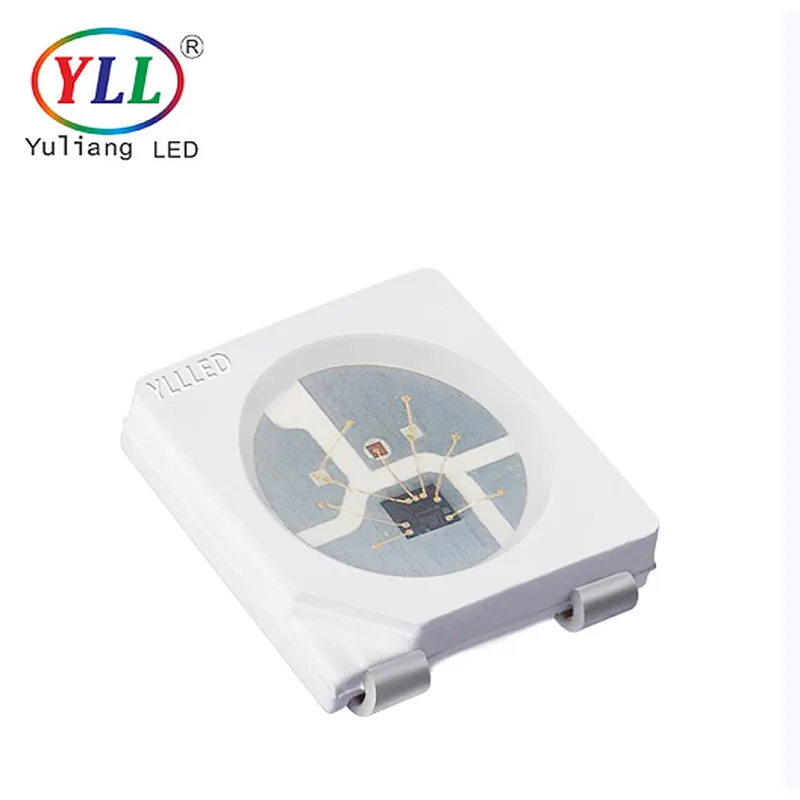

SK6812 dream color 5050 rgb SMD LED chip with epistar led chip.
Tech Specs
Type : SMD LED
Model Number : YLL-5050IC RGB
Power : 0.2W
Chip : Epistar, CREE
Viewing Angle : 120°
Emitting Color : RGB
Life span : 50000H
Warranty : 2Years
Certification : EN62471, CE, SDS, SGS, ROHS
Model Number : YLL-5050IC RGB
Power : 0.2W
Chip : Epistar, CREE
Viewing Angle : 120°
Emitting Color : RGB
Life span : 50000H
Warranty : 2Years
Certification : EN62471, CE, SDS, SGS, ROHS
Features:
- IC Built in
- Good stability
- Color change as you like
- Gold wire, Copper stand

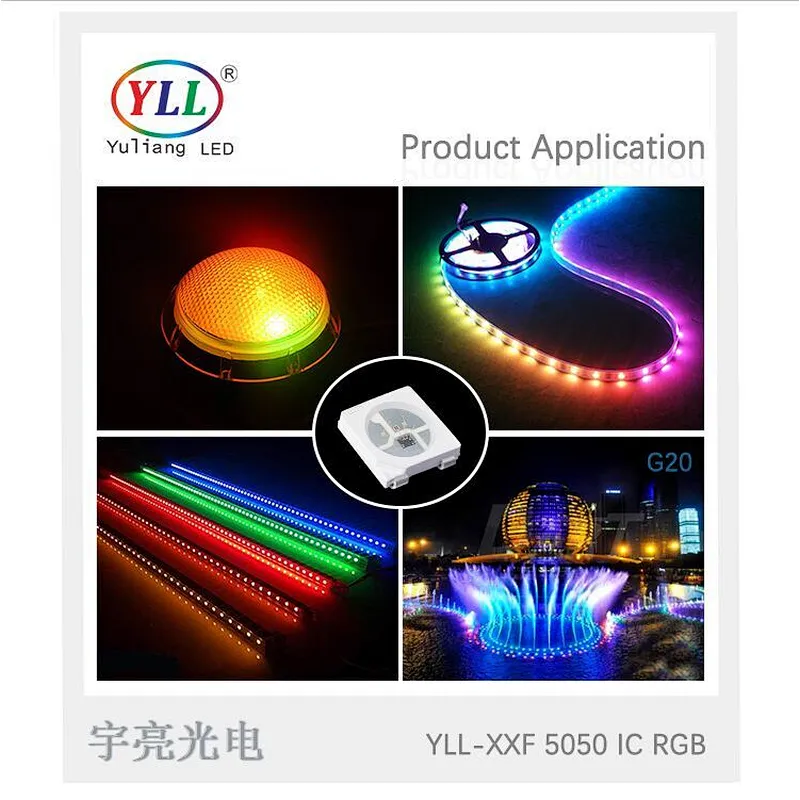

Applications:
-LED magic strip
-LED dot matrix screen
-LED advertising words
-Decorative lighting products and so on
About the product
product | color | VF(V) | WL(nm) | IV(mcd) | IF(mA) | Angle(°） |
5050 IC RGB EPISTAR | red | 3.5-5 | 620-630 | 600-800 | 12 | 120 |
green | 3.5-5 | 515-530 | 1400-1600 | 12 | 120 | |
blue | 460-470 | 300-500 | 12 | 120 |
1.The 5050 smd led integrate high-quality externally controlled single-line cascaded constant current IC and high-quality RGB LED chips in a small and compact package.
2.Single-line data transmission, infinite cascade.
3.High constant current accuracy, on-chip error <1.5%, inter-chip error <3%.
Apllications
Related Products
LED Light Source | SMD 3528 | SMD 3528 | SMD 3014 | SMD 3535 |
Watt | 0.2-0.5w | 0.2-0.5w | 0.2-0.5w | 0.2-0.5w |
Input voltage | 2.8-3.4v | 2.8-3.4v | 2.8-3.4v | 2.8-3.4v |
Certifications
some certifications
LM-80
CE, RoSH
Our company strictly operates in accordance with ISO9001:2008 quality management system. The white light area strictly complies with the American Energy Star IES LM-80 standard. Many products have passed the US Energy Star IES LM-80 test, ROHS, REACH, EN62471 certification. Our company always adhere to the quality policy of “meeting customer needs with high quality, continuous improvement and innovation.”, and continuously develops and launches LED series products illuminate the universe.
Our Company
Shenzhen yuliang Technology Co.,Ltd
Shenzhen Yuliang Optoelectronic Co., Ltd, was established in 2005. It is a high-tech enterprise specializing in R&D, production and sales of LEDs. In 2016, it was selected as one of the top ten innovative brand companies for lighting designers.Factory mainly producing super bright piranha series: red, yellow, orange, blue, green, purple, pink, white, warm white and SMD patch series: 3014 side view, 3528, 3535, 4040, 5050 and other patches SMD LED.Products with low lighting decay, anti-moisture, anti-sulfurization, waterproof, anti-deadlight and other prominent features, are widely used in Automotive LED lights, outdoor landscape lighting, interior lighting, commercial lighting, LED advertising logo light.Our factory has more than 8,000 sm² 100,000 level dust-free LED packaging workshops, more than 30 engineering technical and senior management personnel with over 10 years experience in LED industry packaging. The raw materials used in the products are mainly imported from Japan, Unites States, ans Taiwan. Equipped with automatic die bonder machine, automatic wire bonding machine, automatic sealing machine, constant temperature and humidity machine, salt spray test machine and other advanced equipment.The products include 3 series: decorative light source, outdoor led light source and automotive led light source. Most of our customers are factories from Europe and America, while a few are traders and suppliers.
Our services
1.Your related inquiry will be replied in 24 hours.
2.Your information for us will be protected strictly.
3.Customized package and product available.
4.Free samples are availale,3 years guarantee time.
5.After sales service stay a super position.
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 5-7 working days.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
