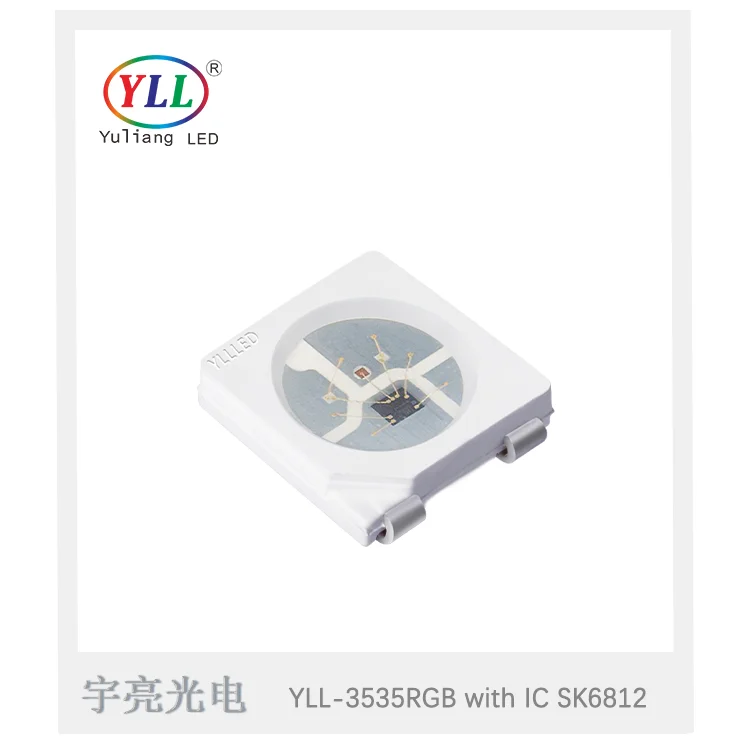

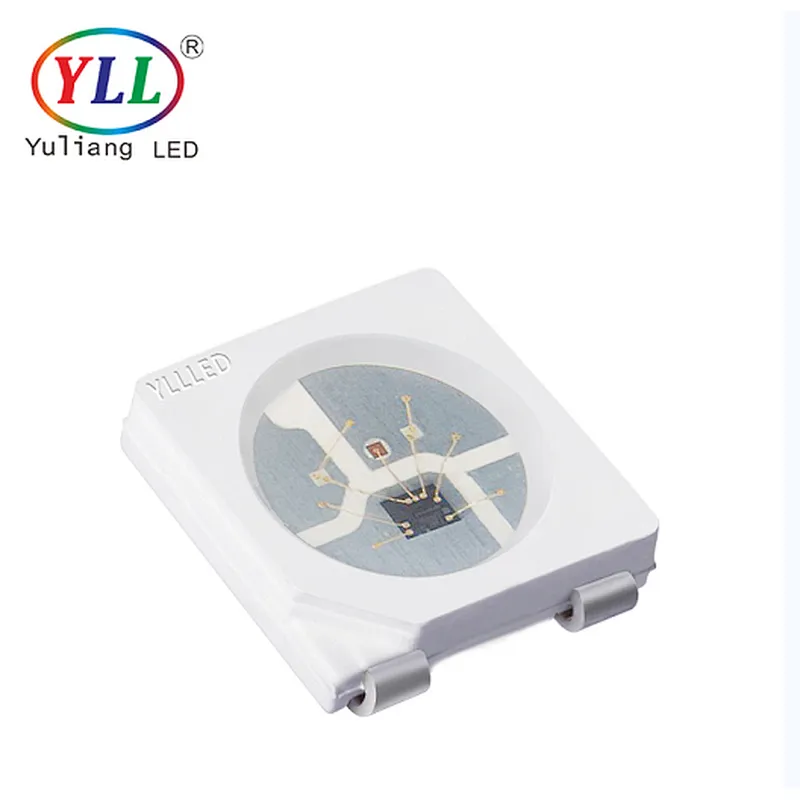

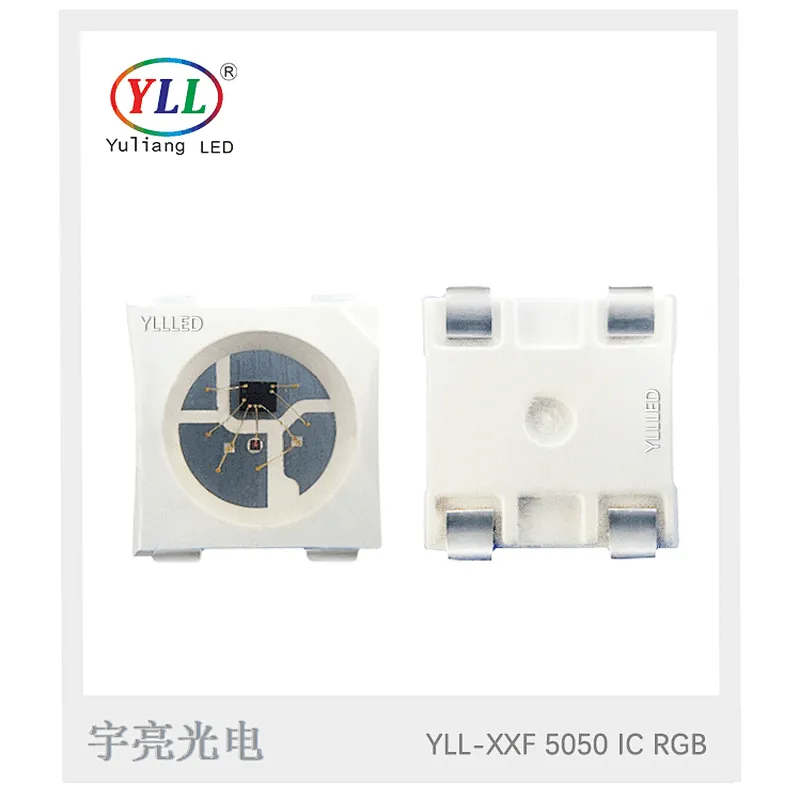

Epistar chip 0.2w sk6812 ws2812b 5050 smd rgb led chip

Description:

 Top SMD internal integrated high quality external control line serial cascade constant current IC;

 control circuit and the RGB chip in SMD 5050 components, to form a complete control of pixel, color mixing uniformity and consistency;

 built-in data shaping circuit, a pixel signal is received after wave shaping and output  waveform distortion will not guarantee a line;

 The built-in power on reset and reset circuit, the power does not work;

 gray level adjusting circuit (256 level gray scale adjustable);

  red drive special treatment, color balance;

 line data transmission;

 plastic forward strengthening technology, the transmission distance between two points over 10M;

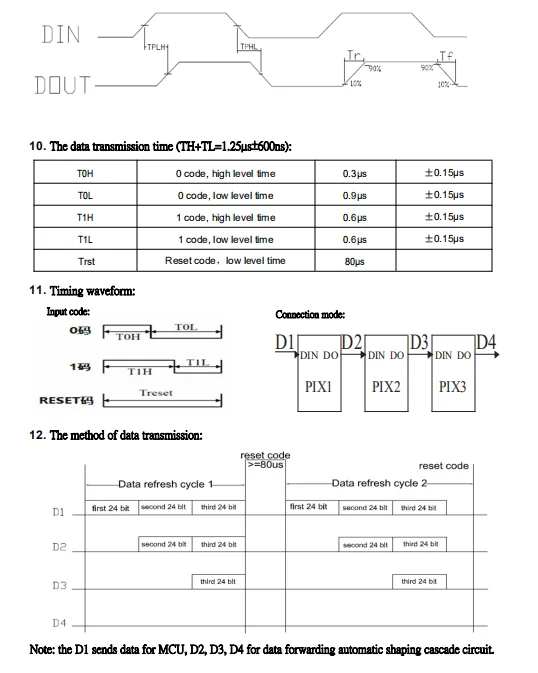

 Using a typical data transmission frequency of 800 K bps, when the refresh rate of 30 frames per sec

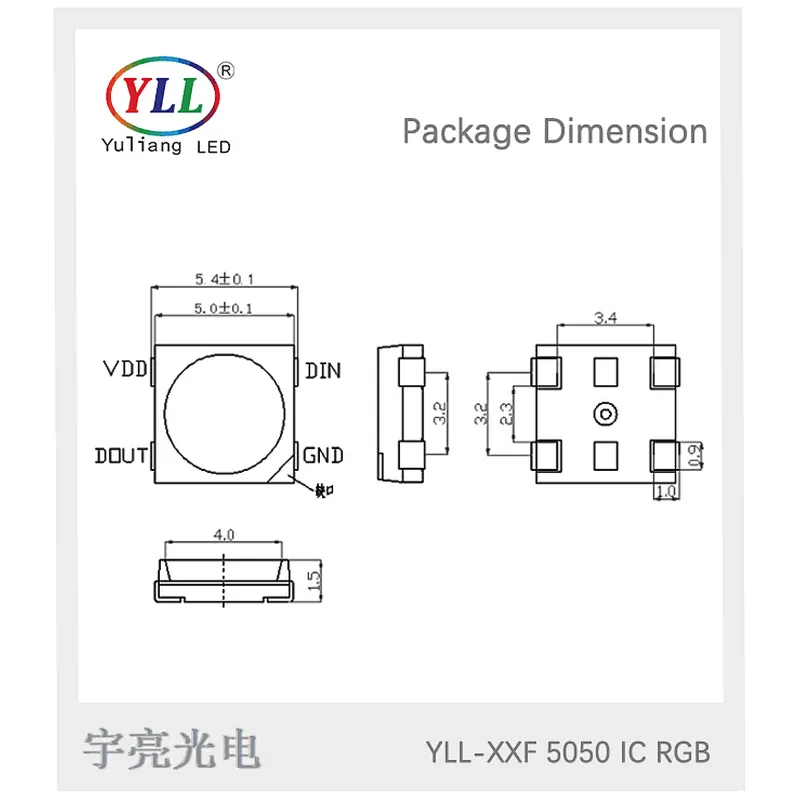

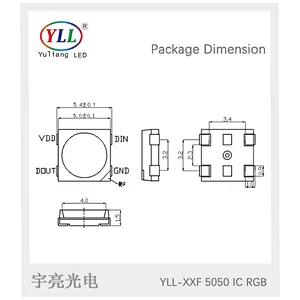

PIN configuration
