- Type:SMD LED
- Chip Material:InGaN
- Place of Origin:CN;GUA
- Certification:CE
- Certification:RoHS
- Emitting Color:RGB
- Power:0.2w
- Luminous Intensity:300-1600mcd
- Luminous Flux(lm):300-1600mcd
- Optical Attenuation(%):3
- Power Dissipation:0.16
- Viewing Angle(°):120
- Color Rendering Index(Ra):0
- Color Temperature:1
- Operating Temperature(℃):-40 - 85
- Storage Temperature(℃):-50 - 150
- Brand Name:YLL

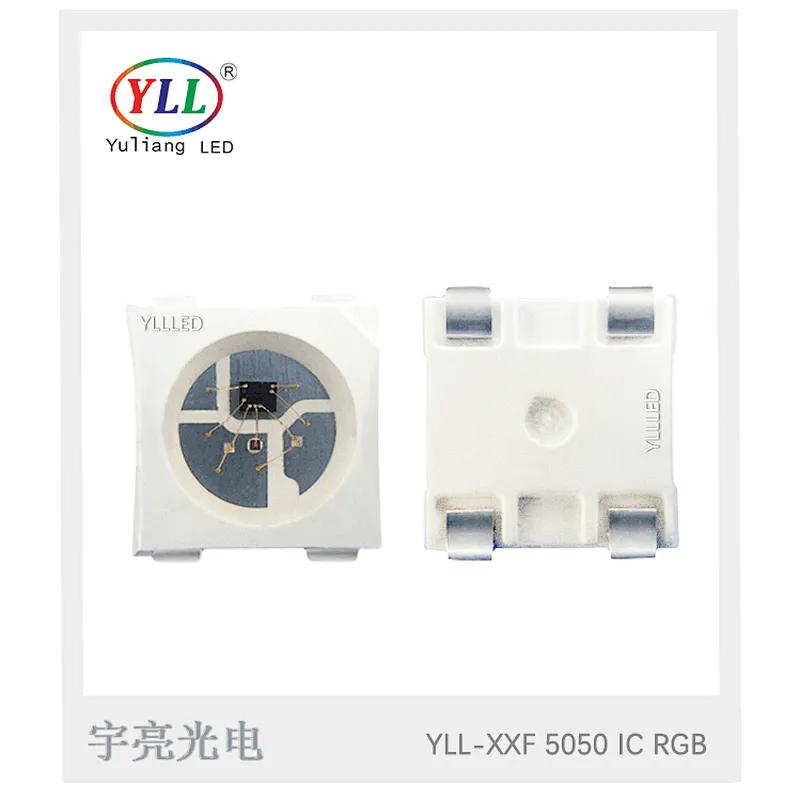

Addressable Smd 5050 Rgb Led Chip Apa102 Sk6812 Ws2812b Rgbw Led Chip
Product Overview :

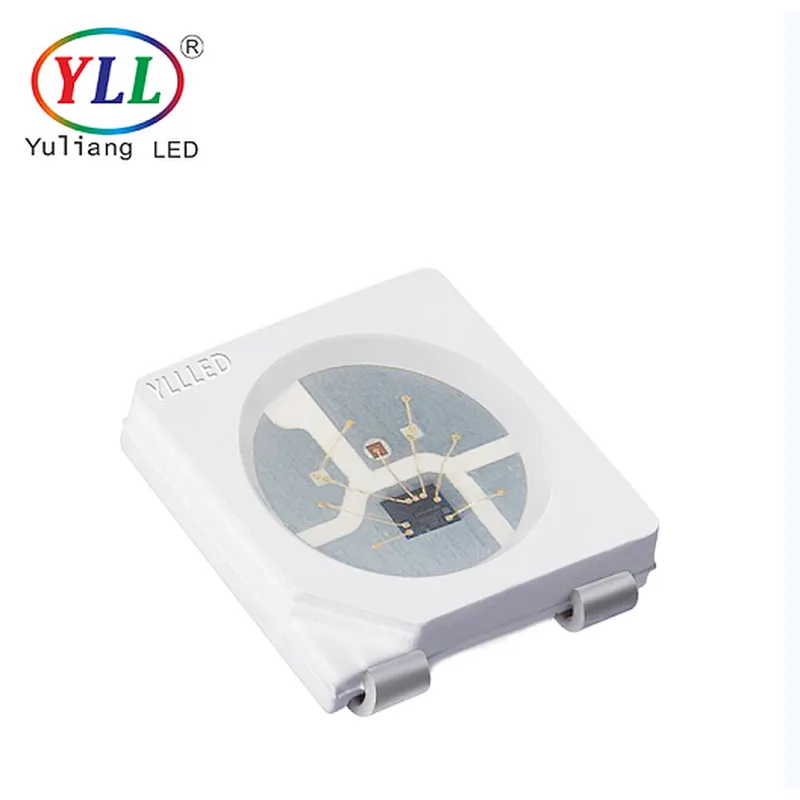

SK6812 is a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of the pixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator.
The data protocol being used is uni-polar NRZ communication mode. The 24-bit data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal transmission speed.
The LED has a low driving voltage (which allows for environmental protection and energy saving), high brightness, scattering angle, good consistency, low power, and long life. The control circuit is integrated in the LED above.
Main Application Field:
Full color LED string light, LED full color module, LED super hard and soft lights, LED guardrail tube, LED appearance / scene lighting
LED point light, LED pixel screen, LED shaped screen, a variety of electronic products, electrical equipment etc..
Description:
Top SMD internal integrated high quality external control line serial cascade constant current IC;
Control circuit and the RGB chip in SMD 5050 components, to form a complete control of pixel, color mixing uniformity and consistency;
Built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform distortion will not guarantee a line;
The built-in power on reset and reset circuit, the power does not work;
Gray level adjusting circuit (256 level gray scale adjustable);
Red drive special treatment, color balance;
Line data transmission;
Plastic forward strengthening technology, the transmission distance between two points over 10M;
Using a typical data transmission frequency of 800 K bps, when the refresh rate of 30 frames per sec

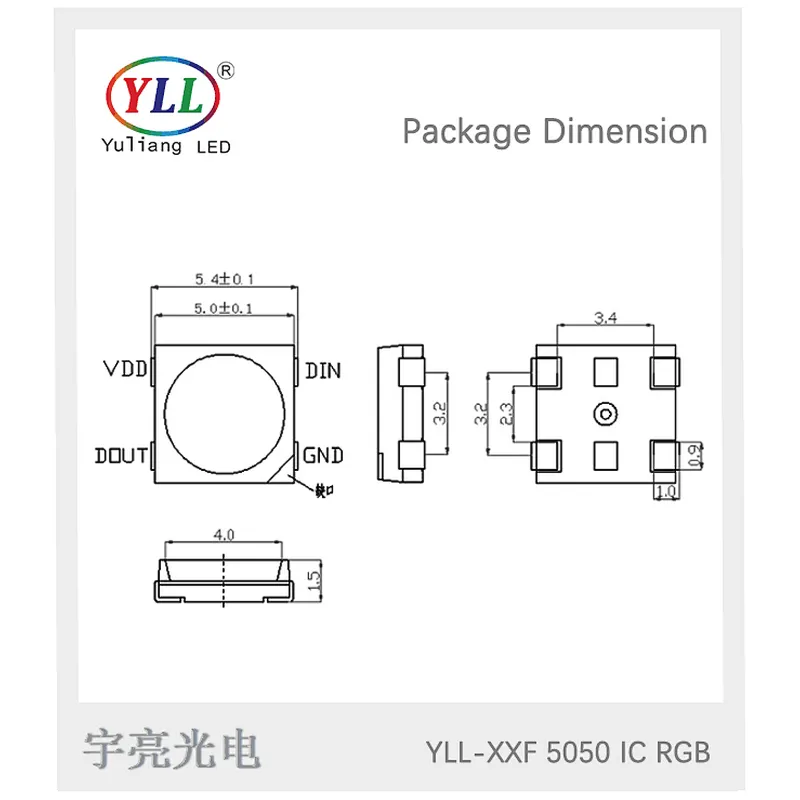

Package Dimensions:
DIN: data input
GND: ground connection
DOUT: data output

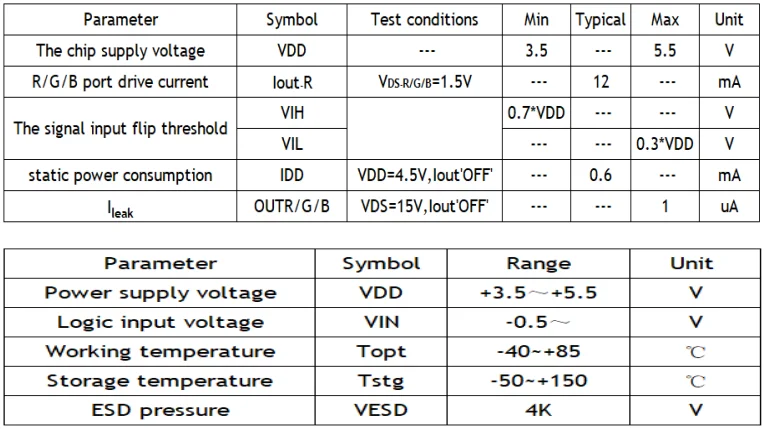

The Electrical Parameters
(unless otherwise specified,VDD=5V,TA=25℃)

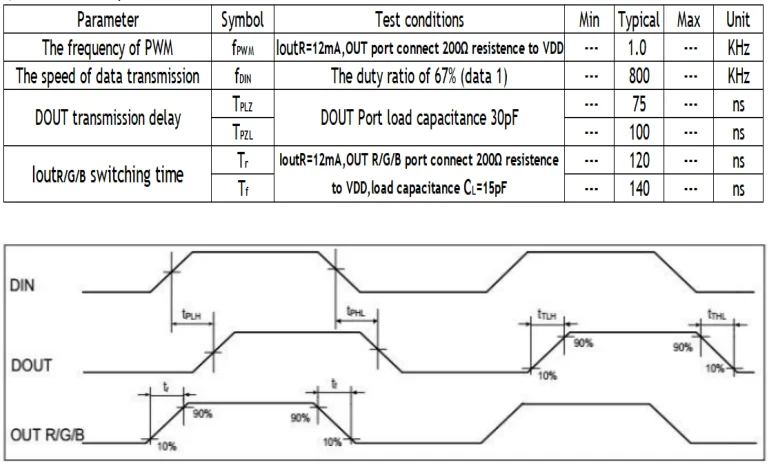

Switching Characteristic
(unless otherwise specified,VDD=5V,TA=25℃)

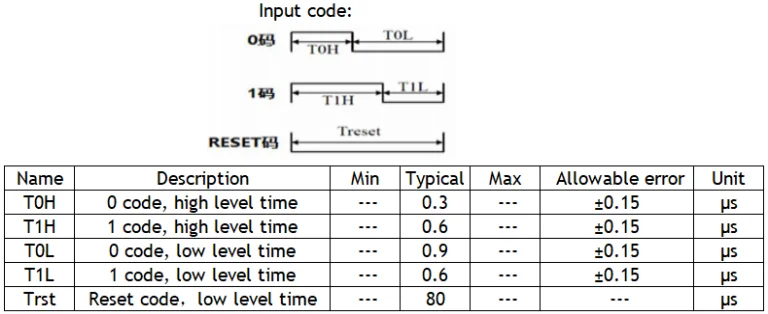

Coding Description
The chip protocol uses a unipolar zeroing code,every code element must have a low level.
Each code element of this protocol starts with a high level,a high level time width determines '0' code or '1' code.

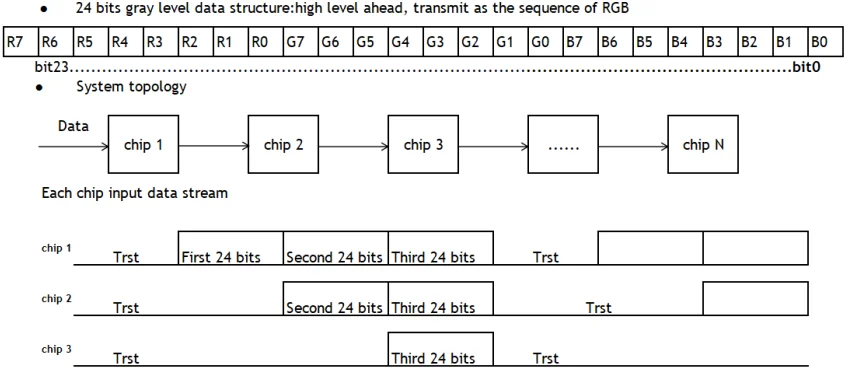

Protocol Data Format
Trst+First chip 24 bits data+Second chip 24 bits data+......+Nth chip 24 bits data

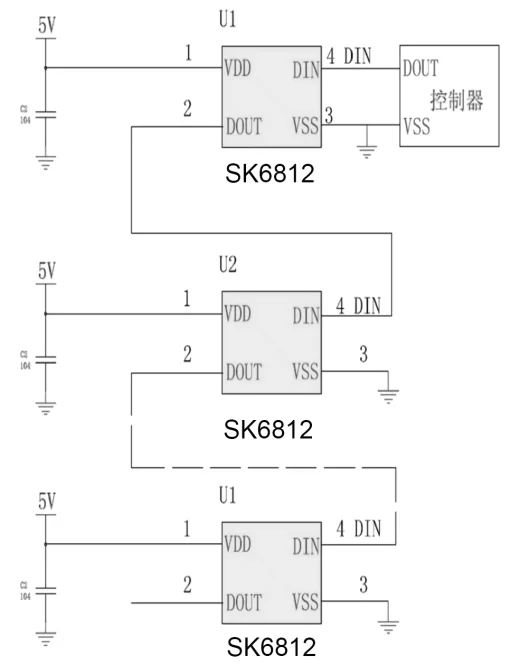

Typical Application Circuit:

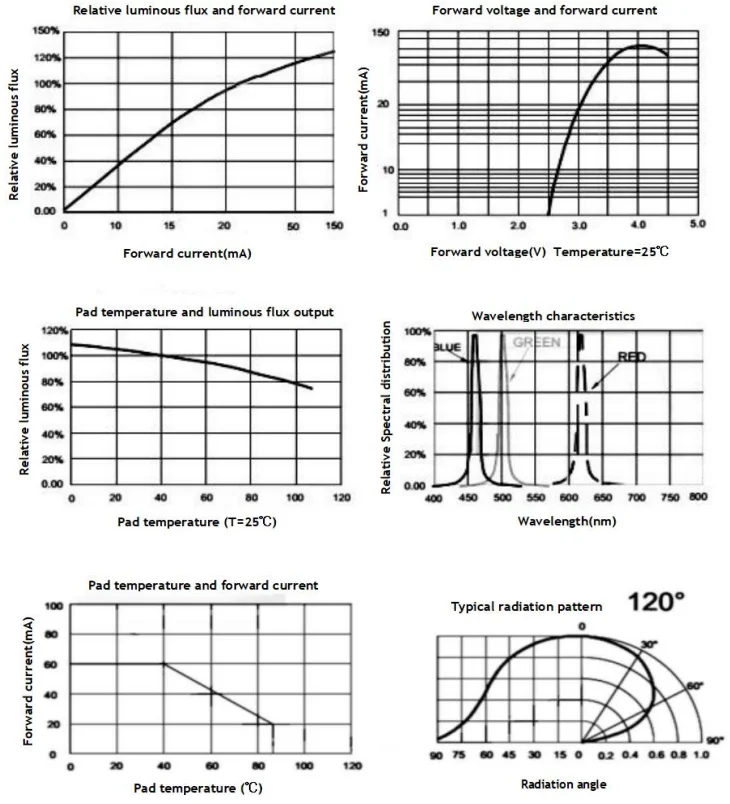

Optical Characteristics Curves:
Application:
*Indoor LED decorative lighting
*Architectural appearance/Scene lighting
*Flexible strip, Pixel screen
*Colorful horse race effect design
Packaging:
1002PCS/reel
Anti-static, high moisture level aluminum foil bag vacuum packaging.
Before and after packaging, check whether the package leaks, otherwise it will affect the
shelf life.
Shipment:
Shipment by Express: DHL,UPS,FEDEX,we working wth their for more than 5 years,so we can get the best price with best service.
Shipment by Air: considering the expensive international freight,shipment by air is a good choice if the goods more than 100KG,note:it is door to airport,you need pick up the goods at airport.
Shipment by Sea: It is cheapest shipment way,people always choose it when the goods weight more than 1-2CBM at least,it is door to port,you have to pick up the goods at port.
SMD LED Instruction Manual
Thank you for using Shenzhen Yuliang Optoelectronics Co., Ltd. LED series products, in order to enhance your understanding of our company's product characteristics, to facilitate you to master its characteristics during use, to minimize or avoid unnecessary factors caused by human factors Damage or performance mismatch. Hereby explai1. Material confirmation
Is the LED BIN rating of the feed matched? For example: voltage CIE BIN brightness and other parameters are the same level, the same level should be used together. Whether the positive and negative polarities meet the requirements, whether the different foot positions meet the requirements. If the same level of LED is not applied to the same item, its applicability should be evaluated first. (If the different voltage BINs are used together, the brightness may be different, and different CIE BINs may use the luminescent colors together to make a difference).
2. Packing and storage
Avoid moisture entering the inside of the LED before opening the package. It is recommended that the SMD series of LEDs be stored in a desiccant drying cabinet. Storage environment temperature range 5-30 degrees, humidity does not exceed 50%.
3. Preventive measures after opening the package
After unpacking, take the whole roll dehumidification measures as much as possible, and dehumidify the conditions: baking at 70 degrees for 4-12 hours. The dehumidified material should be used as soon as possible (within 24 hours). Remaining material should be sealed or placed in an environment with 10-40 degrees humidity and no more than 30% humidity.
4. Operational notes
This product can only be rewelded at most twice and after the first reflow, it must be cooled to room temperature before the second reflow can be performed. It is recommended that the reflow temperature range is 200-240 degrees. During the operation process, the material can not be taken directly by hand. There is sweat on the hand, and the sweat on the surface of the silica gel has optical pollution, affecting the light. In addition, the silica gel is relatively soft, and hand squeezing will cause the dead lamp to be broken. It is not recommended to mount LEDs on a bent circuit board. Avoid rapid cooling during soldering. Avoid any form of mechanical force or excessive vibration during LED solder cooling. After soldering, do not bend the circuit board. During rework or single-material work, the surface of the colloid cannot be squeezed with tweezers. Because silica gel is relatively soft, squeezing the colloid with tweezers can lead to wire breakage, which can damage the chip and cause it to die. In batch operations, the suction nozzle smaller than the inner diameter of the product will cause the nozzle to punch the silicone, causing the gold wire to break and the chip to be pressed and die. It is not advisable to carry out soldering for the repaired LED. If it is unavoidable, double-head soldering iron should be used. However, it is necessary to confirm in advance whether the LED characteristic will be damaged after the repair.
5. Electrostatic Protection
Electrostatic protection LED is an electrostatic sensitive electronic device. Various measures should be taken to avoid static electricity. For example: Wear an electrostatic ring during use. All devices, equipment and instruments should be grounded. It is recommended to test the assembled LED product to check whether the LED is damaged by static electricity.
6. Cleaning
It is recommended that isopropyl alcohol be used to clean the LEDs. If using other solvents for cleaning, make sure that the solvent does not affect the epoxy, silicone, or stent silver layers. Ultrasonic cleaning is not recommended to avoid damage to the LED. If it is unavoidable, please perform a pre-test beforehand to confirm whether it has adverse effects on the LED or potential problems.
7. Other considerations
Long-term exposure of the LED to sunlight or occasional exposure to ultraviolet light may cause yellowing of the gel. In order to ensure the photoelectric performance of the LED, please keep the surface of the LED lighting area clean and avoid fingerprints or other foreign objects covering. When designing the circuit, reverse voltage or excessive current in the switching process should be prevented from impacting the LED instantaneously. During use, avoid sharp tools such as tweezers touching the silicone gel section.
