- Type:SMD LED
- Place of Origin:CN;GUA
- Color Temperature:620-630nm
- Color Rendering Index(Ra):80
- Brand Name:YLL
- Model Number:3528
- Power Dissipation:0.1
- Power:0.1W
- Luminous Flux(lm):2000-2500mcd
- Luminous Intensity:2000-2500mcd
- Storage Temperature(℃):0 - 40
- Optical Attenuation(%):0.3
- Viewing Angle(°):50-60
- Chip Material:InGaN
- Certification:CE
- Certification:RoHS
- Emitting Color:Red
- Operating Temperature(℃):-40 - 85

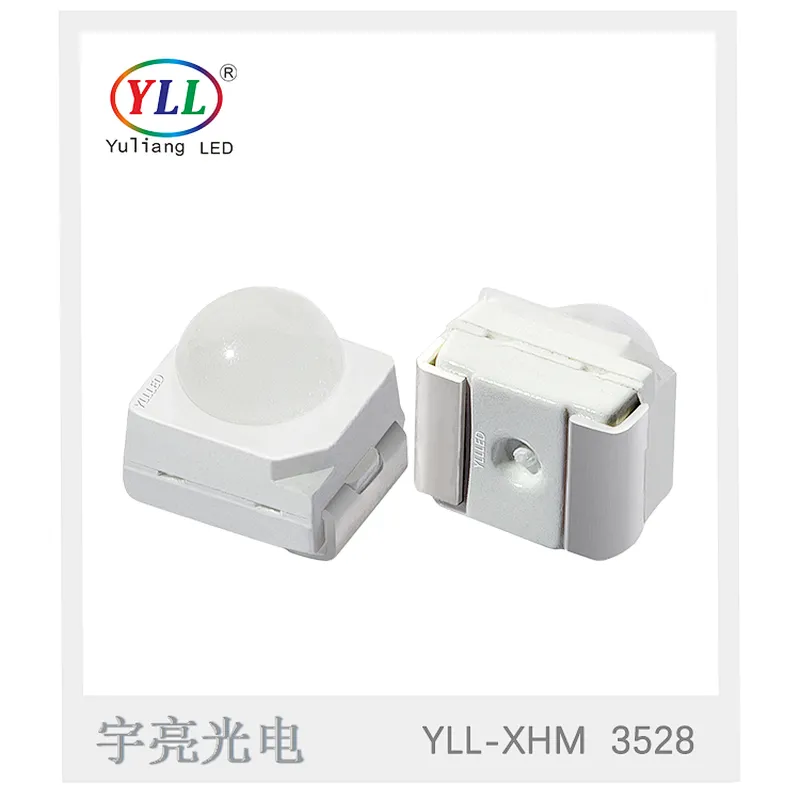

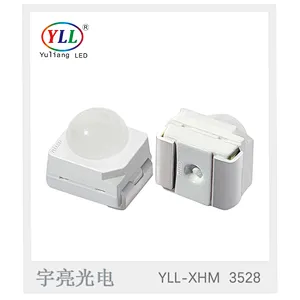

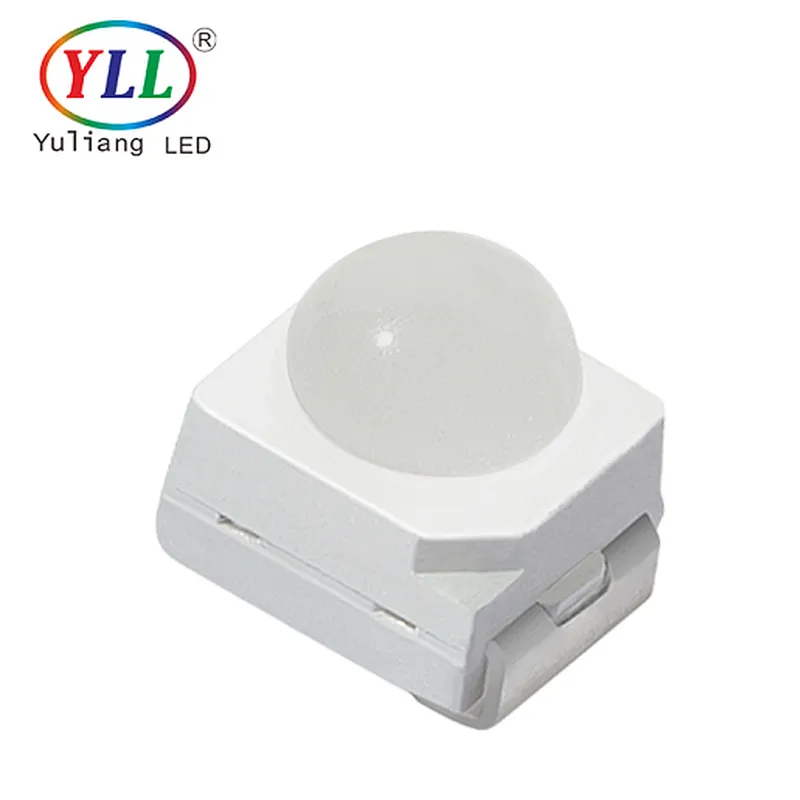

YLL lighting manufactory led 3528 lens smd led chip
| Product Type | 3528 with lens |
| Power(W) | 0.1 |
| Emitting Color | Red |
| Voltage(V) | 2.1-2.5 |
| Wavelength(nm) | 620-630 |
| Brightness(mcd) | 2000-2500 |
| Current(mA) | 50 |
| Beam Angle(°) | 50-60 |
| CRI(Ra) | 80-85 |
| Life Span(hour) | 50000 |
| Warranty | 2 years |
Feature:Small power,High brightness,Small light-emitting angle,Low impedance

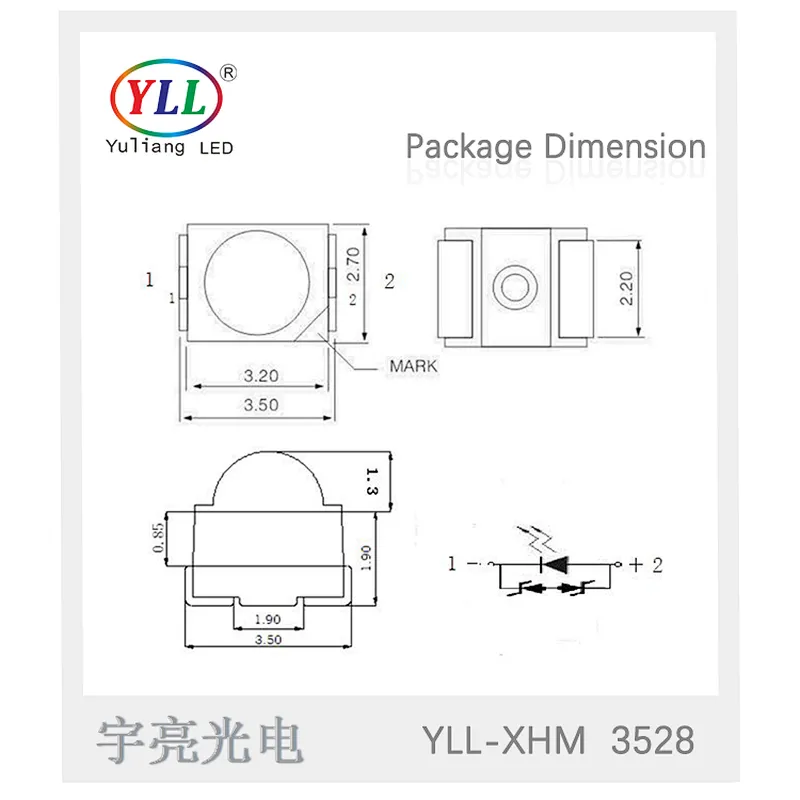

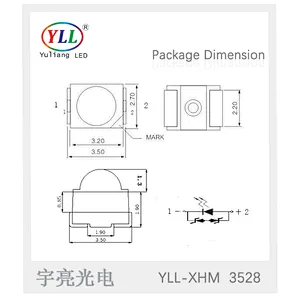

Package Dimensions:
Notes:
Tolerance is ± 0.25mm (.010”) unless otherwise noted.
Protruded resin under flange is 1.0mm(.04”) max.
Lead spacing is measured where the leads emerge from the package. Specifications are subject to change without notice.
Notes:
Luminous intensity is measured with a light sensor and filter combination that approximates the CIE (Commission International De L’Eclairage) eye-response curve.1/2 is the off-axis angle at which the luminous intensity is half the axial luminous and intensity.The dominant wavelength, λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.The IV guarantee should be added ±15%.
INTENSITY BIN LIMIT (IF=50mA)
| Bin Code | Min(mcd) | Max(mcd) |
| A | 2000 | 2500 |
COLOR BIN LIMIT (IF=50mA)
| Bin Code | Min(nm) | Max(nm) |
| A | 620 | 625 |
| B | 625 | 630 |
LED Packaging
