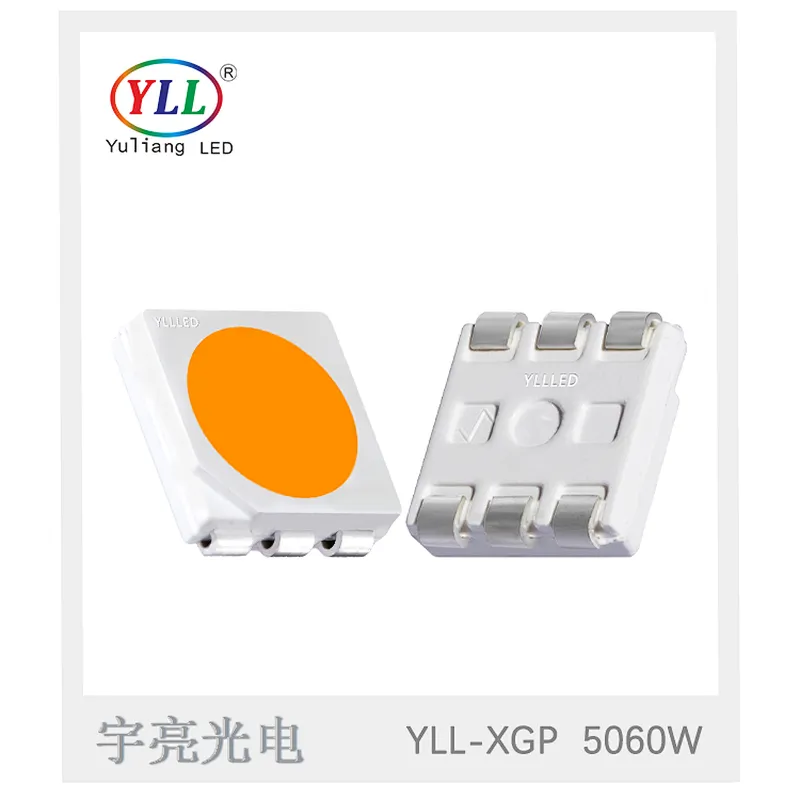

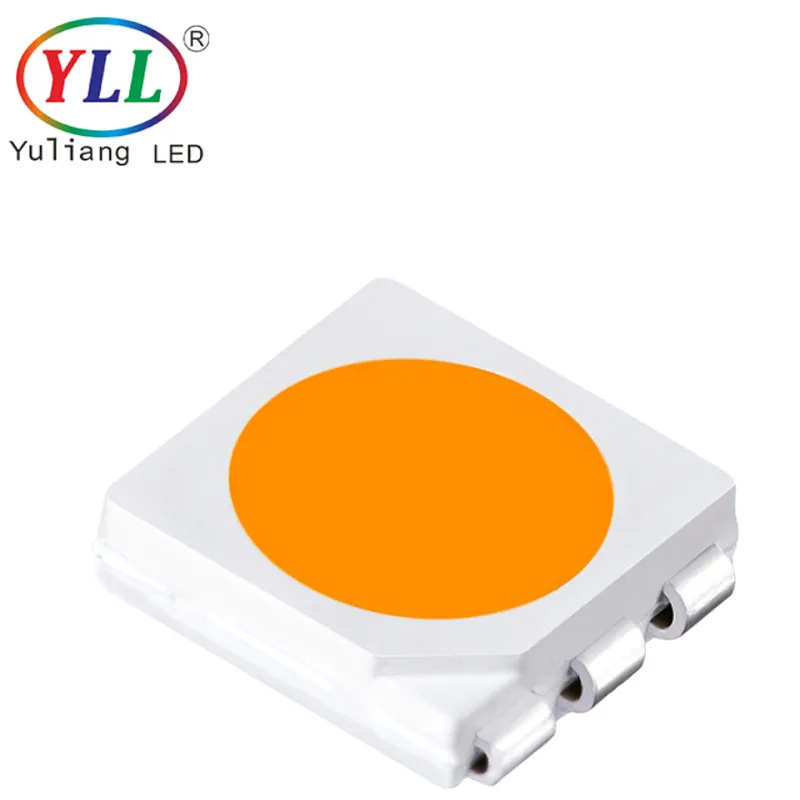

YLL LED package high brightness white epistar chip 5050 smd led chip

YLL LED package high brightness white epistar chip 5050 smd led chip

Price:: USD 0.02-0.02 / pieces
Delivery: FOB
Minimum order quantity: 1000 pieces
Supply Ability: 100000000 pieces / Month
Country of Origin: Shenzhen

Quantity:

Product Description

Type:SMD LED
Chip Material:InGaN
Emitting Color:Warm White
Place of Origin:CN;GUA
Certification:CE
Certification:RoHS
Power:0.2w
Luminous Intensity:21-25lm
Luminous Flux(lm):21-25
Optical Attenuation(%):0.3
Power Dissipation:0.2
Viewing Angle(°):120
Color Rendering Index(Ra):80
Color Temperature:2871-3045K
Operating Temperature(℃):-30 - 80
Storage Temperature(℃):0 - 40
Brand Name:YLL

YLL LED package high brightness white epistar chip 5050 smd led chip

Product Description

Product Type	5050
Power(W)	0.2
Emitting Color	White
Voltage(V)	2.8-3.4
Color Temperature(K)	2958±87
Brightness(lm)	21-25
Current(mA)	60
Beam Angle(°)	120
CRI(Ra)	80-85
Life Span(hour)	50000
Warranty	2 years

Feature:Anti-sulfuration, Wide application,High luminous efficacy

Product Datasheet

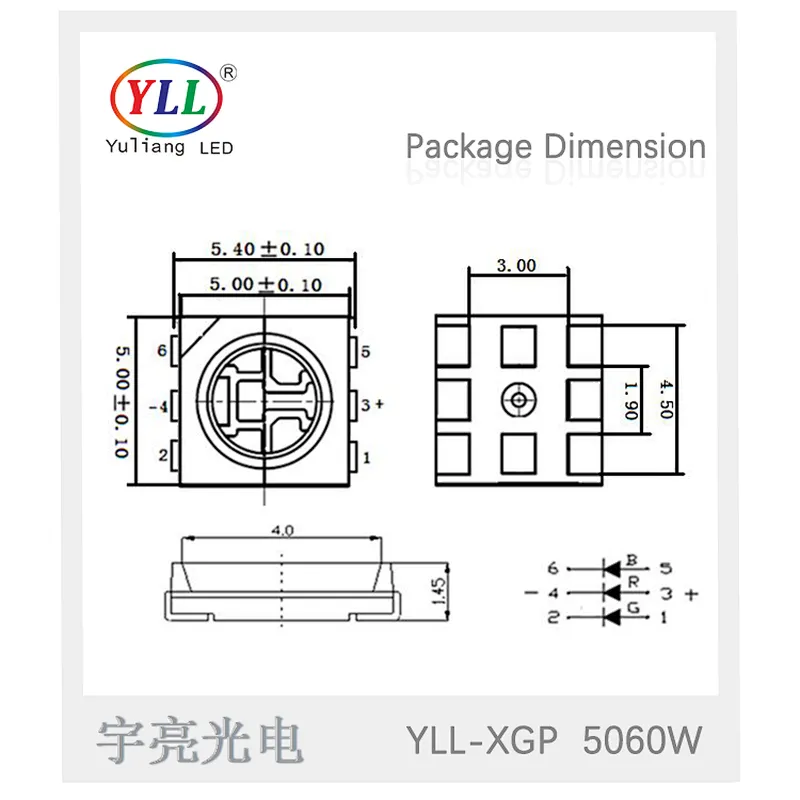

Package Dimensions:

5060 1.jpg

Notes:

All dimensions are in millimeters (inches).
Tolerance is ± 0.25mm (.010”) unless otherwise noted.
Protruded resin under flange is 1.0mm(.04”) max.
Lead spacing is measured where the leads emerge from the package. Specifications are subject to change without notice.

Absolute Maximum Ratings at TA=25°C

Electrical/Optical Characteristics at TA=25°C

Notes:

Luminous intensity is measured with a light sensor and filter combination that approximates the CIE (Commission International De L’Eclairage) eye-response curve.1/2 is the off-axis angle at which the luminous intensity is half the axial luminous and intensity.The dominant wavelength, λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.The IV guarantee should be added ±15%.

COLOR BIN LIMIT

Color Area Code	X	Y	Color Area Code	X	Y	Color Area Code	X	Y
29G	0.4295	0.3941	41G	0.3941	0.3627	62G	0.3133	0.3214
	0.4381	0.4120		0.3725	0.3825		0.3113	0.3350
	0.4515	0.4168		0.3845	0.3900		0.3208	0.3444
	0.4420	0.3985		0.3794	0.3706		0.3219	0.3296

Product Application

QQ20170309145256

0.2w Epistar Chip 5050 RGB SMD LED can be used for outdoor point light source,fence tube,wall washer light,line lamp,home lighting,etc.

Packaging & Shipping

Packaging:

Method of Taping / Polarity and Orientation

Packing unit 1000/reel, ø180 mm

Shipment:
Shipment by Express: DHL,UPS,FEDEX,we working wth their for more than 5 years,so we can get the best price with best service.

Shipment by Air: considering the expensive international freight,shipment by air is a good choice if the goods more than 100KG,note:it is door to airport,you need pick up the goods at airport.

Shipment by Sea: It is cheapest shipment way,people always choose it when the goods weight more than 1-2CBM at least,it is door to port,you have to pick up the goods at port.

delivery

Certifications

.png

Q1. Can I have a sample order for SMD LED?

A:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Samples need 3-5 days, mass production time needs 1-2 weeks.The actual time is determined by your quantity.

Q3. Do you have any MOQ limit for SMD LED order?

A: Low MOQ, 1 piece for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL,FedEx,UPS or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for SMD LED?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
