- Type:SMD LED
- Chip Material:InGaN
- Place of Origin:CN;GUA
- Certification:CE
- Certification:RoHS
- Emitting Color:white
- Power:0.06w
- Luminous Intensity:7-8lm
- Luminous Flux(lm):7-8lm
- Optical Attenuation(%):3
- Power Dissipation:0.2
- Viewing Angle(°):120
- Color Rendering Index(Ra):80
- Color Temperature:2800-3200K
- Operating Temperature(℃):-20 - 40
- Storage Temperature(℃):0 - 40
- Brand Name:YLL

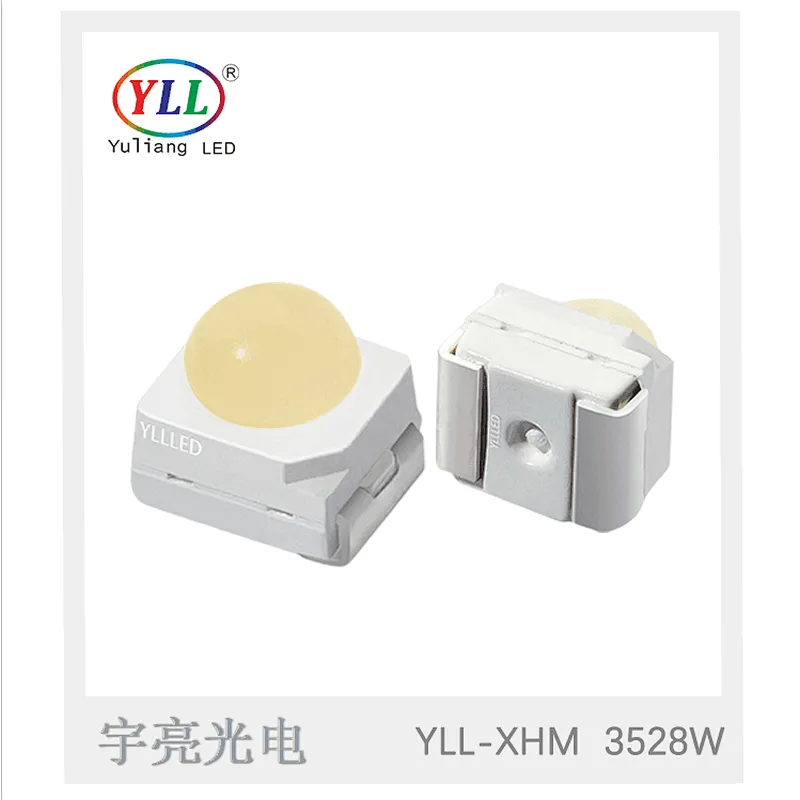

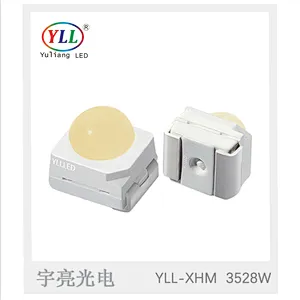

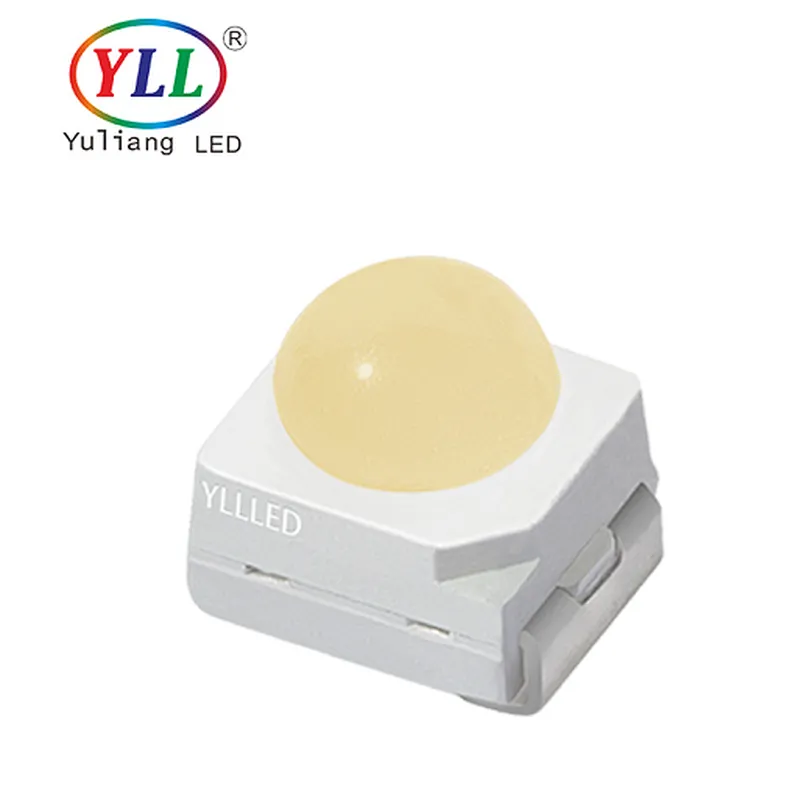

Super quality rohs & ce certification 3528 lens white color led chip
| Product Type | 3528 lens LED |
| Power | 0.06w |
| Emitting Color | white |
| Voltage | 2.8-3.4V |
| CCT | 2800-3200K |
| Brightness | 7-8lm |
| Current | 20mA |
| Beam Angle | 120° |
| Life Span | 50000hour |
| Warranty | 2 years |

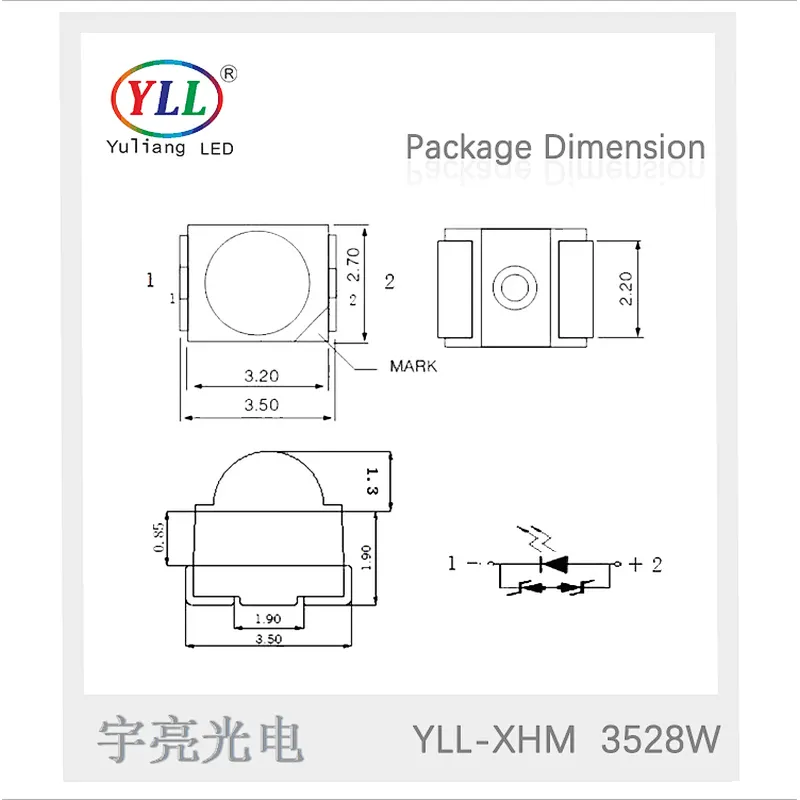

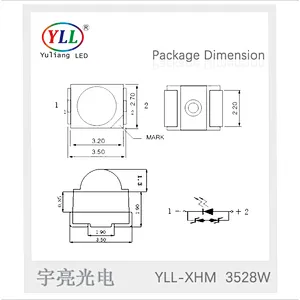

Package Dimensions:
Notes:
Tolerance is ± 0.25mm (.010”) unless otherwise noted.
Protruded resin under flange is 1.0mm(.04”) max.
Lead spacing is measured where the leads emerge from the package. Specifications are subject to change without notice.
Notes:
Luminous intensity is measured with a light sensor and filter combination that approximates the CIE (Commission International De L’Eclairage) eye-response curve.1/2 is the off-axis angle at which the luminous intensity is half the axial luminous and intensity.The dominant wavelength, λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.The IV guarantee should be added ±15%.
Packaging:
Method of Taping / Polarity and Orientation
Packing unit 2000pcs/reel
Shipment:
Shipment by Express: DHL,UPS,FEDEX,we working wth their for more than 5 years,so we can get the best price with best service.
Shipment by Air: considering the expensive international freight,shipment by air is a good choice if the goods more than 100KG,note:it is door to airport,you need pick up the goods at airport.
Shipment by Sea: It is cheapest shipment way,people always choose it when the goods weight more than 1-2CBM at least,it is door to port,you have to pick up the goods at port.
Shenzhen YuLiang Optoelectronic Technology Co., Ltd was established in 2001, is a national high-tech enterprise. Factory is mainly engaged in R&D, production and sales of ultra high brightness red, green, blue, yellow, orange, purple, pink, white, warm white, golden yellow, RGB, RGBW etc, a full range of single core piranha led, multi core piranha led, 0.5W piranha led, and SMD series 3535,3014 side view, 3014,3528, 2835,5730,5050,5060 SMD LED lamp beads, widely used in LED auto lamp, LED outdoor lamps, indoor lighting, commercial lighting and LED advertising logo light source field.
Q1. Can I have a sample order for SMD LED?
A:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Samples need 3-5 days, mass production time needs 1-2 weeks.The actual time is determined by your quantity.
Q3. Do you have any MOQ limit for SMD LED order?
A: Low MOQ, 1 piece for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL,FedEx,UPS or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for SMD LED?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on SMD LED product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
