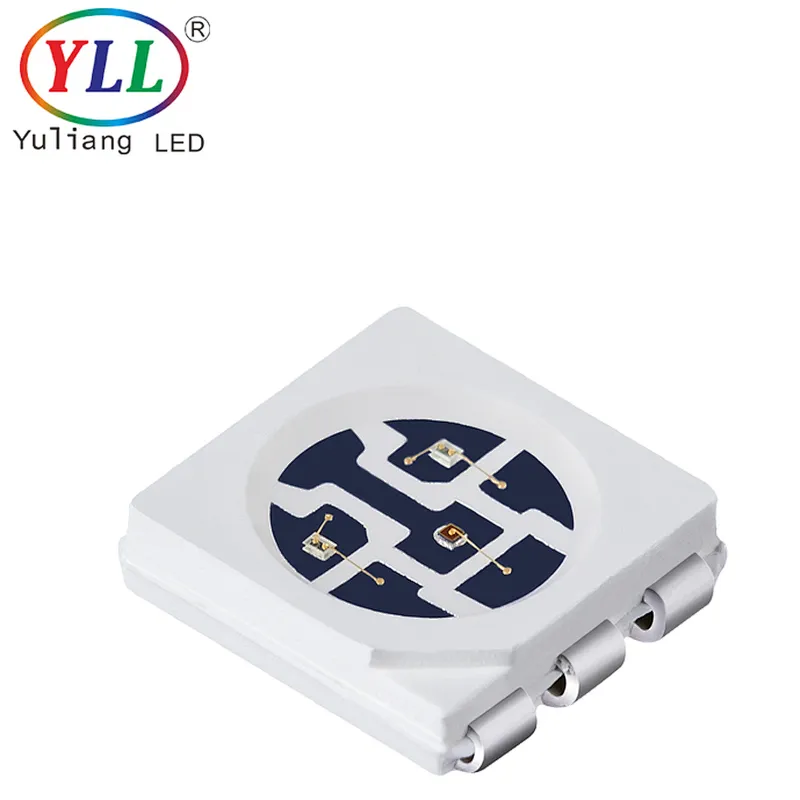

shenzhen yuliang led encapsulation series epistar chip/creechip 5050 rgb smd led chip for magic strip

shenzhen yuliang led encapsulation series epistar chip/creechip 5050 rgb smd led chip for magic strip

Price:: USD 0.03-0.04 / rolls
Delivery: FOB
Minimum order quantity: 3000 rolls
Supply Ability: 1000 rolls / Month
Country of Origin: SHENZHEN

Quantity:

Product Description

Type:SMD LED
Chip Material:AlGaInP
Emitting Color:Tri-Color(Red-Blue-Green)
Place of Origin:CN;GUA
Certification:CE
Certification:RoHS
Power:0.2w
Luminous Intensity:R:800mcd G:1600mcd B:500mcd
Luminous Flux(lm):R:800mcd G:1600mcd B:500mcd
Optical Attenuation(%):2
Viewing Angle(°):120
Color Rendering Index(Ra):85
Brand Name:YLL

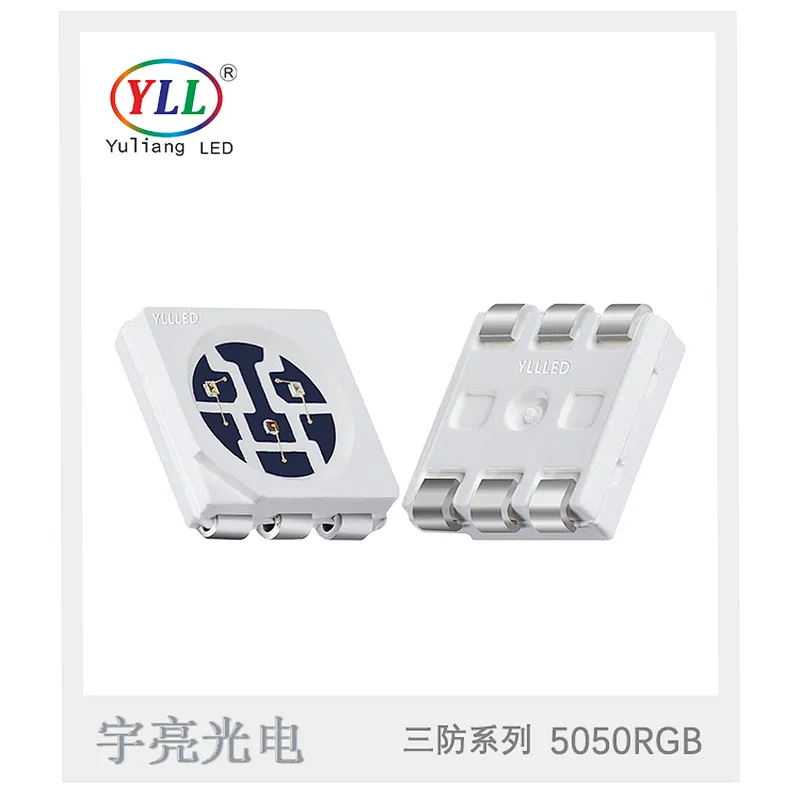

yuliang sex epistar chip (10mil) 0.2w 5050 rgb smd for 12V ws2811b SK6812 magic led strip

Product Description

	Product Information
	Model number	YLL-5060RGB
	Luminous	R:600-800mcd,G:1400-1600mcd,B:300-500mcd
	Wave Length	R:620-630nm,G:515-530nm,B:460-470nm
	Voltage	Red: 2.0-2.4V Green: 3.0-3.4V Blue:3.0-3.4V
	Current	20mA
	Lifespan	50000 hours
	Warranty	2 Years

Applications

Feature: --Moisture - proof --Dead Lamp - proof --Sulfide - proof --Medium and small power,high brightness --Low Impedance,Good Heat Dissipation	Application: --Flexible and Hard Strip Light --Led Module --Line Light --Point Light Source --Advertising sign Led Source

Feature:

--Moisture - proof

--Dead Lamp - proof

--Sulfide - proof

--Medium and small power,high brightness

--Low Impedance,Good Heat Dissipation

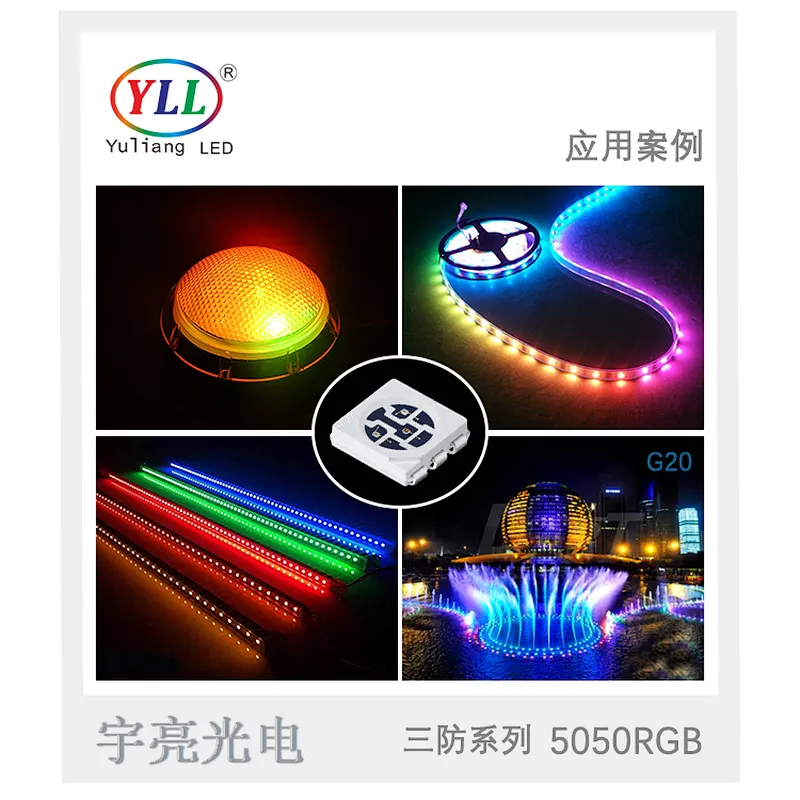

Application:

--Flexible and Hard Strip Light
--Led Module

--Line Light

--Point Light Source

--Advertising sign Led Source

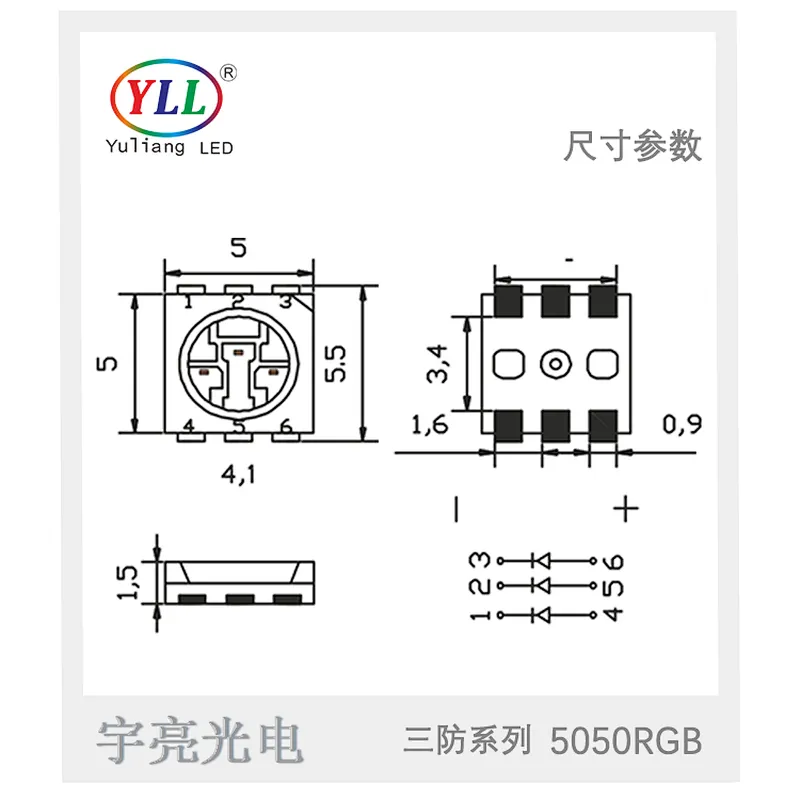

Product datasheet

	Notes: All dimensions are in millimeters (inches). Tolerance is ± 0.25mm (.010”) unless otherwise noted. Protruded resin under flange is 1.0mm(.04”) max. Lead spacing is measured where the leads emerge from the package. Specifications are subject to change without notice.

Notes:

All dimensions are in millimeters (inches).

Tolerance is ± 0.25mm (.010”) unless otherwise noted.

Protruded resin under flange is 1.0mm(.04”) max.

Lead spacing is measured where the leads emerge from the package.

Specifications are subject to change without notice.

5060 RGB1.png

Certifications

.png

1,According to the US Energy Star standard IES LM-80
Chip production is mainly from international companies (EPISTAR, CREE, OSROM), we have strengthened the integration of supply chain resources to do incoming inspection, process specifications, complete shipment inspection processes, and strive to assure product customers.

2,Outdoor lighting source research and development

Continue to provide innovative LED lamp for outdoor LED light industry, 5050 has been a successful mass protruding headlights beads, 5050RGBW lamp beads, 5050RGB lamp beads, lamp beads high was 5054,"three defenses"series 5050 lamp beads.

3,We serve industry more than 10 years of car lights

Car tail lights, brake lights, turn signals and so many well-known international brands, successfully developed the"Little Red Riding Hood"series 3528 projection headlights beads, bullet piranha light beads, big feet piranhas lamp beads, full-color RGB piranha lamp beads.

	1.R & D strength: _{We have more than 20 professional lamp R & D engineers, independent of the LED packaging laboratory, can achieve high and low temperature thermal shock test, anti sulfuration, moisture test, constant temperature and humidity, lm-80 standards 6000H continuous decay test etc., the products have been patent number 30.}

1.R & D strength:
_{We have more than 20 professional lamp R & D engineers, independent of the LED packaging laboratory, can achieve high and low temperature thermal shock test, anti sulfuration, moisture test, constant temperature and humidity, lm-80 standards 6000H continuous decay test etc., the products have been patent number 30.}

2.Production strength: _{More than 10 years LED package experience, more than 6000 square meters of modern led dust-free workshop, the company's first"three defenses"technology perfect solve SMD LED lamp bead high death rate of lamp, vulcanization, moisture absorption and other issues, truly realize the SMD beads (moisture-proof, anti sulfuration, death proof lamp).}

2.Production strength:
_{More than 10 years LED package experience, more than 6000 square meters of modern led dust-free workshop, the company's first"three defenses"technology perfect solve SMD LED lamp bead high death rate of lamp, vulcanization, moisture absorption and other issues, truly realize the SMD beads (moisture-proof, anti sulfuration, death proof lamp).}

	3.Technical strength: Pioneered the use of SMD beads secondary packaging technology realize 3528 convex head series (50-60 degrees) and 5050 convex head series (160-180 degrees) into mass production.

3.Technical strength:

Pioneered the use of SMD beads secondary packaging technology realize 3528 convex head series (50-60 degrees) and 5050 convex head series (160-180 degrees) into mass production.

4.Quality Assurance: Company in strict accordance with the ISO9001:2008 quality management system operation, the white light district in strict accordance with the U.S. Energy Star LM-80 IES standard production, a variety of products have passed the US. Energy Star LM-80 IES test, SGS, ROHS, EN62471 and other certification.

4.Quality Assurance:

Company in strict accordance with the ISO9001:2008 quality management system operation, the white light district in strict accordance with the U.S. Energy Star LM-80 IES standard production, a variety of products have passed the US. Energy Star LM-80 IES test, SGS, ROHS, EN62471 and other certification.

	5.Yu Liang commitment: We promise customers purchasing conventional color temperature products long-term stable supply of a bin, sampling in accordance with customer delivery is completed within 3 days, 5-7 days of completing the small batch orders, conventional products are completed within 1-2 days, response within 24 hours of customer complaint, timely, efficient handling of a series of problems faced by customers.

5.Yu Liang commitment:
We promise customers purchasing conventional color temperature products long-term stable supply of a bin, sampling in accordance with customer delivery is completed within 3 days, 5-7 days of completing the small batch orders, conventional products are completed within 1-2 days, response within 24 hours of customer complaint, timely, efficient handling of a series of problems faced by customers.

Payment&Shipment

Payment:

TT:(30% deposit and 70% payment before shipment)

Western Union: For some region,it is the best way for payment, but the service charge is a little high than other payments when the order reach 10,000USD.

Paypal: It is the best and quickerest way for trial orders in order to save time .

Shipment:

Shipment by Express:DHL,UPS,FEDEX,we working wth their for more than 5years,so we can get the best price with best service.

Shipment by Air:considering the expensive international freight,shipment by air is the good choice if the goods more than 100KG,note:it is door to airport,you need pick up the goods to airport ^ ^.

Shipment by Sea:It is cheapest shipment way,people always choose it when the goods weight more than1-2CBM at least,it is door to port,you have to pick up the goods to the port.

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products,

we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
