- Type:SMD LED
- Place of Origin:CN;GUA
- Color Temperature:2800-7000k
- Color Rendering Index(Ra):80
- Brand Name:YLL
- Model Number:2835 smd led
- Luminous Flux(lm):50-70lm
- Luminous Intensity:50-70lm
- Storage Temperature(℃):0 - 40
- Viewing Angle(°):120
- Chip Material:InGaN
- Certification:CE
- Certification:RoHS
- Operating Temperature(℃):-20 - 40
- Power:0.5w
- Emitting Color:white /worm white/nature white

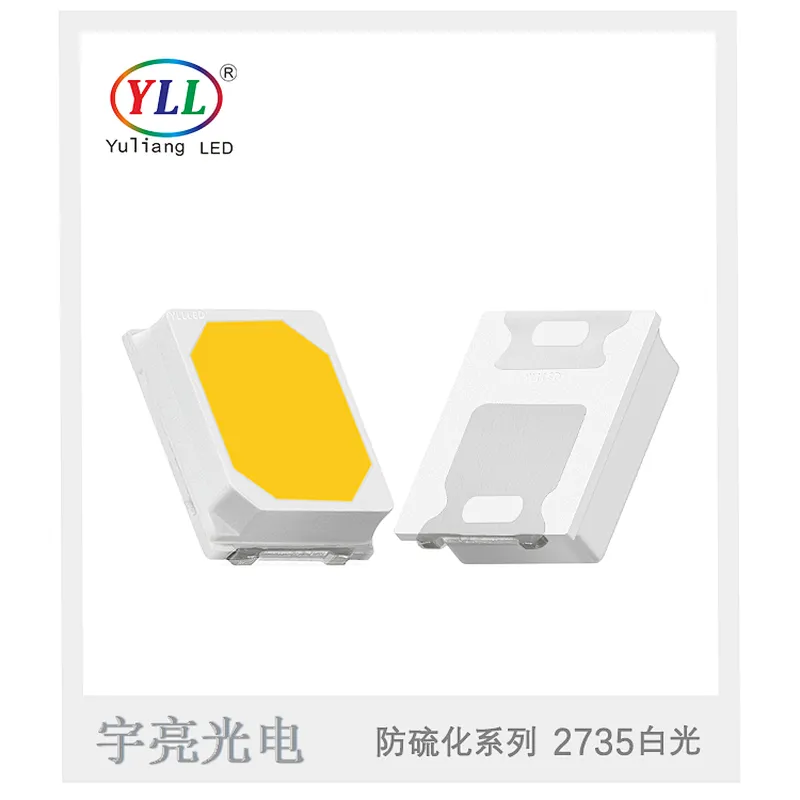

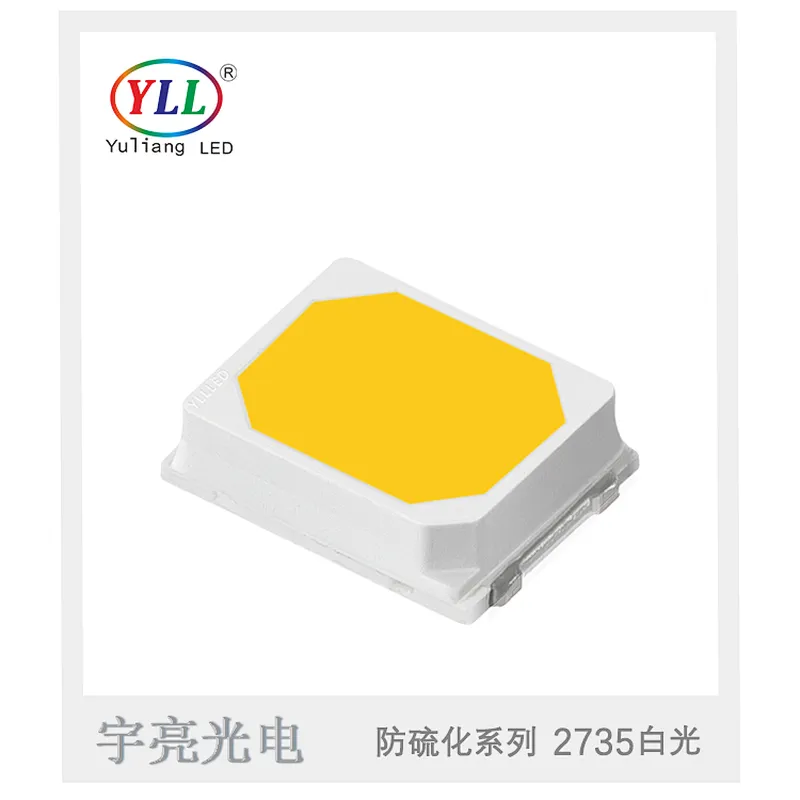

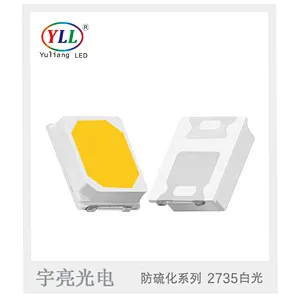

2835 smd led chip White Emitting Color and CE,RoHS Certification led chip 0.2w 0.5w and 1w smd 2538 led chips
SOME OF THE PRODUCTS WO COULD CUSTOMIZED FOR CUSTOMERS’SPECIAL REQUIRTMENT.

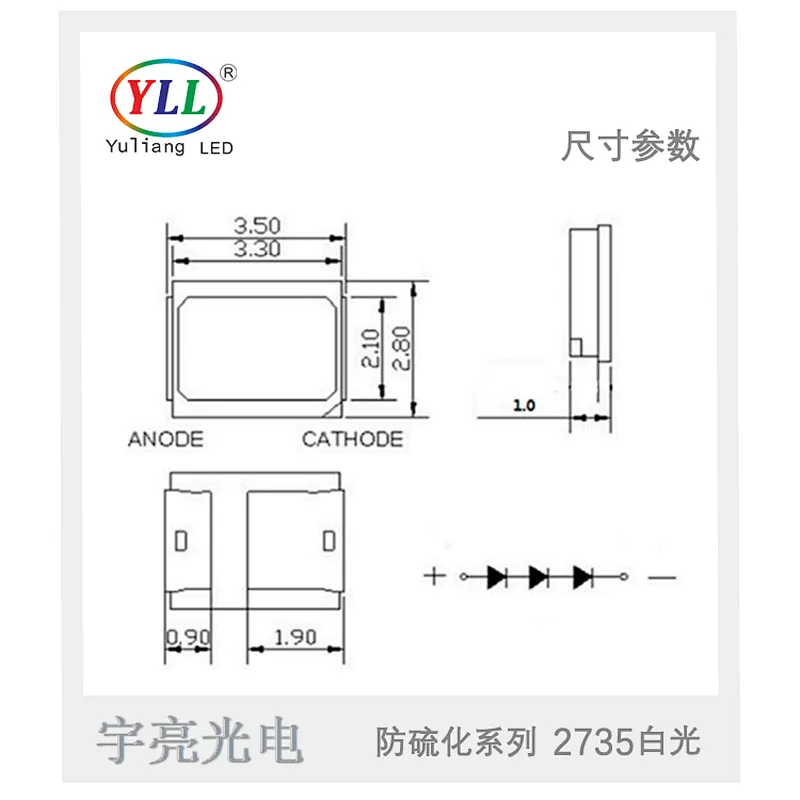

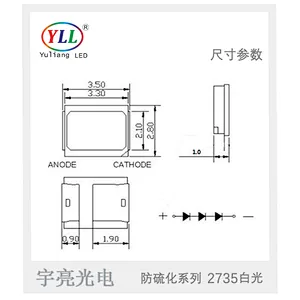

Notes
All dimensions are in millimeters (inches).
Tolerance is ± 0.25mm (.010”) unless otherwise noted.
Protruded resin under flange is 1.0mm(.04”) max.
Lead spacing is measured where the leads emerge from the package.
Specifications are subject to change without notice.
Main Features
Low and middle power, high brightness
Large beam angle
Good Heat Dissipation
Ultra Low Light Decay
Advantages
1.Long Lifespan 50000hours
2.Low Light Decay
3.Environmental protection,No Mercury.
4.Energy Saving
5.Fast Response Time, response in dozens of ns,safely.
6.Small Volume, Light Weight,Shock-proofing
7.High Lumens, Light Source Stable ,Low Heat Dissipation
8.Easy to adjust the light and color temperature
C h a r a c t e r s :-Medium power,high brightness-Wide Bean Angle-Low impedance-High light efficiency
-Wide Emitting Light Area
A p p l i c a t i o n :-LED Tube-LED Panel Light-LED DownLight-LED Auto Light-LED bulb-LED backlight ,
Yuliang 2835SMD LEDs are widely applied for Indoor Lighting( Fluorescent tubes, Led Strips, Downlights),
Commercial Lighting( Advertising Words, Lighting-Box), LED Backlight, Flexible led strips in Decoration Lighting and others.
1. What will be the delivery time ?
A: We have large quantities in stock for normal color size ,and for special color and size,it needs 3-5 days to customize.100k units is available for most of our products in normal color and size.
2. What will be the price terms ?
A: We can accept FOB,other terms we can discuss.
3. What will be the types of payment ?
A: The payments we can accept are L/C, T/T,Western Union,MoneyGram.
4. What is you chip brand ?
A :The chips we use usually are form American Cree and Taiwan Epistar .
WHO ARE WE?
Shenzhen Yuliang Optoelectronic Technology Co., Ltd is committed to creating highquality, affordable,well-designed and energyefficient LED lighting that make it easy for customers to sell, electricians to install
and endusers to save energy.
Founded in 2001, YLL has a vibrantly growing infrastructure of manufacturing facilities, and engineering
capabilities that ensure great product design and quality.
YLL has its own led package factory which is over 6000sqm and more than 30 automatic production lines for
LED well-designed, professional grade lighting.
In addition to great products, YLL also provides lighting design services to anyone who needs assistance. Feel
free to reach out to us on the phone, by email or on our website, and your query will get our due attention
and prompt reply.
Our Advantage
1.Energy saving, low power consumption, compared with the traditional lamps and lanterns can save electricity 60% 80%;High evenness, adopts imported optical guide plate and the atomization quality board, can make the LED light can make full use of and evenly spread, in order to achieve high brightness uniformity characteristics;
2.Long life LED energysaving lamps use theoretical service life of up to tens of thousands of hours, the ordinary incandescent lamp using life over 1000 hours.
3.The green environmental protection does not contain harmful elements such as mercury and lead, thanks to recycling and utilization, and won't produce electromagnetic interference, ordinary tubes containing mercury and lead 1. Energy saving, low power consumption, compared with the traditional lamps and lanterns can save electricity 60% 80%;High evenness, adopts imported optical guide plate and the atomization quality board, can make the LED light can make full use of and evenly spread, in order to achieve high brightness uniformity characteristics;
Our Promises
We promise that 1 bin will be stably supplied to those customers who purchase the regular
color temperature products in the long term. The samples as customers wanted will be led within 3days,
and a small batch order within 5-7days, regular products within 1-2 days. And complaints of customers will
be replied within 24 days, any problems will be promptly and efficiently solved.
Two-year Warranty
Return or replacement within two years if there are any defected product or malfunctioning product or broken products.
Exchange & Return Policy
1.The shipment cost should be taken by supplier if there have defected product or malfunctioning product or broken
product within two years.Replacement will be sent to you in your next order if you don’t want to return.
2. 0.3% free spare part for volume order,in the same time,we will give you replacement as compensation with next
order if faulty product rate reach to 0.3%.
Yuliang Growth History
Shenzhen Yuliang Optoelectronic Technology Co.,Ltd
In the Year 2001, the company founder Mr Shang Wuming established "Shenzhen Yuliang Optoelectronic Co.,ltd’ , at poineering initial stage, Yuliang company mainly engaged in LED lamp beads of domestic trade, successively established counters in Shenzhen Huaqiang electronic market, Baoan electronic digital market.
In the Year 2004, Yuliang Formally started the production, and the factory was located in dongquan new villiage Mingzhi,Longhua district,shenzhen, and changed its name to "Shenzhen YuLiang source electronic factory, mainly specialized in dip led, straw led, piranha LED , early has more than 30 employees, the monthly production capacity reached about 5 KK.
In the Year 2005,In May, Yuliang moved to the location Third Industry Area Bantian,Longgang distrcit,Shenzhen, Yuliang was the first to introduce full automatic production equipment such as full automatic solid crystal machines etc, and the mainly products are Piranha led, have 60 employees, and become one of the important manufactory in shenzhen for the Piranha LED.
In the Year 2007,in May, due to the development, Yuliang moved to HengChangRong Industrial area,DaLang Street,LongHua district,Shenzhen City. Yuliang insist to the high-end product line, Successively introduce Piranha LED full automatic solid crystal machine, full automatic soldering machine, full automatic Spectrophotometric color machine, the first one in shenzhen to have the full automatic piranha led sealing glue line, and become a medium packaging plant which have manufactory space 2000 square meters, and more than 100 employees,at the same time , our products obtain a series apperance invention patent,utility model patents, and passed the CE ROHS etc testing certificaitons.
In the Year 2008, Yuliang started to investigate and produce SMD, small trial production 3528 and 5050smd, at the same year,Yuliang introduced ERP System for divide the products and started to establish the foreign sales, and we do our best to spead our top products to all over the world.
In the Year 2009,Yuliang formally changed ites name to "Shenzhen YuLiang Optoelectric Technology Co., Ltd.", and obtain the general taxpayer qualification, the same year we established the cooperation relationship with Alibaba, made in China, global markets etc, and do great effort to promote our products to overseas.
In the Year 2010, LED Industry is under the rapid growth ! Yuliang held a series exhibitions all over china within 2years, Successively participated in Guangzhou led exhibition, Hong Kong Spring Lighting Fair, Shanghai International LED Expo, Beijing International LED exhibition etc International famous exhibitions, and become 2010Year Sponsor membership of Shanghai World Expo, and successfully obtained TUV factory inspection certification. 10 years, we signed a long-term cooperation agreement with EPISTAR, and become the mainland rare epistar agreement manufactory.
In the year 2011 , Yuliang successfully pass ISO9001:2008 quality management system certification, and received the honorary certificate, and our products passed the EU EN-62471 certification, at the same year, Yuliang Shanghai office set up.
In the year 2012, Yuliang successfully passed the national high-tech enterprises identified, at the end of the year 2012,Yuliang moved to over 6000square meters of new plant Building A1,Silicon Valley Power Industrial Park,Guiyue Road,Zhangge Village,Guanlan Town,Shenzhen City,China.
In the year 2013, Yuliang Estalibhed the independent packaging laboratories, and passed the U.S. Energy Star LM-80 certification, TUV certification, a variety of products obtain the appearance patents, utility model patents.
In the year 2014, thanks to all of our stuffs, Yuliang beclome a modern high-tech led enterprise, and become the priority light source supplier of LED for car/outdoor led light source.
In the year 2015, we embarked on a new journey, we strive to contribute our own strength to the human lighting.
Honesty is the best policy for long time business.Quality is the bridge between YLL and you.
Welcome for more information ↓↓↓
