- Light Source:LED
- Item Type:Panel Lights
- Place of Origin:CN;GUA
- Model Number:YLL-0032
- Brand Name:YLL
- Lamp Body Material:Aluminum
- Input Voltage(V):AC 100~240v
- Working Temperature(℃):-20 - 65
- CRI (Ra>):80
- LED Light Source:Epistar
- IP Rating:IP44
- Working Lifetime(Hour):5000
- Lamp Luminous Flux(lm):3600
- Warranty(Years):3
- Lamp Power(W):36
- Certification:CE
- Certification:EMC
- Certification:LVD
- Certification:RoHS
- Certification:SAA
- Certification:UL
- Lamp Luminous Efficiency(lm/w):100
- Color Temperature(CCT):2500~6500

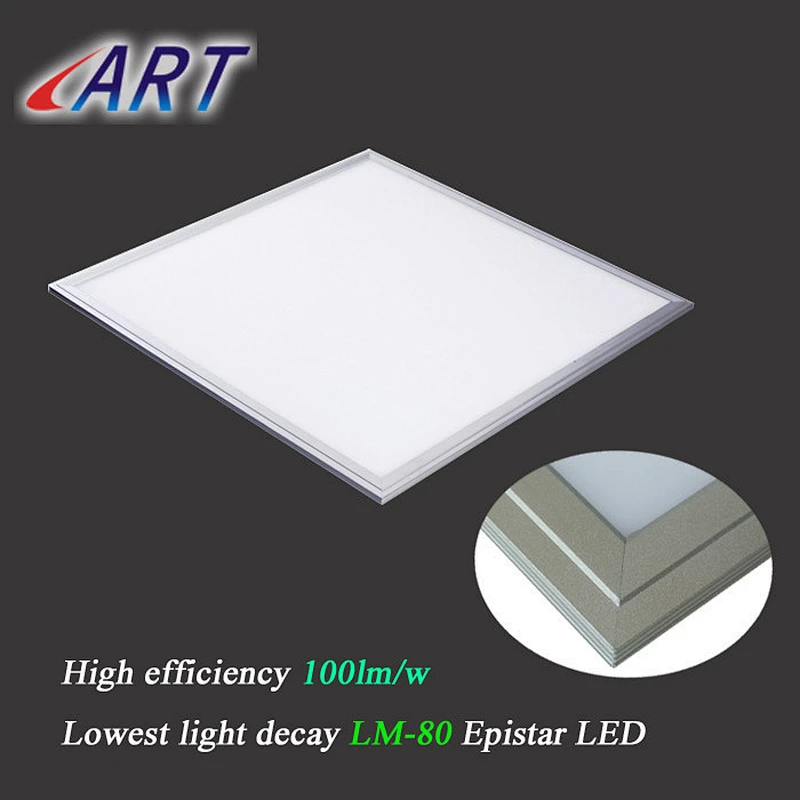

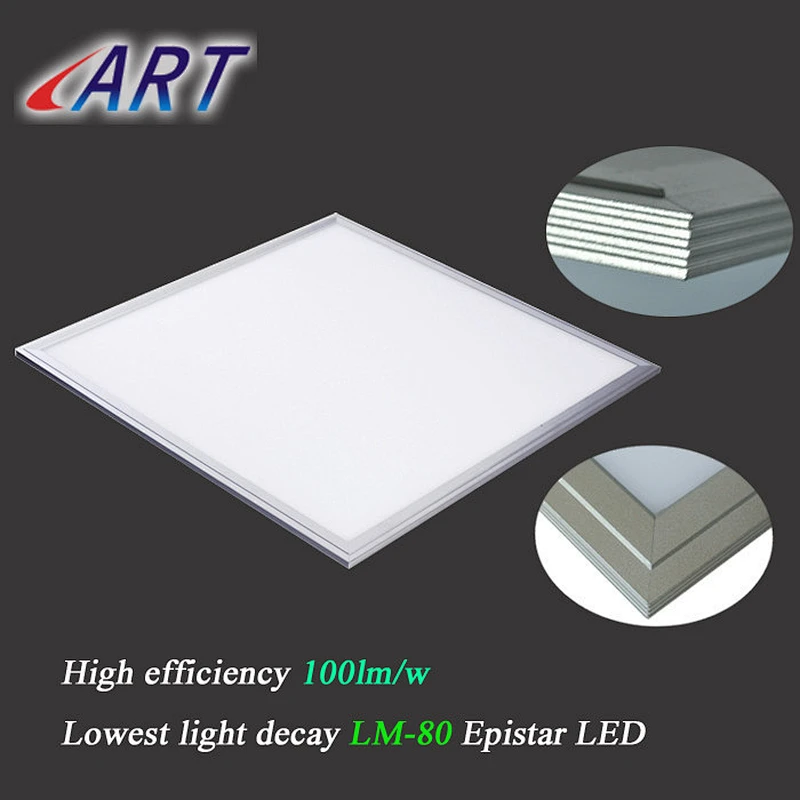

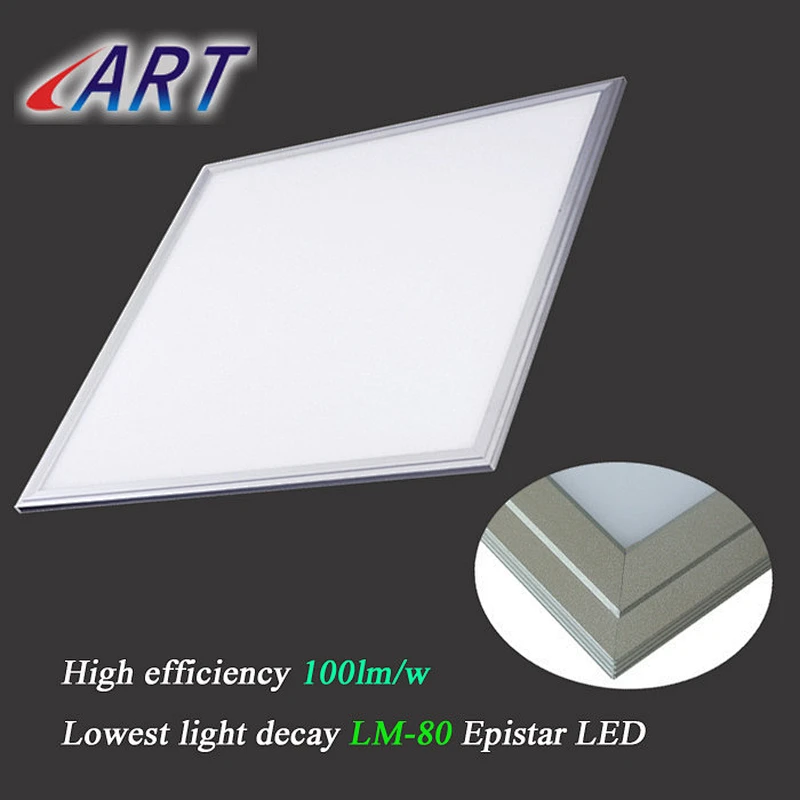

Newest 600x600 led panel ligh 100lm/w no light spot panel light led,within 1day lead time high quality led panel light
- 1 day lead time for sample order 50 sets
- 10% low light decay 6000Hrs lighting
- 100lm/w high luminous efficiency
COMPETITIVE ADVANTAGES
- FASTEST LEAD TIME WITHIN1 DAY
- HIGH LUMINOUS EFFICIENCY 100LM/W
- LOW LIGHT DECAY 6000Hrs<10%
1. Anodic Oxidation Sliver Frame,aluminum baseplate good to heat dissipation
2. Use extra bright SMD 4014 24~26lms, PMMA transmittance more than 92%
3. Excellent light-emitting uniformity with 8 years abundant light design experience
4. No interference,THD<10
FEATURES
1. 80%~90% energy saving than fluorescent lights
2. CRI:>80
3. No flickering
4. No RF interference
5. No UV radiation
6. Instant soft start
7. Easy installation, maintenance free
8. Wonderful design for excellent thermal management with aluminium and acrylic housing
9. Low power consumption, high intensity
10. Long lifespan, 50,000 hours
11. CE, RoHS compliant, UL/TUV/CE driver optional
PARAMETERS OF HIGH QUALITY LED PANEL LIGHT
| ITEM (MM) | POWER | VOLTAG(V) | LED TYPE | LIGHT EFFICIENCY | PF | CRI | CERTIFICATION | WARRANTY |
| 600X600X10 | 36W | AC100-240 | Epistar4014 | 100LM/W | >0.95 | >80Ra | CE,RoHS,LM-80 | 3-Year |
| 300x600x10 | 36W | AC100-240 | Epistar4014 | 98LM/W | >0.95 | >80Ra | CE,RoHS,LM-80 | 3-Year |
| 300x1200x10 | 42W | AC100-240 | Epistar4014 | 95LM/W | >0.95 | >80Ra | CE,RoHS,LM-80 | 3-Year |
Beam Angle Led lifespan Protection Level Materials |
170° >50,000Hrs IP50 Al Frame+ PMMA GLP+PC Diffuser Plate |
| 300x600x10mm 300x1200x10mm 600x600x10mm |
2.0Kg 3.6Kg 3.7Kg |
Environmental Requirements
Operation Temperature Operation Humidity Storage Temperature Storage Humidity |
-20℃~50℃ 10%~60%RH -30℃~60℃ 10%-70%RH |
1.MOQ: 6pcs(as one carton)
2.payment:
T/T, PAYPAL, Western Union, L/C, Escrow, Alibaba Trade Assurance
30% deposit before massive production and 70% balance before shipment.
3.Terms of delivery:EX Works.
4.Delivery time:
Within 1 workday for sample order(<50pcs)
3~5 workdays for trial order(<500pcs)
10~15 workdays for container order(<2000pcs)
5.Sample Cargos can be delivered to you within 3-5 workdays by DHL,UPS
6.Shipping port: Shenzhen, Mainland China
7.OEM/OEM Service is welcomed
LODISTICAL DATA
DIMENSION (mm) | QTY/CTN | N.W(KG)/CTN | G.W(KG)/CTN | PACKING SIZE (mm) |
295*595*10mm | 8pcs | 15.5 | 21 | 655*275*410mm |
295*1195*10mm | 6pcs | 20.4 | 26 | 1350*240*350mm |
595*595*10mm | 6pcs | 21 | 27 | 720*210*670 mm |
MORE PICTURES FOR PANEL LIGHT LED DETAILS
OUR COMMITMENT
1.Materials & products shouls be checked by QC strictly.QA offer the full inspection of goods before shipment to assure everything is OK.
2.100% inspection before delivery, long time burn-in test
3.Drop shipping is acceptable: We can send the goods to your client directly,the package are neutral packing
4.1) Warranty time: 3-year
2) Products returned within the warranty period must be CART Product
OUR PROMISES
1. Your inquiry related to our products or prices will be replied in 24hours
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM, any your customized lighting, we can help you to design and put into product
4. Protection of your sales area, ideas of design and all your private information
5. Best quality, competitive price and on time delivery
DEAR SIR OR MADAM,JUST INQUIRING OR EMAIL US IF YOU ARE INTERESTED IN OUR NEWEST PANEL LIGHT,WE WILL ARRANGE IT IMMEDIATELY TO MEET YOUR TARGET MARKET AND ACTUAL NEEDS.THANK YOU SO MUCH FOR YOUR ATTENTION AND SUPPORT !!!
