- Type:SMD LED
- Place of Origin:CN;GUA
- Color Temperature:1500-1700K
- Color Rendering Index(Ra):50
- Brand Name:YLL
- Model Number:YLL-2835 SMD LED
- Power Dissipation:0
- Luminous Flux(lm):18-20lm
- Luminous Intensity:18-20lm
- Storage Temperature(℃):0 - 40
- Optical Attenuation(%):0.2
- Viewing Angle(°):120
- Chip Material:InGaN
- Certification:RoHS
- Operating Temperature(℃):-40 - 80
- Power:0.2w
- Emitting Color:Amber

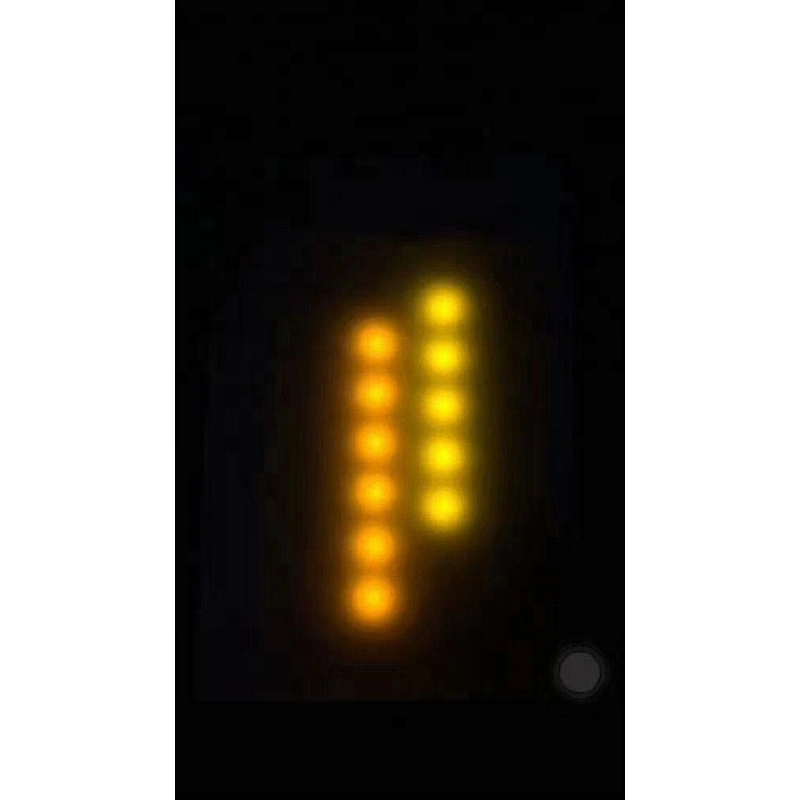

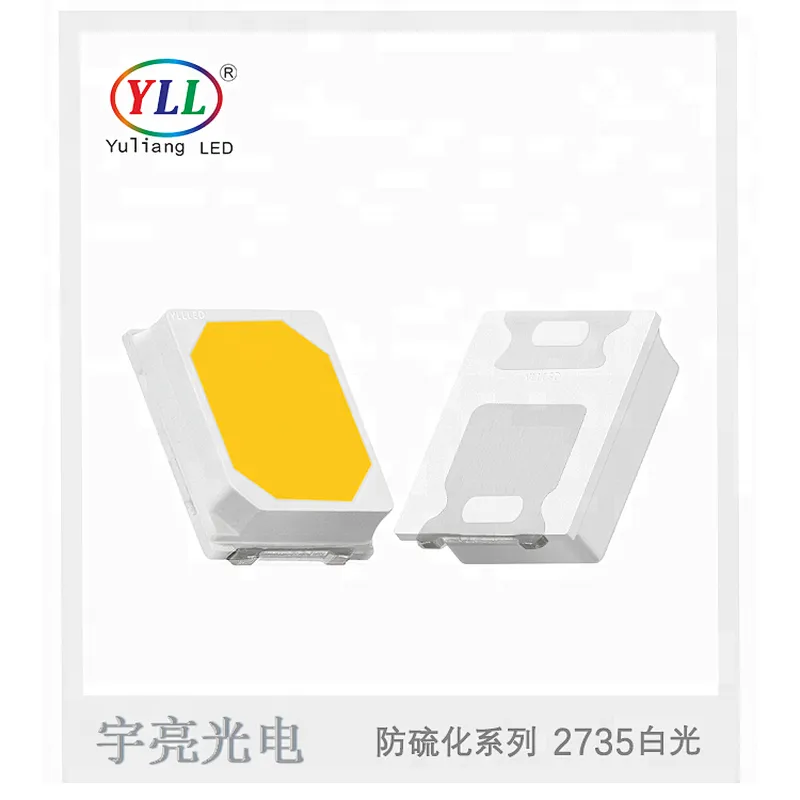

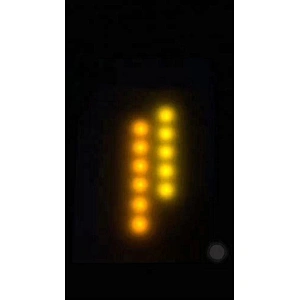

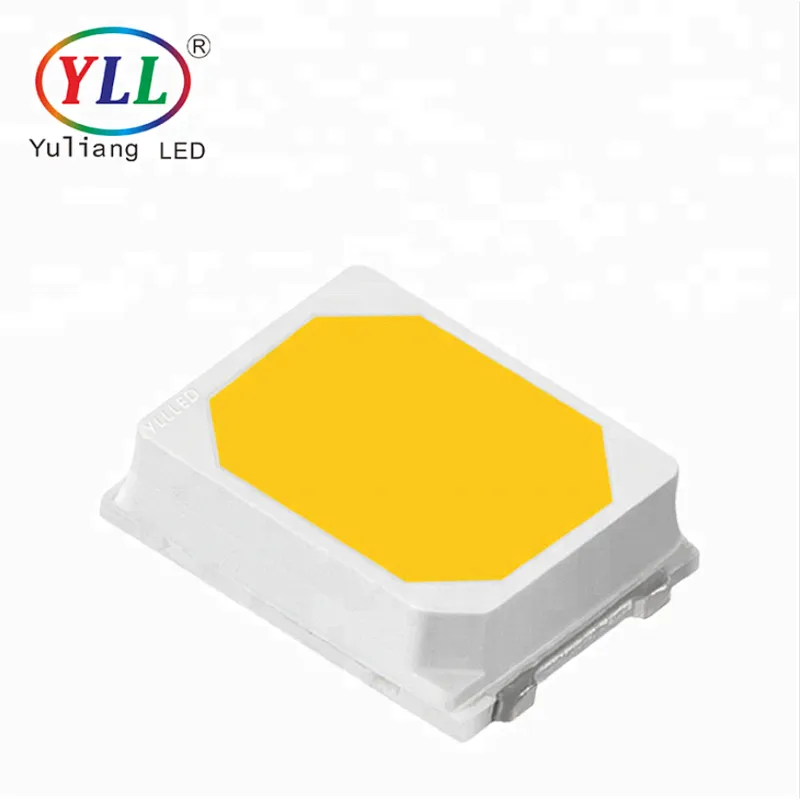

LM80 epistar led chip 0.2w amber 2835 1500-1700k smd led chip
Product Introduction
LM80 epistar chip 0.2w 2835 amber led 1500-1700k | |
Product data | |
item | LM80 epistar chip 0.2w 2835 amber led 1500-1700k |
Emitting Color | Amber |
Wavelength | 1500-1700k |
Luminous flux | 18--20LM |
CRI | 50Ra |
View Angle | 120degree |
Voltage | 2.8-3.2V |
Reverse Voltage | 5V |
Current | 60mA |
Lifespan | 50000 hours |
Warranty | 2 Years |
Size | 2.8*3.5*1.0mm |
Feature | |
-mid-power high brightness -wide beam angle -low impedance -high light efficiency -wide emitting light area | |
Application | |
-LED light tube/LED panel light -LED down light -LED Auto light -LED light ball -LED backlight | |
Notes

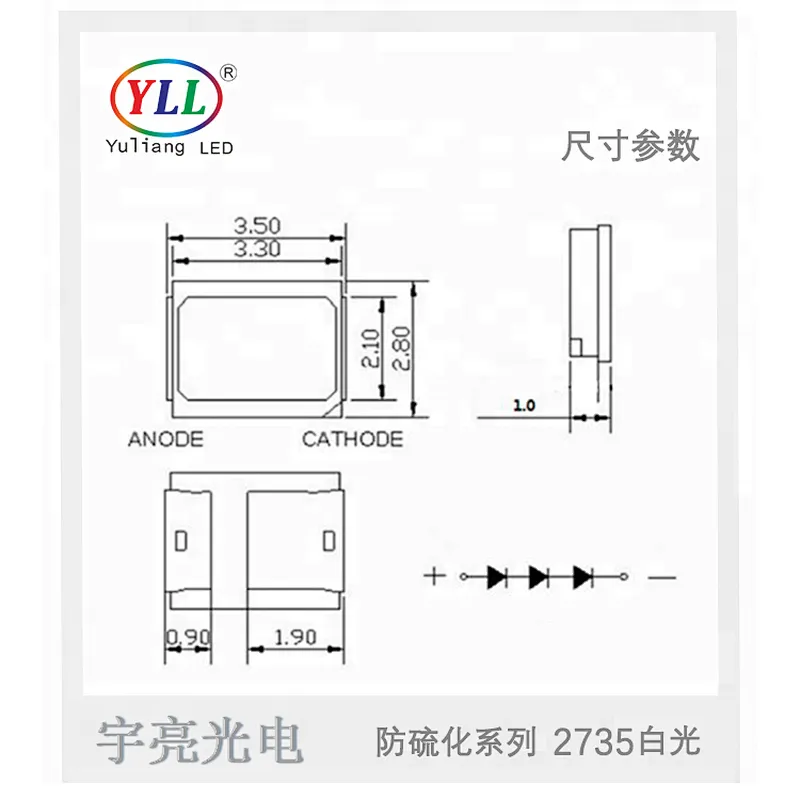

All dimensions are in millimeters (inches).
Tolerance is ± 0.25mm (.010”) unless otherwise noted.
Protruded resin under flange is 1.0mm(.04”) max.
Lead spacing is measured where the leads emerge from the package.
Specifications are subject to change without notice.

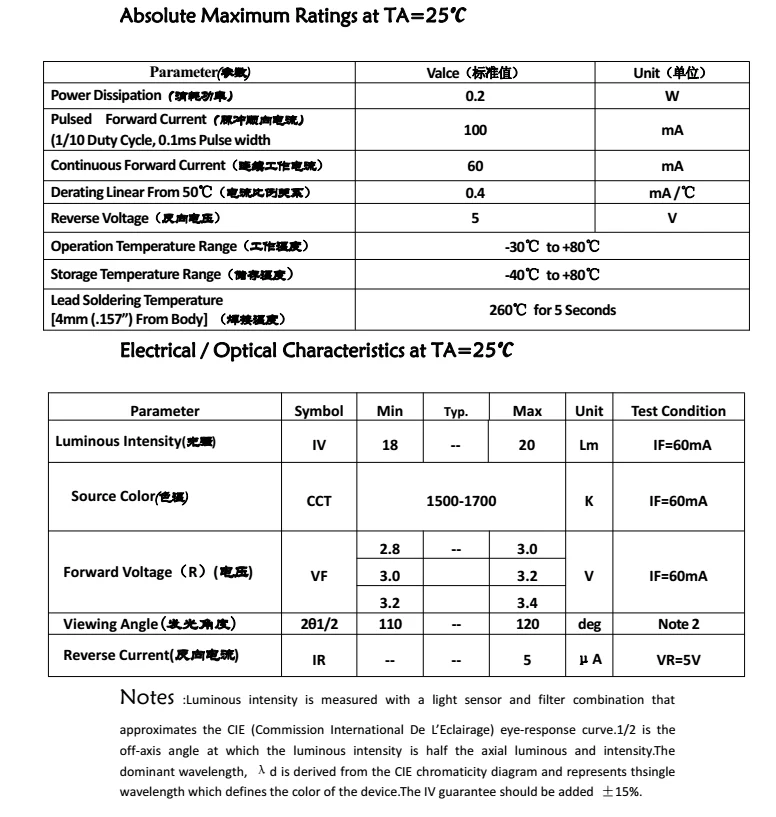

Absolute Maximum Ratings at TA=25℃

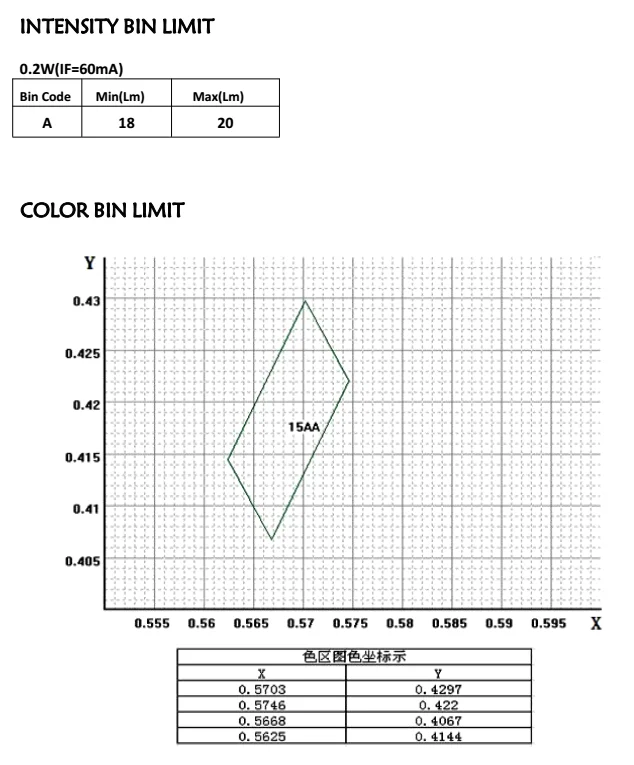

Optical Characteristics

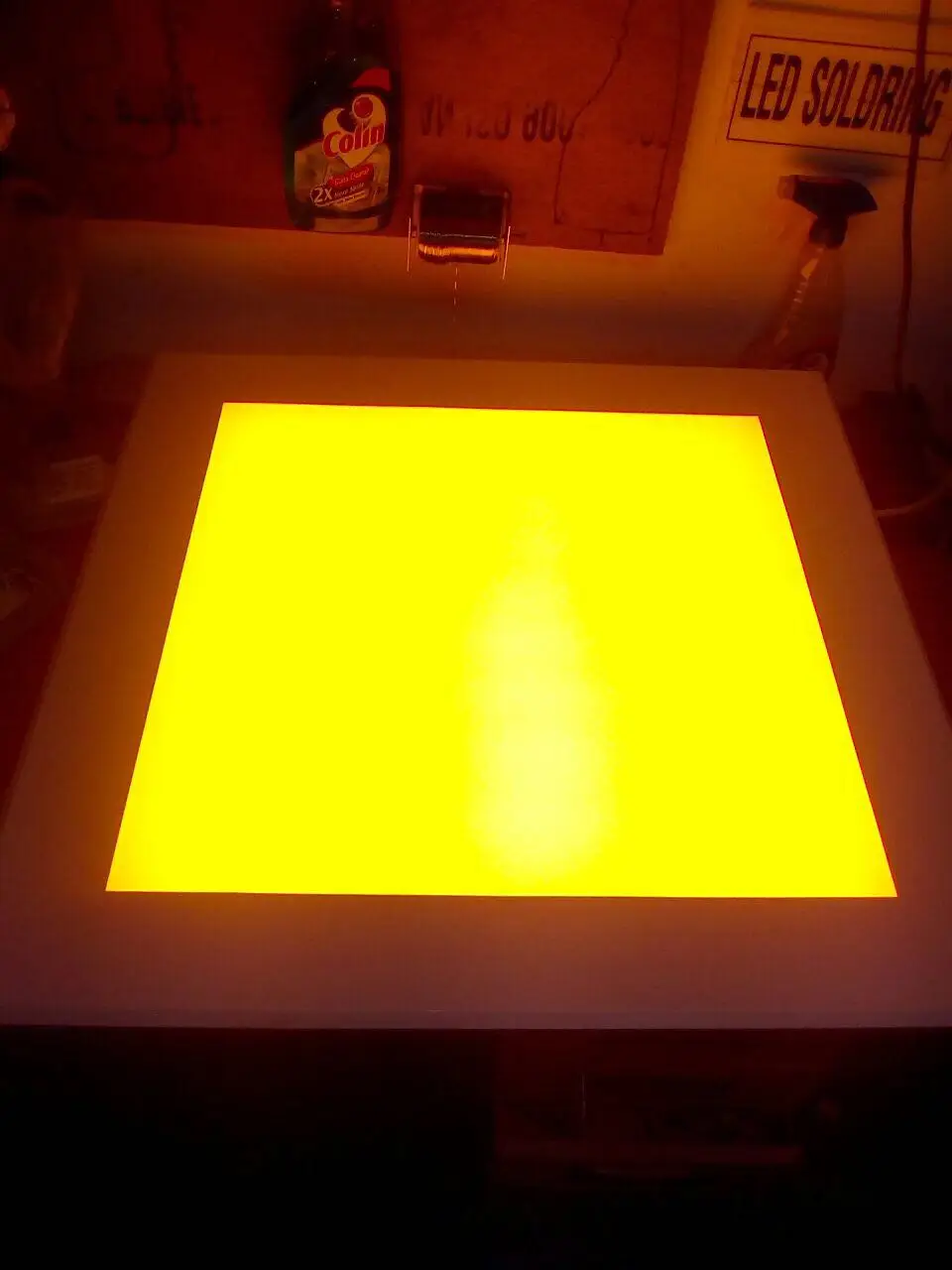

Product application:
