- Type:SMD LED
- Place of Origin:CN;GUA
- Color Temperature:460-470nm
- Color Rendering Index(Ra):0
- Brand Name:Yuliang
- Model Number:YLL-SFXL01--5050color-smd
- Power Dissipation:0.2
- Luminous Flux(lm):3-4lm
- Luminous Intensity:800-1200mcd
- Storage Temperature(℃):0 - 40
- Optical Attenuation(%):0.3
- Viewing Angle(°):120
- Chip Material:InGaN
- Certification:CE
- Certification:RoHS
- Emitting Color:Blue
- Operating Temperature(℃):-20 - 40
- Power:0.2W

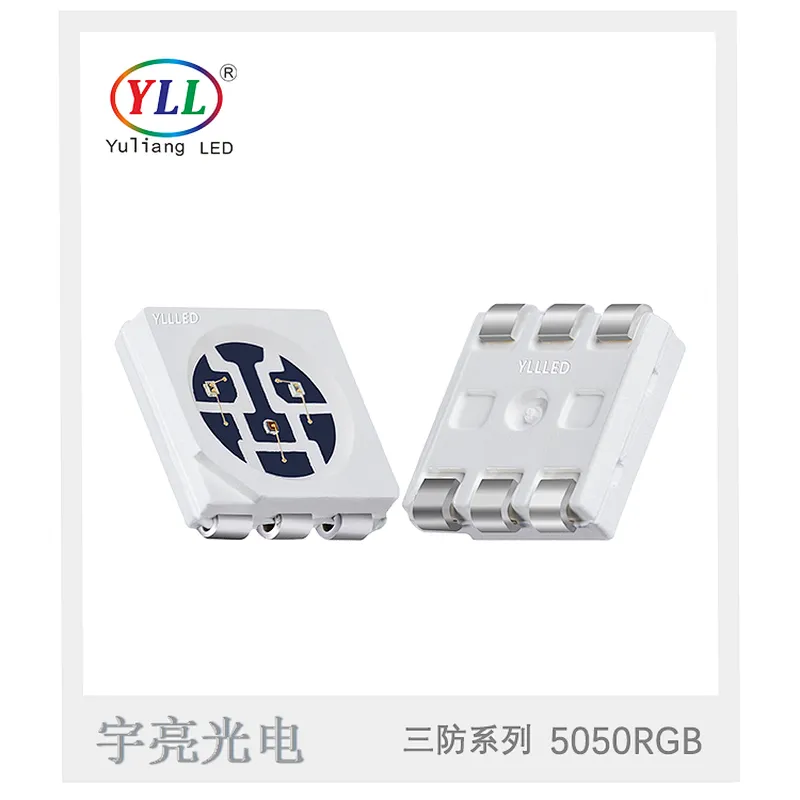

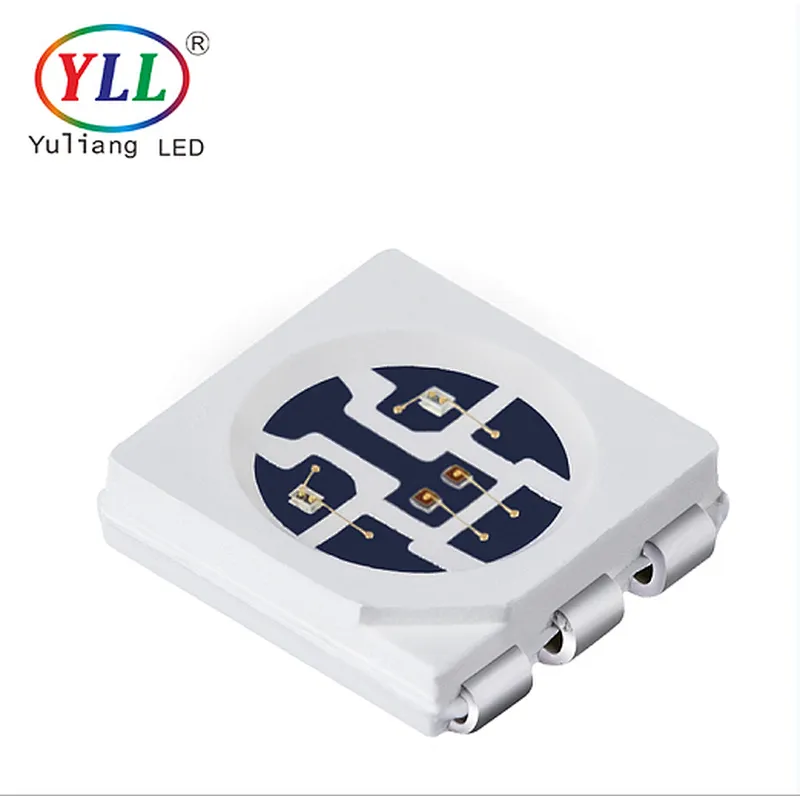

0.2w blue color 5050 smd led chip with epistar chip and free samples!
Product data | |
Emitting Color | blue |
Luminous flux | 3-4 |
View Angle | 120degree |
Voltage | 2.8-3.4V |
Current | 60mA |
Lifespan | 50000 hours |
Warranty | 2 Years |
Feature | |
* Moisture-proofing, Dead lamp -proofing, Anti vulcanization * Good heat dissipation *Ultra low light degradation
| |
Application | |
LED lamp tube Soft and hard lamp strip Point source Led module Led outdoor lighting
| |

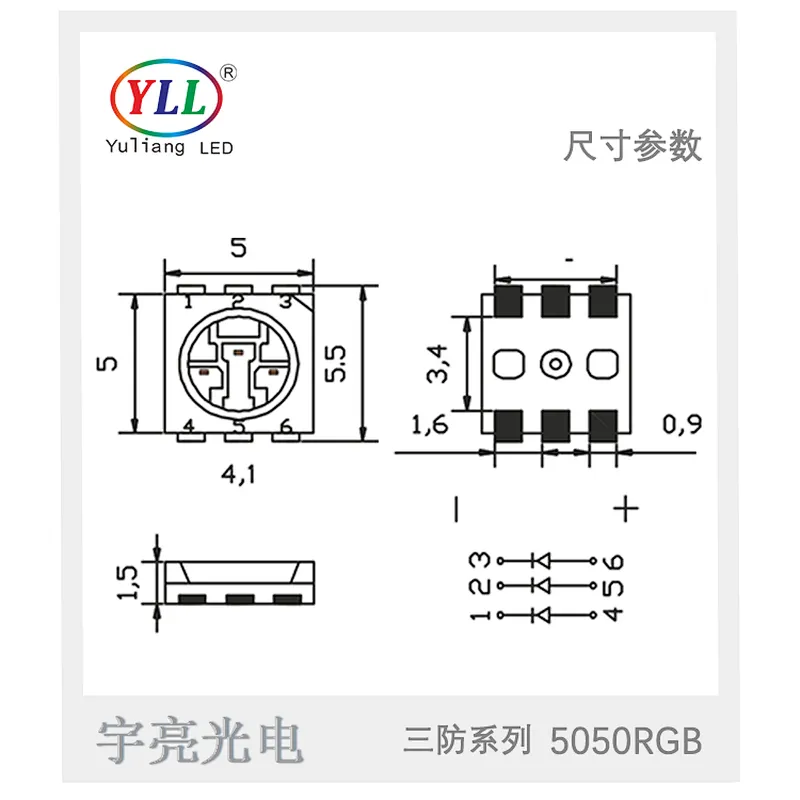

Notes
All dimensions are in millimeters (inches).
Tolerance is ± 0.25mm (.010”) unless otherwise noted.
Protruded resin under flange is 1.0mm(.04”) max.
Lead spacing is measured where the leads emerge from the package.
Specifications are subject to change without notice.
Absolute Maximum Ratings at TA=25℃
Electrical / Optical Characteristics at TA=25℃
Notes
. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE (Commission International De L’Eclairage) eye-response curve.1/2 is the off-axis angle at which the luminous intensity is half the axial luminous and intensity.The dominant wavelength, λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.The IV guarantee should be added ±15%.
Optical Characteristics
OTHER HOT SELL!!
Yuliangestablished in 2001,we located in Silicon Valley Power Industrial Park Guanlan Town,Shenzhen,China, Yuliang has a building which Covering an area of 7000 square meters,Factory production workshop for anti-static, dust treatment, Production process in strict anti-static control,we have 10 engineers who have more than 10 years work experience in LED lighting area ,and we have 200 workers.
Yuliang focus on developing and manufacturing indoor LED lighting,including LED Strip kit,LED Tube,LED Panel,LED Bulb,LED Spotlight,LED Downlight and LED module.
Yuliangalso focus on developing,manufacturing and sell LED light source,like SMT SMD LED Series,Super flux LED,COB LED,High power LED.
Yuliangsuccessfully passed the German TUV factory inspection in 2010, and all of products have CE Certification and ROHS compliance for Europe market,and ETL,UL for USA market.As a result of our high quality products and outstanding customer service,we have gained a global sales network reaching German, Belgium, Switzerland,France,Italy and USA
Yuliang signed a cooperation agreement with the Taiwan EPISTAR in 2010,in the same year,we become one of the partner of Taiwan Epistar!and the raw materials used in products are mainly import from Japan,Singapore,USD and Taiwan.
Honesty is the best policy for long time business.Quality is the bridge between YLL and you.
