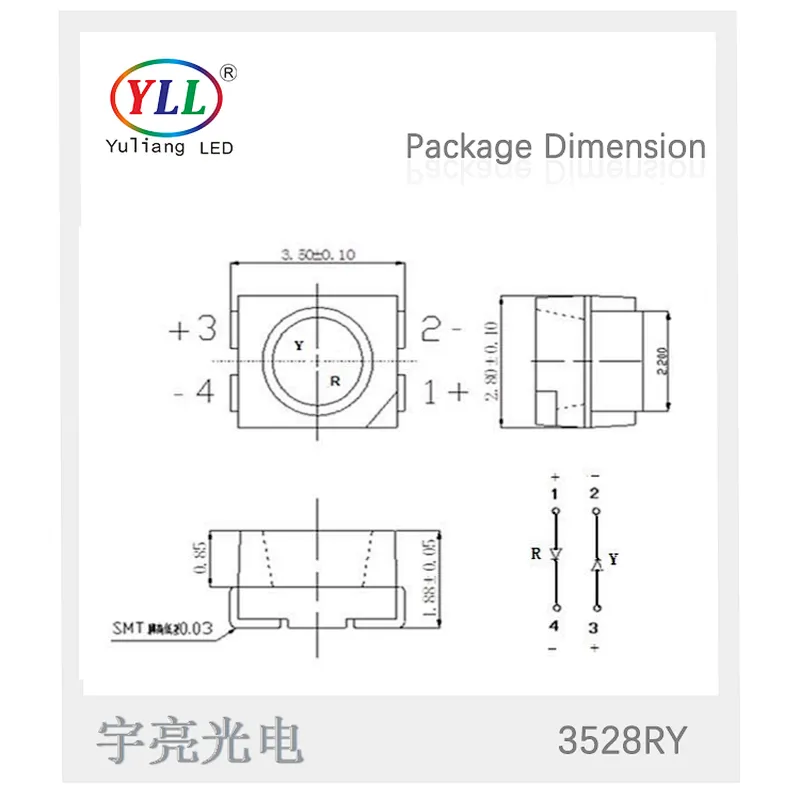

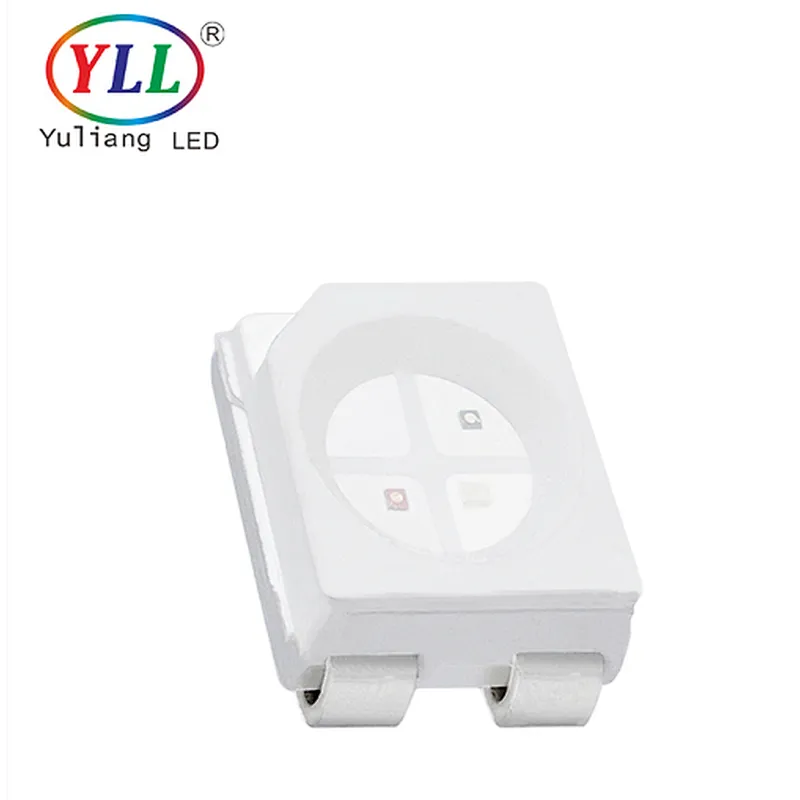

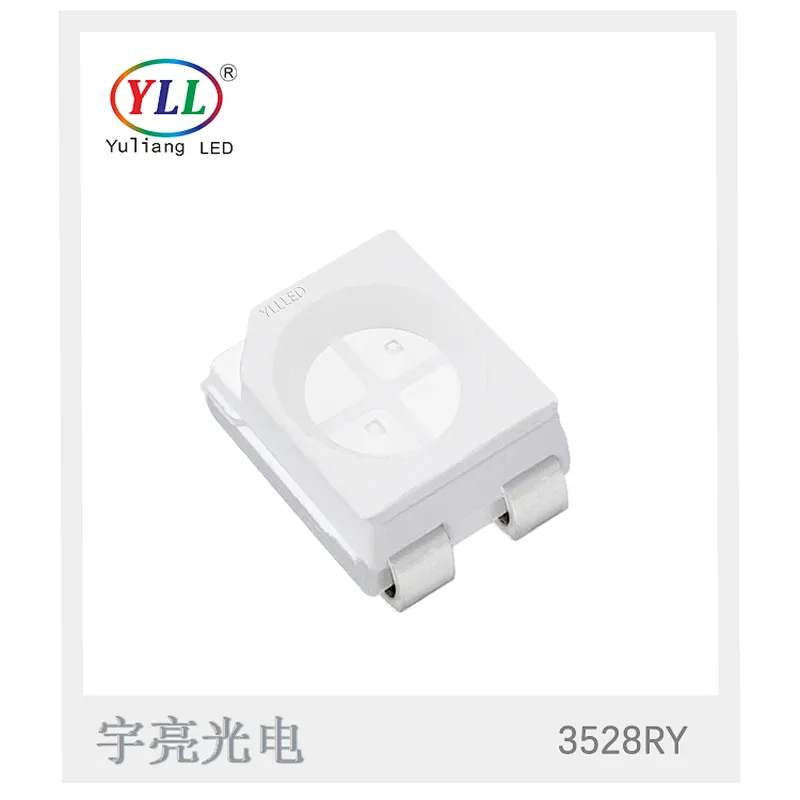

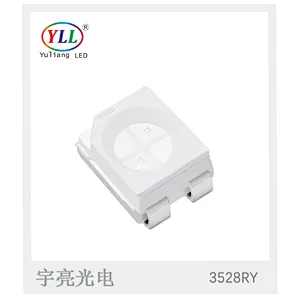

Epistar chip 0.1W SMD LED 3528 rgb LED chip

Brand Chip

Yuliang RGB LED smd 5050 use Epistar CREE brand LED diode, high lumen, strong anti-static ability, strong anti-attenuation ability, good consistency and not dead light.

sophisticated equipment



Technical operators, first-class equipment in the industry, ensure the quality of smd led, better brand imported welding wire equipment,.

improve efficiency, reduce the defective rate.

Splitting

Import machines from Japan, high speed splitting,about 60K/hrs.Intelligent full-point identification and positioning system can recognize stents and control the amount of glue, high speed.stability, maneuverability, and durability, which ensures precision and density.

Sorting &Typing

0.1V 0.2V 0.5V sorting, The vibration disc is used to send the material, equipped with a large capacity storage device, and the SMD LED electrical parameters are tested. It can arrange the polarity automatically, automatically select and eliminate the unqualified products, and also cooperate with the workers to control the quality, so as to make each SMD LED color sorting.

Thank you for using Shenzhen Yuliang Optoelectronics Co., Ltd. LED series products, in order to enhance your understanding of our company's product characteristics, to facilitate you to master its characteristics during use, to minimize or avoid unnecessary factors caused by human factors Damage or performance mismatch. Hereby explai

1. Material confirmation

Is the LED BIN rating of the feed matched? For example: voltage CIE BIN brightness and other parameters are the same level, the same level should be used together. Whether the positive and negative polarities meet the requirements, whether the different foot positions meet the requirements. If the same level of LED is not applied to the same item, its applicability should be evaluated first. (If the different voltage BINs are used together, the brightness may be different, and different CIE BINs may use the luminescent colors together to make a difference).

2. Packing and storage

Avoid moisture entering the inside of the LED before opening the package. It is recommended that the SMD series of LEDs be stored in a desiccant drying cabinet. Storage environment temperature range 5-30 degrees, humidity does not exceed 50%.

3. Preventive measures after opening the package

After unpacking, take the whole roll dehumidification measures as much as possible, and dehumidify the conditions: baking at 70 degrees for 4-12 hours. The dehumidified material should be used as soon as possible (within 24 hours). Remaining material should be sealed or placed in an environment with 10-40 degrees humidity and no more than 30% humidity.

4. Operational notes

This product can only be rewelded at most twice and after the first reflow, it must be cooled to room temperature before the second reflow can be performed. It is recommended that the reflow temperature range is 200-240 degrees. During the operation process, the material can not be taken directly by hand. There is sweat on the hand, and the sweat on the surface of the silica gel has optical pollution, affecting the light. In addition, the silica gel is relatively soft, and hand squeezing will cause the dead lamp to be broken. It is not recommended to mount LEDs on a bent circuit board. Avoid rapid cooling during soldering. Avoid any form of mechanical force or excessive vibration during LED solder cooling. After soldering, do not bend the circuit board. During rework or single-material work, the surface of the colloid cannot be squeezed with tweezers. Because silica gel is relatively soft, squeezing the colloid with tweezers can lead to wire breakage, which can damage the chip and cause it to die. In batch operations, the suction nozzle smaller than the inner diameter of the product will cause the nozzle to punch the silicone, causing the gold wire to break and the chip to be pressed and die. It is not advisable to carry out soldering for the repaired LED. If it is unavoidable, double-head soldering iron should be used. However, it is necessary to confirm in advance whether the LED characteristic will be damaged after the repair.

5. Electrostatic Protection

Electrostatic protection LED is an electrostatic sensitive electronic device. Various measures should be taken to avoid static electricity. For example: Wear an electrostatic ring during use. All devices, equipment and instruments should be grounded. It is recommended to test the assembled LED product to check whether the LED is damaged by static electricity.

6. Cleaning

It is recommended that isopropyl alcohol be used to clean the LEDs. If using other solvents for cleaning, make sure that the solvent does not affect the epoxy, silicone, or stent silver layers. Ultrasonic cleaning is not recommended to avoid damage to the LED. If it is unavoidable, please perform a pre-test beforehand to confirm whether it has adverse effects on the LED or potential problems.

7. Other considerations

Long-term exposure of the LED to sunlight or occasional exposure to ultraviolet light may cause yellowing of the gel. In order to ensure the photoelectric performance of the LED, please keep the surface of the LED lighting area clean and avoid fingerprints or other foreign objects covering. When designing the circuit, reverse voltage or excessive current in the switching process should be prevented from impacting the LED instantaneously. During use, avoid sharp tools such as tweezers touching the silicone gel section.

Shenzhen yuliang Technology Co.,Ltd

1.Perfect production line to guarantee perfect quality.

2.Own the LED special dust-free, anti-static workshop.
3.Formed a number of world-class United States ASM automatic machine crystalline solid,
4.ASM automatic soldering machines, H120 automatic LED light colour scanner make sure the quality

Our services

1.Your related inquiry will be replied in 24 hours.

2.Your information for us will be protected strictly.

3.Customized package and product available.

4.Free samples are availale,3 years guarantee time.

5.After sales service stay a super position.

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 5-7 working days.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less

than 0.2%.

Secondly, during the guarantee period, we will send new lights with new order for small quantity. For

defective batch products, we will repair them and resend them to you or we can discuss the solution i

ncluding re-call according to real situation.
