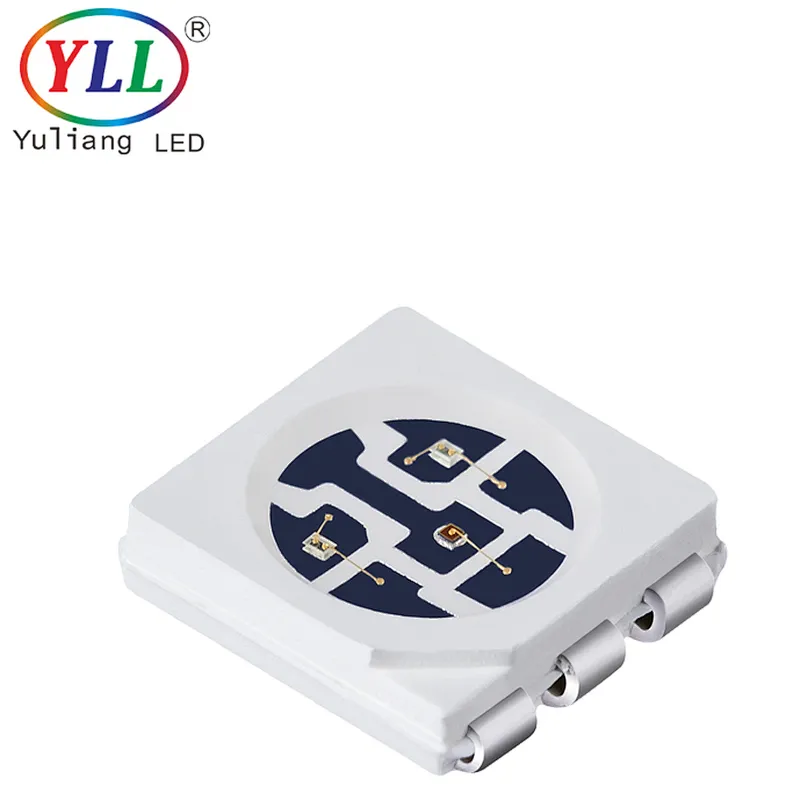

electronic component led smd red green amber led chip

electronic component led smd red green amber led chip

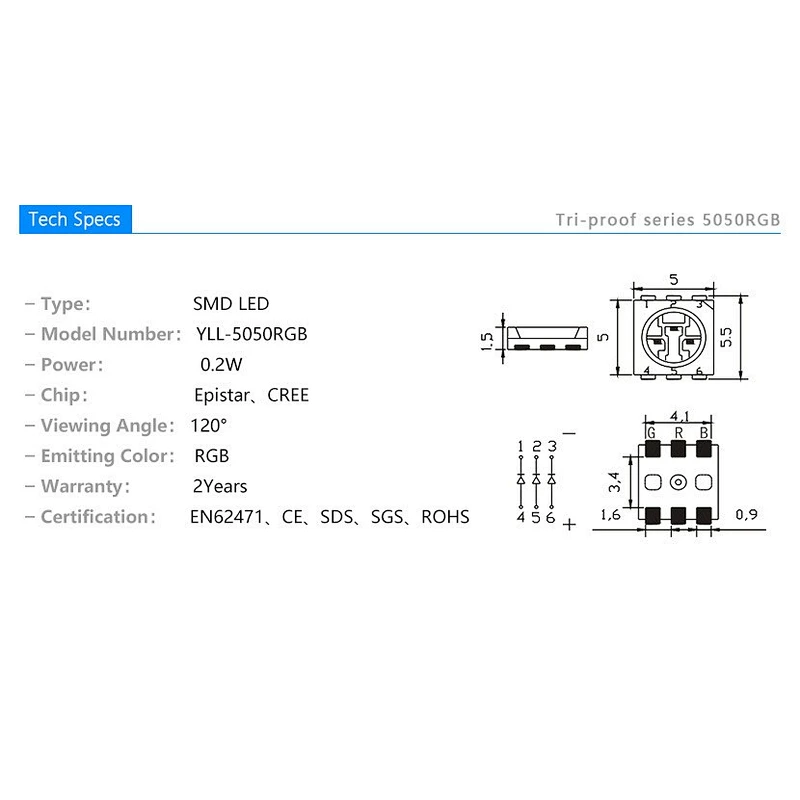

 Feature:

      ◆Applications：   Interior Decoration Lighting

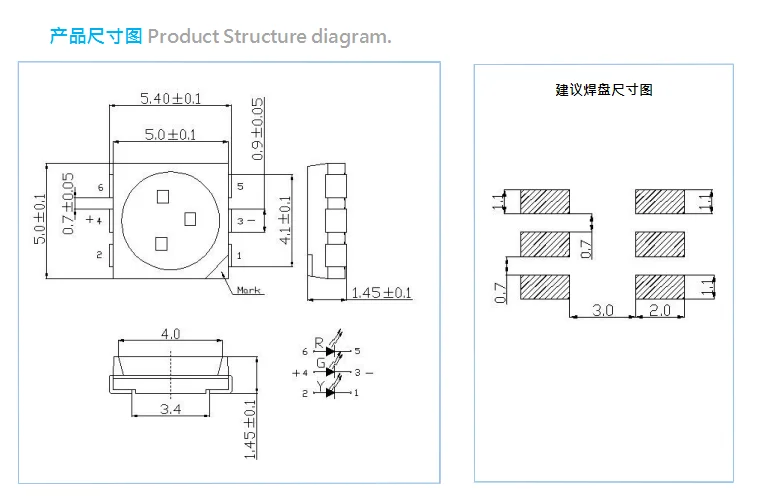

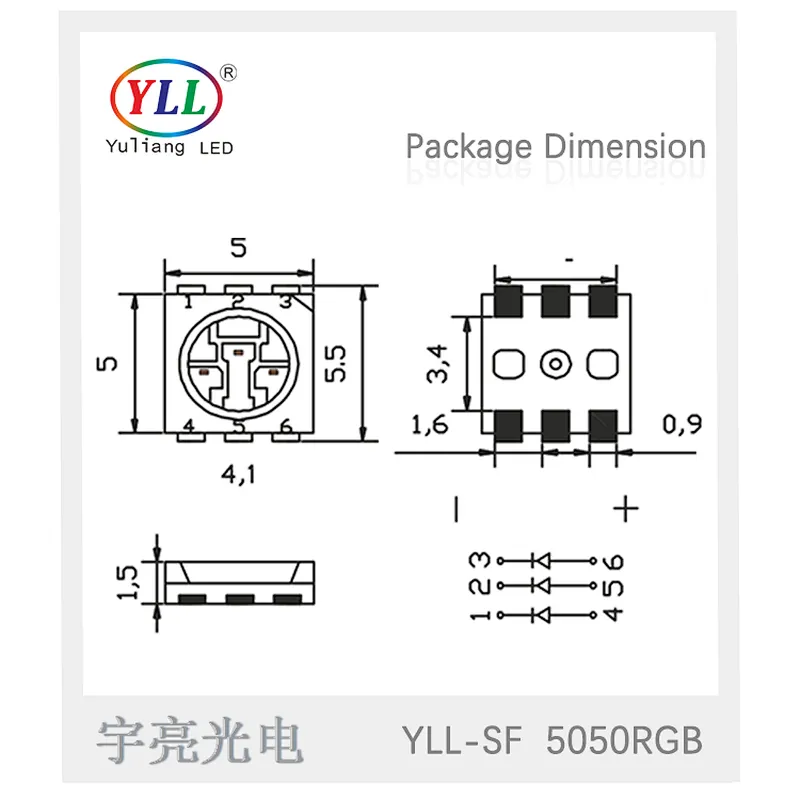

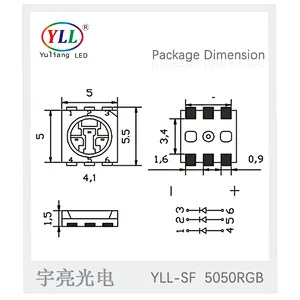

      ◆Size(mm):5.0*5.0mm（mm）

      ◆ Low Power LED 0.2W

      ◆Suitable for all SMT assembly And solder process.

      ◆Moisture sensitivity level: Level 5a.

材质说明Material Description



型 号 Part No.	芯片材料Chip Materials	胶体类型LensType
YLL-T50RGY-3-CJ-01	InGaN / AlGaInP	Transparent colloid   （透明胶体）

极限参数范围值Absolute Maximum Ratings at TA=25℃



参数（Parameter）	符号（Symbol）	值（Rating）	单位（Units）
消耗功率 （Power Dissipation）	Pd	180	mw
连续工作电流(Continuous Forward Current)	IF	20*3	mA
顺向脉冲电流Pulsed Forward Current (1/10Duty Cycle, 0.1ms Pulsewidth）	IFP	30*3	mA
反向电压 （Reverse Voltage）	VR	5	V
静电 （Electrostatic Discharge ）(HBM)	ESD	1000	V
操作温度 （Operating Temperature）	Topr	-30 to +80	℃
存储温度 （Storage Temperature）	Tstg	-30 to +85	℃
结温 (Junction Temperature)	Tj	≤125	℃



备注（Note）:



脉宽 0.1ms,周期 1/10 （1/10 Duty cycle, 0.1ms pulse width.）

光参数特性Electrical / Optical Characteristics at TA=25℃

Note:

1. 1/2is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value1/2
2. Theabove luminous flux measurement allowance tolerance is ±15%.
3. Theabove Color Rendering Index measurement allowance tolerance is ±2
4. Theabove forward voltage measurement allowance tolerance is ±0.1V±0.1V

1、According to the US Energy Star standard IES LM-80

chip production is mainly from international companies (EPISTAR, CREE, OSROM), we have strengthened the integration of supply chain resources to do incoming inspection, process specifications, complete shipment inspection processes, and strive to assure product customers.

2、Outdoor lighting source research and development

continue to provide innovative LED lamp for outdoor LED light industry, 5050 has been a successful mass protruding headlights beads, 5050RGBW lamp beads, 5050RGB lamp beads, lamp beads high was 5054,"three defenses"series 5050 lamp beads.

3、we serve industry more than 10 years of car lights

car tail lights, brake lights, turn signals and so many well-known international brands, successfully developed the"Little Red Riding Hood"series 3528 projection headlights beads, bullet piranha light beads, big feet piranhas lamp beads, full-color RGB piranha lamp beads.

Shenzhen Yu Liang Optoelectronic Technology Co., Ltd. was established in 2001, is a national high-tech enterprises. Factory is mainly engaged in research and development, production and sales of ultra high brightness red, yellow, orange, blue, green, purple, pink, light, white light, warm white, golden yellow light RGB to RGBW such as a full range of single core piranha led, multi core piranha led, power 0.5W led piranha, and SMD series 3014 side luminous, 3014,3528, 2735,5730,5050 SMD LED lamp beads, widely used in LED lamp, LED outdoor lamps, indoor lighting, commercial lighting, LED light source field advertising logo.Factory has the world's leading automatic LED packaging production line, more than 10 LED industry over ten years of experience in engineering and technical personnel and senior management, modern LED packaging workshop area of more than 6000 square meters, with scientific management, excellence, customer trust for the company's quality policy, and continuously meet customer demand LED series of products.

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

A: Low MOQ, 1pc for sample checking is available

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

A: Yes, we offer 2-5 years warranty to our products.

Contact: Iris Lei
