- Type:SMD LED
- Chip Material:InGaN
- Place of Origin:CN;GUA
- Certification:CE
- Certification:RoHS
- Emitting Color:white
- Power:0.2W
- Luminous Intensity:18-22lm
- Luminous Flux(lm):18-22
- Optical Attenuation(%):0.5
- Power Dissipation:0.2
- Viewing Angle(°):120
- Color Rendering Index(Ra):85
- Color Temperature:2958±87K, 4123±137K, 6275±255K
- Operating Temperature(℃):-30 - 80
- Storage Temperature(℃):0 - 40
- Brand Name:YLL

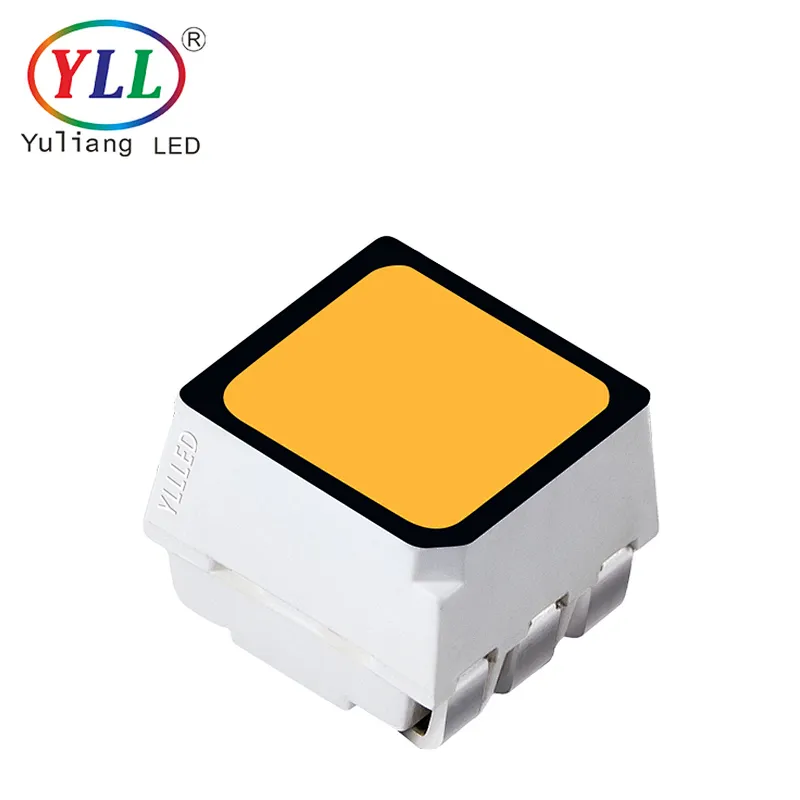

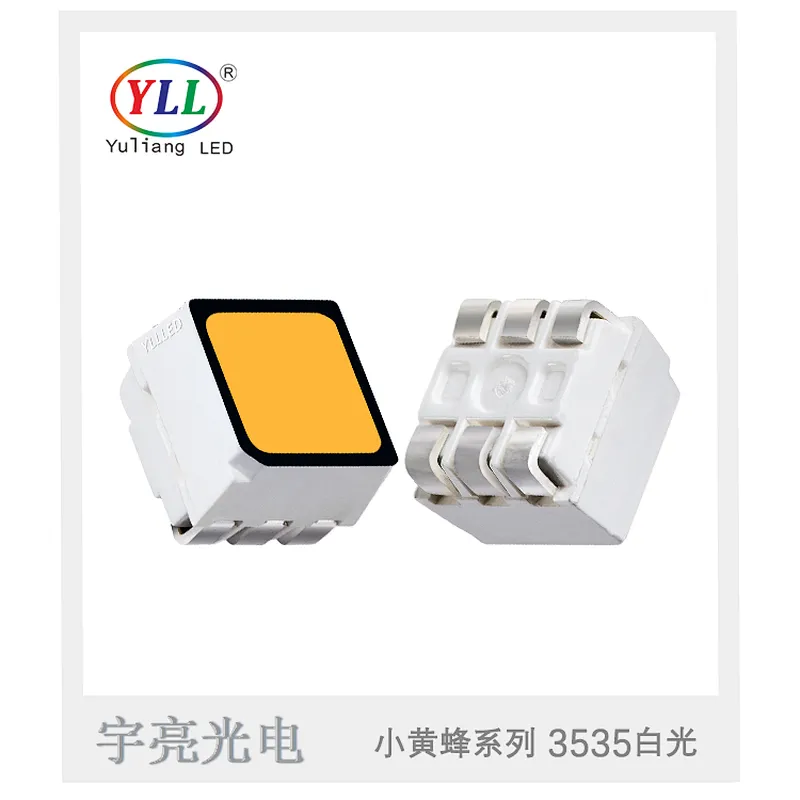

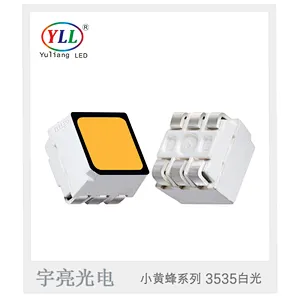

China new innovative product white color epistar chip 0.2w 3535 smd led chip
| Product Type | 3535 |
| Power(W) | 0.2 |
| Emitting Color | white |
| Voltage(V) | 2.8-3.4 |
| Color Temperature(K) | 2958±87K, 4123±137K, 6275±255K |
| Brightness(lm) | 18-22 |
| Current(mA) | 60 |
| Beam Angle(°) | 120 |
| CRI(Ra) | 80-85 |
| Life Span(hour) | 50000 |
| Warranty | 2 years |
Feature:Moistureproof, Waterproof, Prevent dead light, Anti-sulfuration, Good heat dissipation, Ultra-low luminous decay

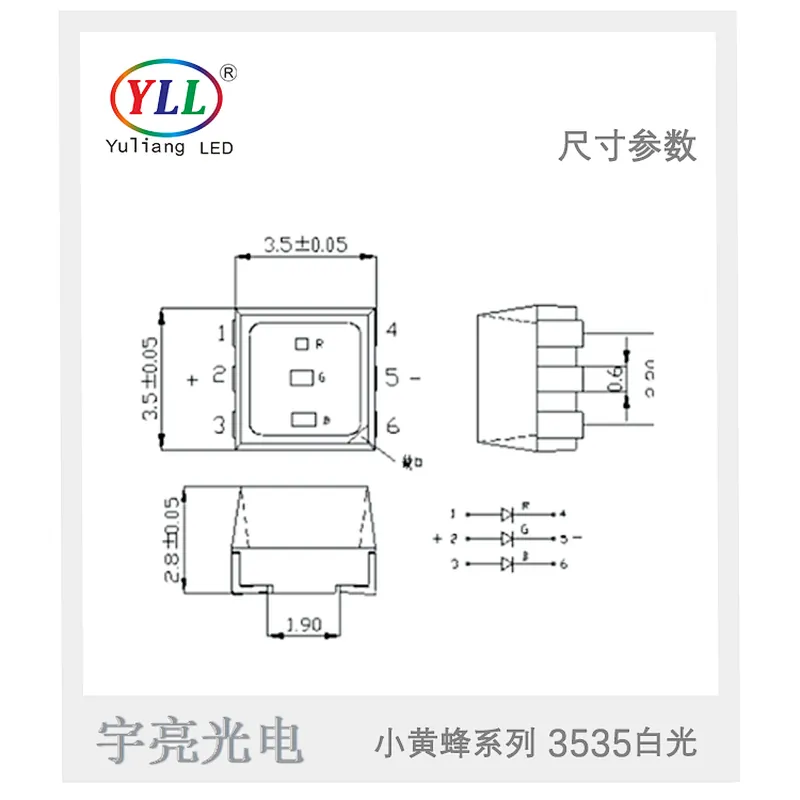

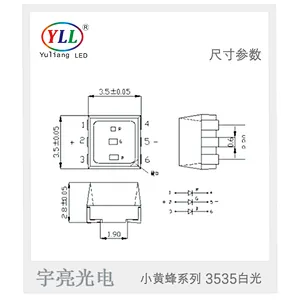

Package Dimensions:
Notes:
Tolerance is ± 0.25mm (.010”) unless otherwise noted.
Protruded resin under flange is 1.0mm(.04”) max.
Lead spacing is measured where the leads emerge from the package. Specifications are subject to change without notice.
| Parameter | Valce | Unit |
| Power Dissipation | 0.2 | W |
Pulsed Forward Current (1/10 Duty Cycle, 0.1ms Pulse width | 100 | mA |
| Continuous Forward Current | 60 | mA |
| Derating Linear From 50℃ | 0.4 | mA /℃ |
| Reverse Voltage | 5 | V |
| Operation Temperature Range | -30℃ to +80℃ | |
| Storage Temperature Range | 0℃ to +40℃ | |
Lead Soldering Temperature [4mm (.157”) From Body] | 260℃ for 5 Seconds | |
| Parameter | Symbol | Min | Typ. | Max | Unit | Test Condition |
| Luminous Intensity | IV | 18 | -- | 20 | LM | IF=60mA |
| 20 | 22 | |||||
| Viewing Angle | 2θ1/2 | 110 | -- | 120 | deg | Note 2 |
| Source Color | CCT | 6275±255 | K | IF=60mA | ||
| 4123±137 | ||||||
| 2958±87 | ||||||
| Color rendering index | Ra | 80 | -- | 85 | IF=60mA | |
| Forward Voltage(R) | VF | 2.8 | -- | 3.0 | V | IF=60mA |
| 3.0 | 3.2 | |||||
| 3.2 | 3.4 | |||||
| Reverse Current | IR | -- | -- | 5 | μA | VR=5V |
Notes:
Luminous intensity is measured with a light sensor and filter combination that approximates the CIE (Commission International De L’Eclairage) eye-response curve.1/2 is the off-axis angle at which the luminous intensity is half the axial luminous and intensity.The dominant wavelength, λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.The IV guarantee should be added ±15%.
INTENSITY BIN LIMIT
0.2W(IF=60mA)
| Bin Code | Min(Lm) | Max(Lm) |
| A | 18 | 20 |
| B | 20 | 22 |
COLOR BIN LIMIT
Color Area Code | X | Y | Color Area Code | X | Y | Color Area Code | X | Y |
| 29G | 0.4295 | 0.3941 | 41G | 0.3681 | 0.3627 | 62G | 0.3133 | 0.3214 |
| 0.4381 | 0.4120 | 0.3725 | 0.3825 | 0.3113 | 0.3350 | |||
| 0.4515 | 0.4168 | 0.3845 | 0.3900 | 0.3208 | 0.3444 | |||
| 0.4420 | 0.3985 | 0.3794 | 0.3706 | 0.3219 | 0.3296 |
