- Type:SMD LED
- Chip Material:InGaN
- Place of Origin:CN;GUA
- Certification:CE
- Certification:RoHS
- Emitting Color:RGB
- Power:0.2W
- Luminous Intensity:R:700mcd G:1600mcd B:500mcd
- Luminous Flux(lm):R:700mcd G:1600mcd B:500mcd
- Optical Attenuation(%):0.3
- Power Dissipation:0.2
- Viewing Angle(°):120
- Color Rendering Index(Ra):80
- Color Temperature:R:630nm G:530nm B:470nm
- Operating Temperature(℃):-30 - 80
- Storage Temperature(℃):0 - 40
- Brand Name:YLL

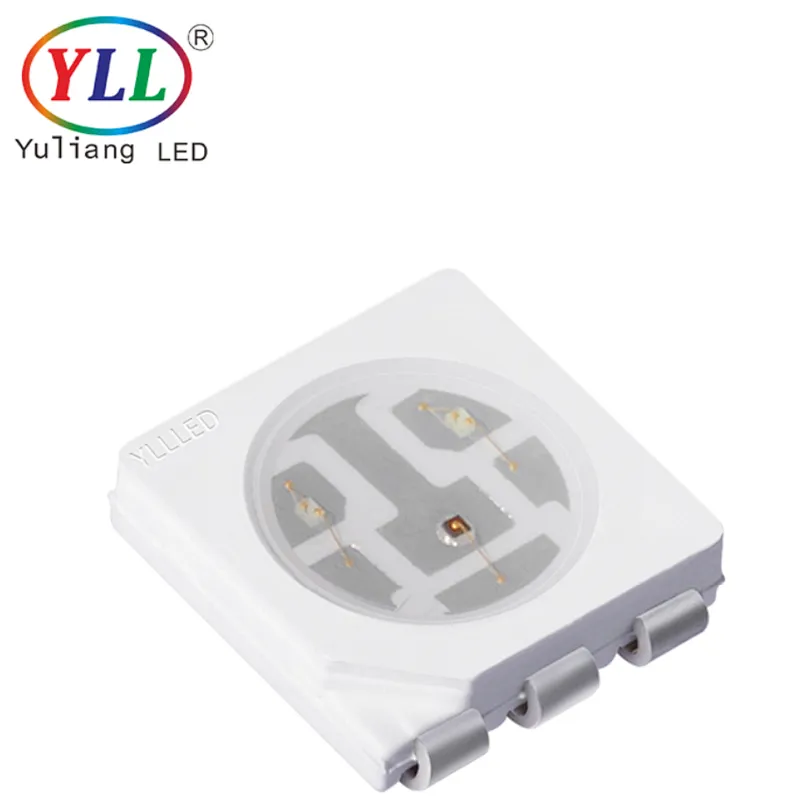

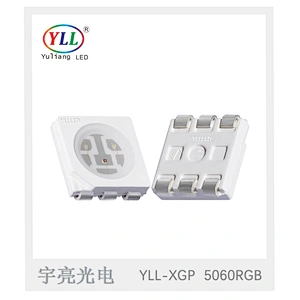

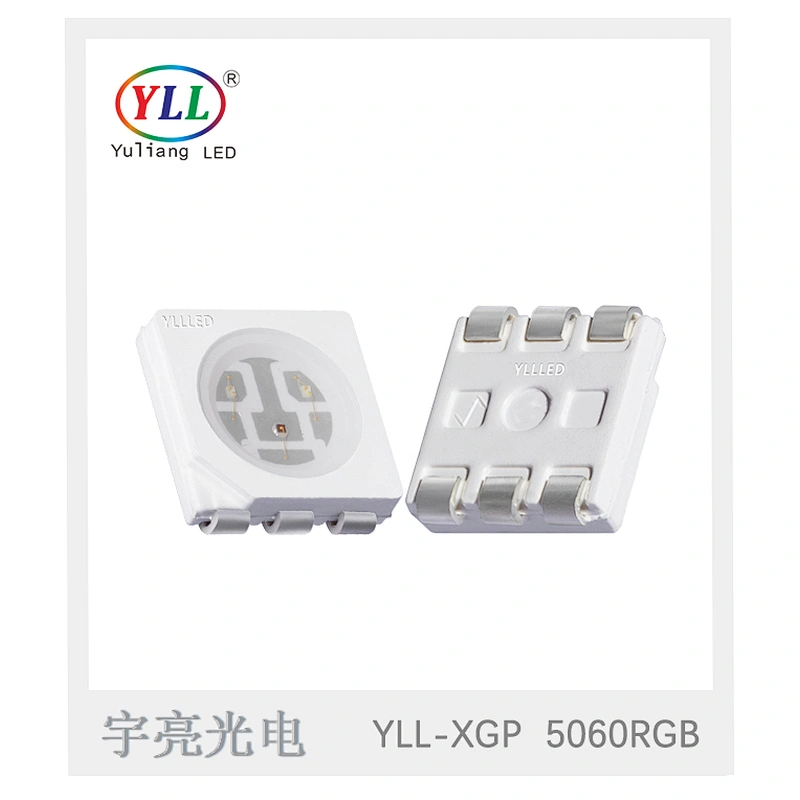

5050 rgb smd led datasheet dream color 6803 ic led strip light
| Product Type | 5050 |
| Power(W) | 0.2 |
| Emitting Color | RGB |
| Voltage(V) | R:2.0-2.4 G:3.0-3.4 B:3.0-3.4 |
| Color Temperature(K) | R:620-630nm G:515-530nm B:460-470nm |
| Brightness(lm) | R:500-700mcd G:1400-1600mcd B:300-500mcd |
| Current(mA) | R:20 G:20 B:20 |
| Beam Angle(°) | 120 |
| CRI(Ra) | 80-85 |
| Life Span(hour) | 50000 |
| Warranty | 2 years |
Feature:Anti-sulfuration,Widely application,High luminous efficiency

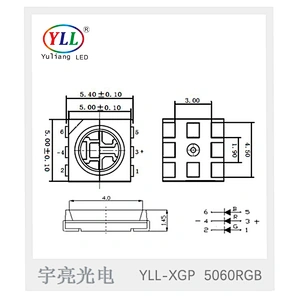

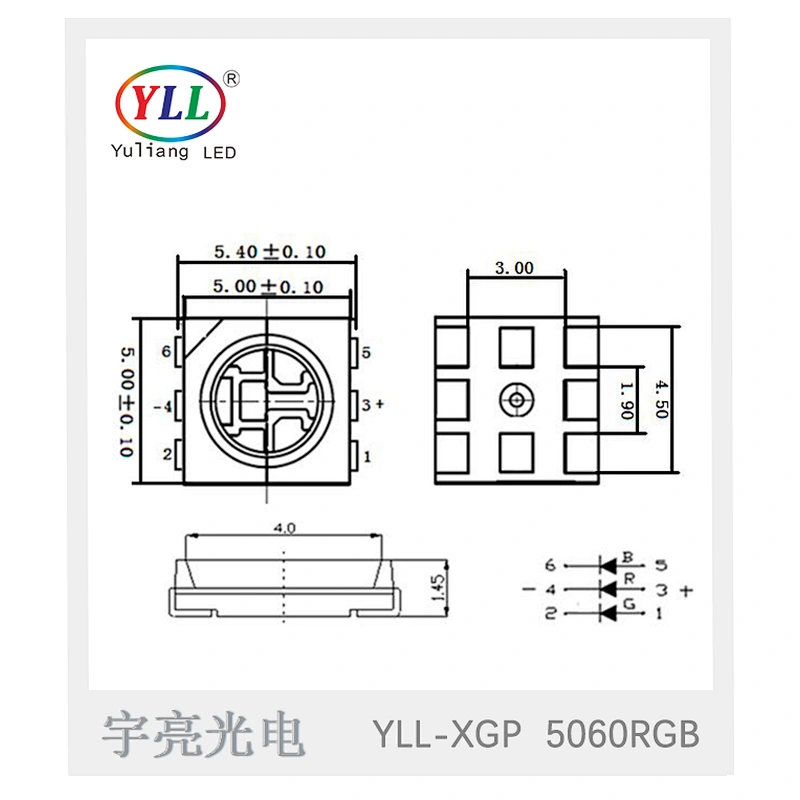

Package Dimensions:
Notes:
Tolerance is ± 0.25mm (.010”) unless otherwise noted.
Protruded resin under flange is 1.0mm(.04”) max.
Lead spacing is measured where the leads emerge from the package. Specifications are subject to change without notice.
Notes:
Luminous intensity is measured with a light sensor and filter combination that approximates the CIE (Commission International De L’Eclairage) eye-response curve.1/2 is the off-axis angle at which the luminous intensity is half the axial luminous and intensity.The dominant wavelength, λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.The IV guarantee should be added ±15%.
COLOR BIN LIMIT(IF=3×20mA)
Red
| Bin Code | Min(nm) | Max(nm) |
| A | 620 | 625 |
| B | 625 | 630 |
Green
| Bin Code | Min(nm) | Max(nm) |
| A | 515 | 520 |
| B | 520 | 525 |
| C | 525 | 530 |
Blue
| Bin Code | Min(nm) | Max(nm) |
| A | 460 | 465 |
| B | 465 | 470 |
Shenzhen YuLiang Optoelectronic Technology Co., Ltd was established in 2001, is a national high-tech enterprise. Factory is mainly engaged in R&D, production and sales of ultra high brightness red, green, blue, yellow, orange, purple, pink, white, warm white, golden yellow, RGB, RGBW etc, a full range of single core piranha led, multi core piranha led, 0.5W piranha led, and SMD series 3014 side view, 3014,3528, 2735,5730,5050 SMD LED lamp beads, widely used in LED auto lamp, LED outdoor lamps, indoor lighting, commercial lighting and LED advertising logo light source field.
