- Type:SMD LED
- Place of Origin:CN;GUA
- Color Temperature:2800-3200K
- Color Rendering Index(Ra):80
- Brand Name:YLL
- Model Number:YLL3014
- Power Dissipation:0
- Luminous Flux(lm):9-11
- Luminous Intensity:2700-3300mcd
- Storage Temperature(℃):0 - 40
- Optical Attenuation(%):0.5
- Viewing Angle(°):120
- Chip Material:InGaN
- Certification:CE
- Certification:RoHS
- Operating Temperature(℃):-20 - 40
- Power:0.1w
- Emitting Color:Warm White

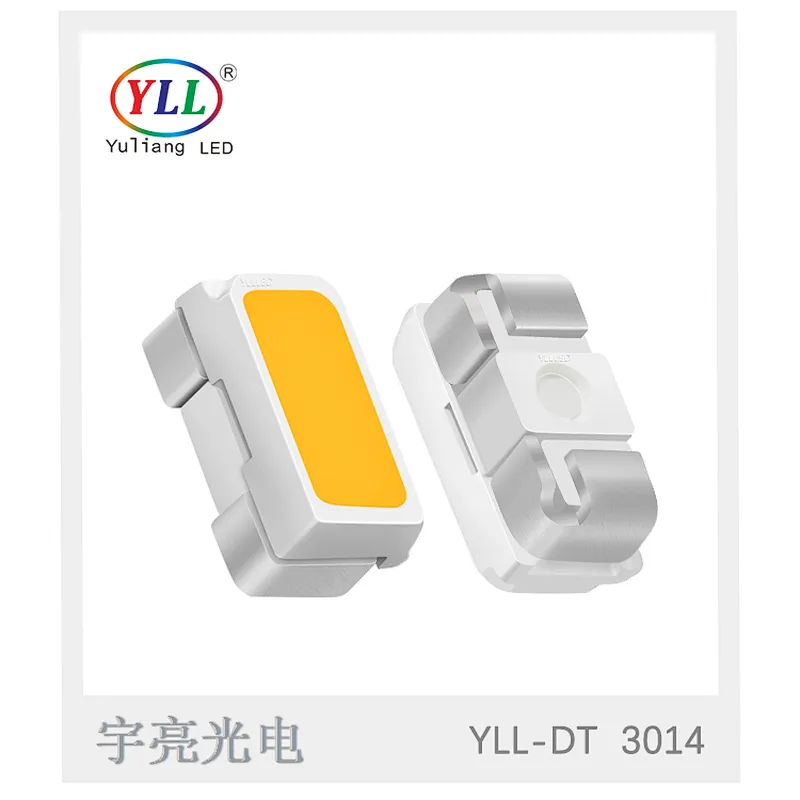

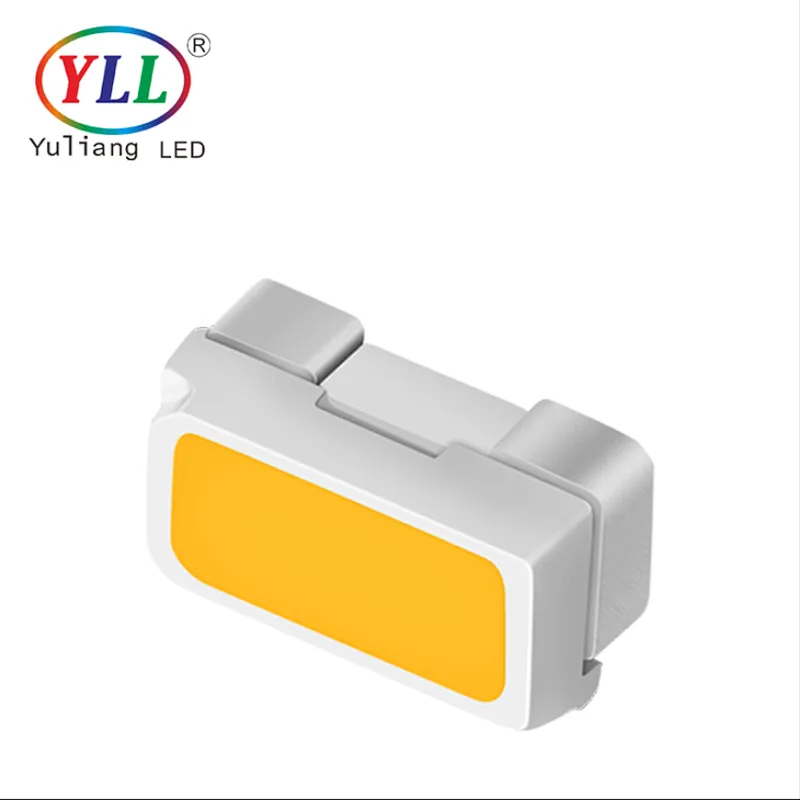

0.1w side emitting light diodes 3014 smd led chip
Product data | |
Emitting Color | Warm White |
Wavelength(nm)/CT(K) | 2800-3200K |
Luminous flux | 10-12Lm |
CRI | 75Ra |
View Angle | 120degrees |
Voltage | 2.8-3.4V |
Current | 30MA |
Lifespan | 50000 hours |
Warranty | 2 Years |

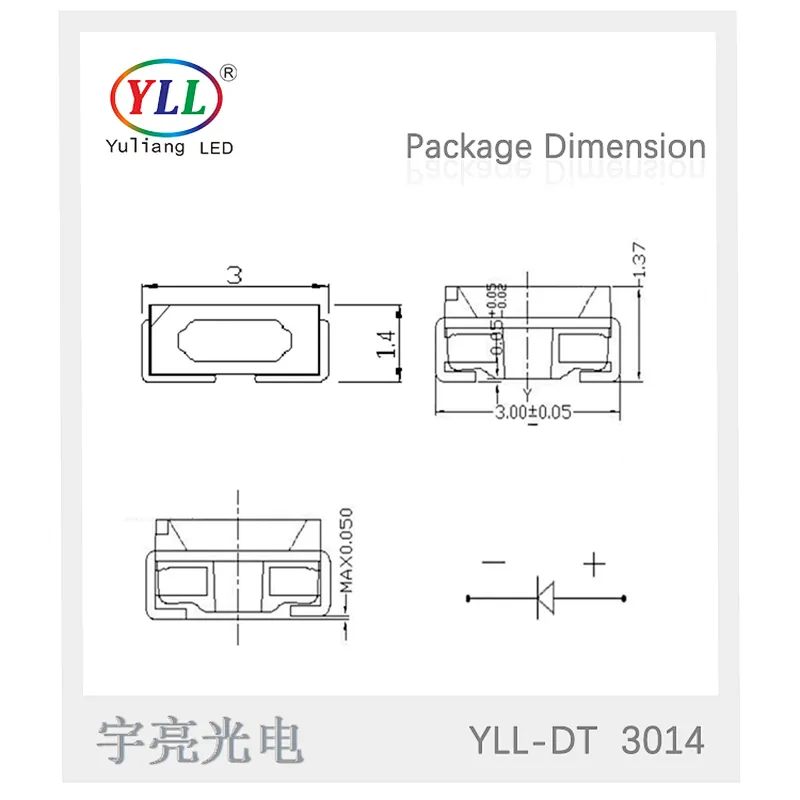

Size | 3.0*1.4mm |
Feature |
|
-Moisture-Proofing -Dead Lamp-Proofing -Sulfide-Proofing -Good Heat Dissipation -Low Light Decay | |
Application | |
-Flexible and Hard Strip Light -Guardrail Tube -Point Light Source -Module -LED Display | |
Absolute Maximum Ratings at TA=25℃
Electrical / Optical Characteristics at TA=25℃
Optical Characteristics
Product application:
Yuliang LED 3014 Side Light-Emitting SMD is widely applying for
Outdoor Point Light Source, Fence Tube,Wall Washer Light,Line Lamp,Intelligence home lighting etc
